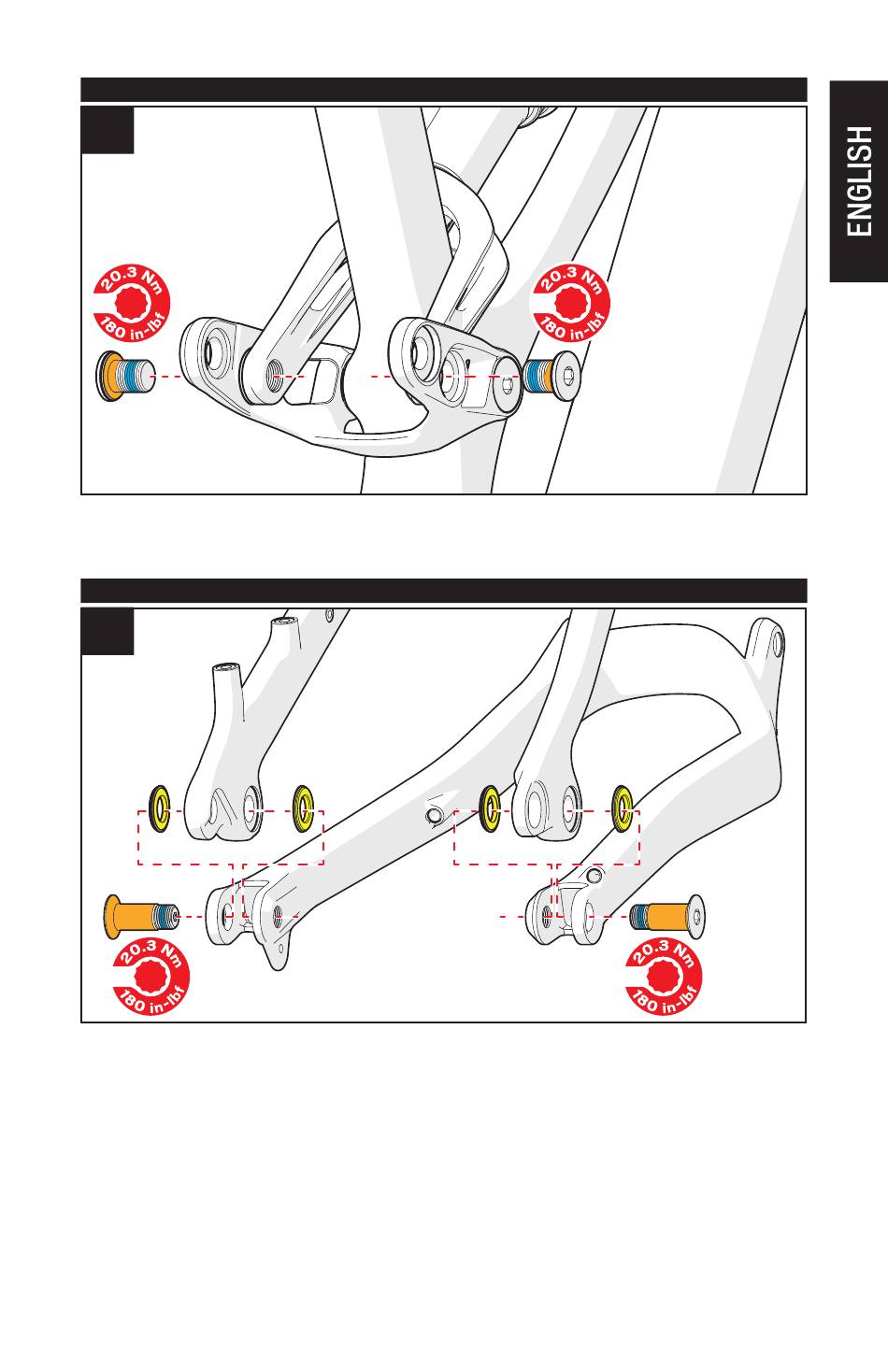

Fig. 9.4: Align the extension with the bearings, then insert the pivot bolts.
„
9.5
Fig. 9.5: Grease, then place all the outer Horst spacers against the Horst bearings (tapered surface against the
„
bearing).
Fig. 9.5: AIign the drive-side and non-drive side Horst pivot assemblies, then insert the pivot bolts.
„
EXTENSION @ LINK
HORST LINK (DROPOUT)
