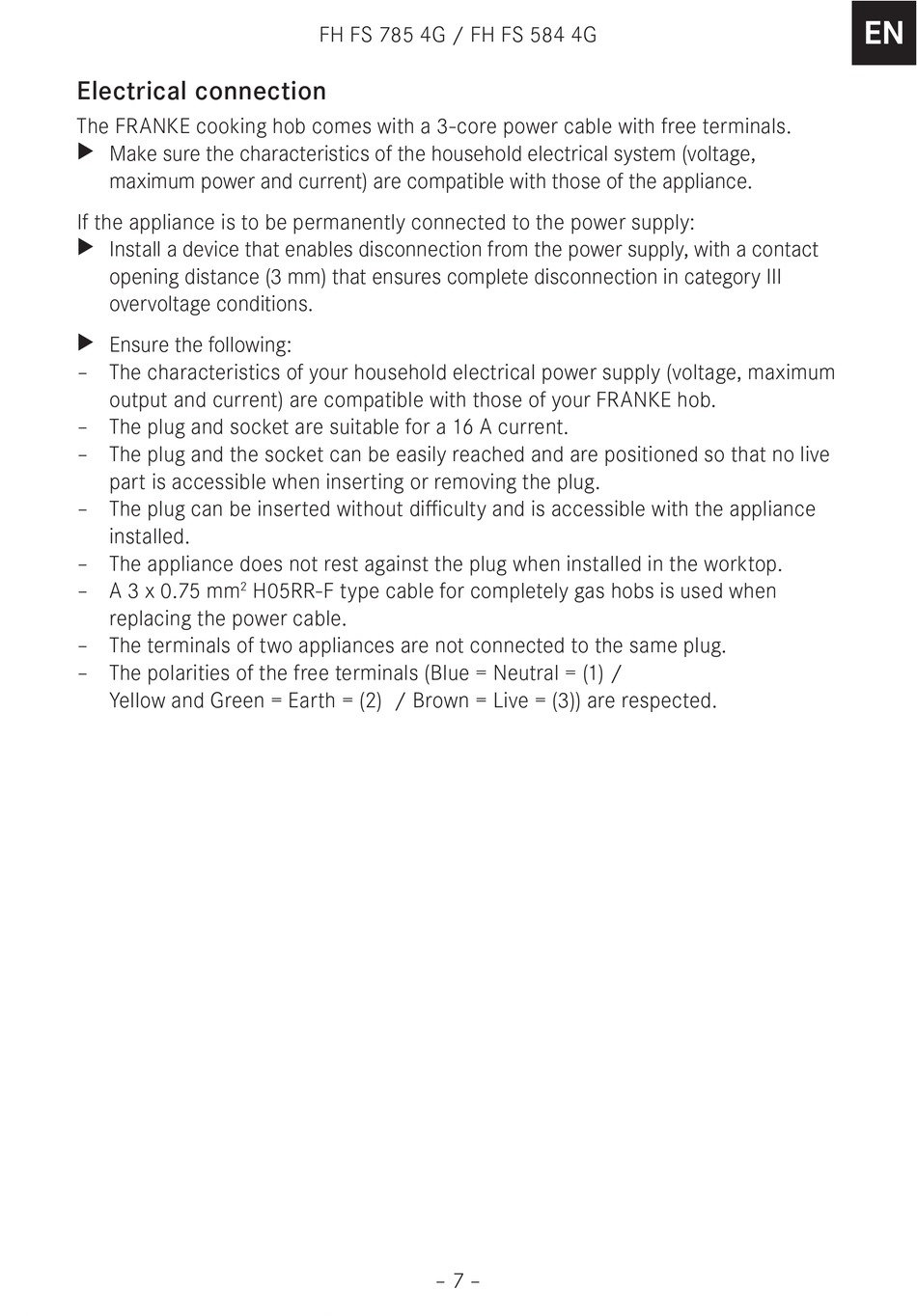

Electrical connection

The FRANKE cooking hob comes with a 3-core power cable with free terminals.
Make sure the characteristics of the household electrical system (voltage,
X X
maximum power and current) are compatible with those of the appliance.
If the appliance is to be permanently connected to the power supply:
Install a device that enables disconnection from the power supply, with a contact
X X
opening distance (3 mm) that ensures complete disconnection in category III
overvoltage conditions.
Ensure the following:
X X
– The characteristics of your household electrical power supply (voltage, maximum
output and current) are compatible with those of your FRANKE hob.
– The plug and socket are suitable for a 16 A current.
– The plug and the socket can be easily reached and are positioned so that no live
part is accessible when inserting or removing the plug.
– The plug can be inserted without difficulty and is accessible with the appliance
installed.
– The appliance does not rest against the plug when installed in the worktop.
– A 3 x 0.75 mm
2
replacing the power cable.
– The terminals of two appliances are not connected to the same plug.
– The polarities of the free terminals (Blue = Neutral = (1) /
Yellow and Green = Earth = (2) / Brown = Live = (3)) are respected.
FH FS 785 4G / FH FS 584 4G
H05RR-F type cable for completely gas hobs is used when
