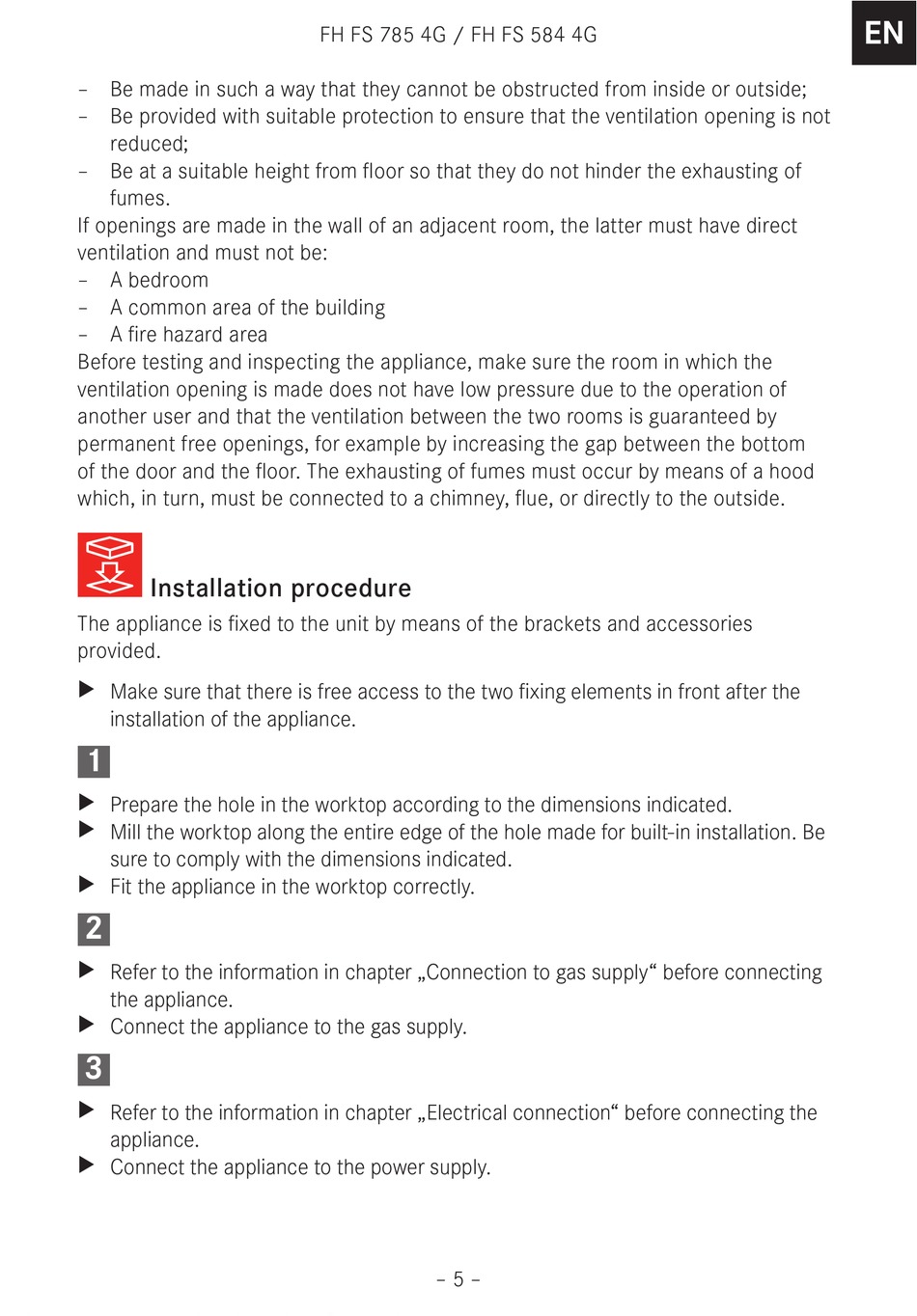

– Be made in such a way that they cannot be obstructed from inside or outside;
– Be provided with suitable protection to ensure that the ventilation opening is not
reduced;
– Be at a suitable height from floor so that they do not hinder the exhausting of
fumes.
If openings are made in the wall of an adjacent room, the latter must have direct
ventilation and must not be:
– A bedroom
– A common area of the building
– A fire hazard area
Before testing and inspecting the appliance, make sure the room in which the
ventilation opening is made does not have low pressure due to the operation of
another user and that the ventilation between the two rooms is guaranteed by
permanent free openings, for example by increasing the gap between the bottom
of the door and the floor. The exhausting of fumes must occur by means of a hood
which, in turn, must be connected to a chimney, flue, or directly to the outside.

Installation procedure

The appliance is fixed to the unit by means of the brackets and accessories
provided.
Make sure that there is free access to the two fixing elements in front after the
X X
installation of the appliance.
1
Prepare the hole in the worktop according to the dimensions indicated.
X X
Mill the worktop along the entire edge of the hole made for built-in installation. Be
X X
sure to comply with the dimensions indicated.
Fit the appliance in the worktop correctly.
X X
2
Refer to the information in chapter „Connection to gas supply" before connecting
X X
the appliance.
Connect the appliance to the gas supply.
X X
3
Refer to the information in chapter „Electrical connection" before connecting the
X X
appliance.

Connect the appliance to the power supply.

X X
FH FS 785 4G / FH FS 584 4G
– 5 –
EN
