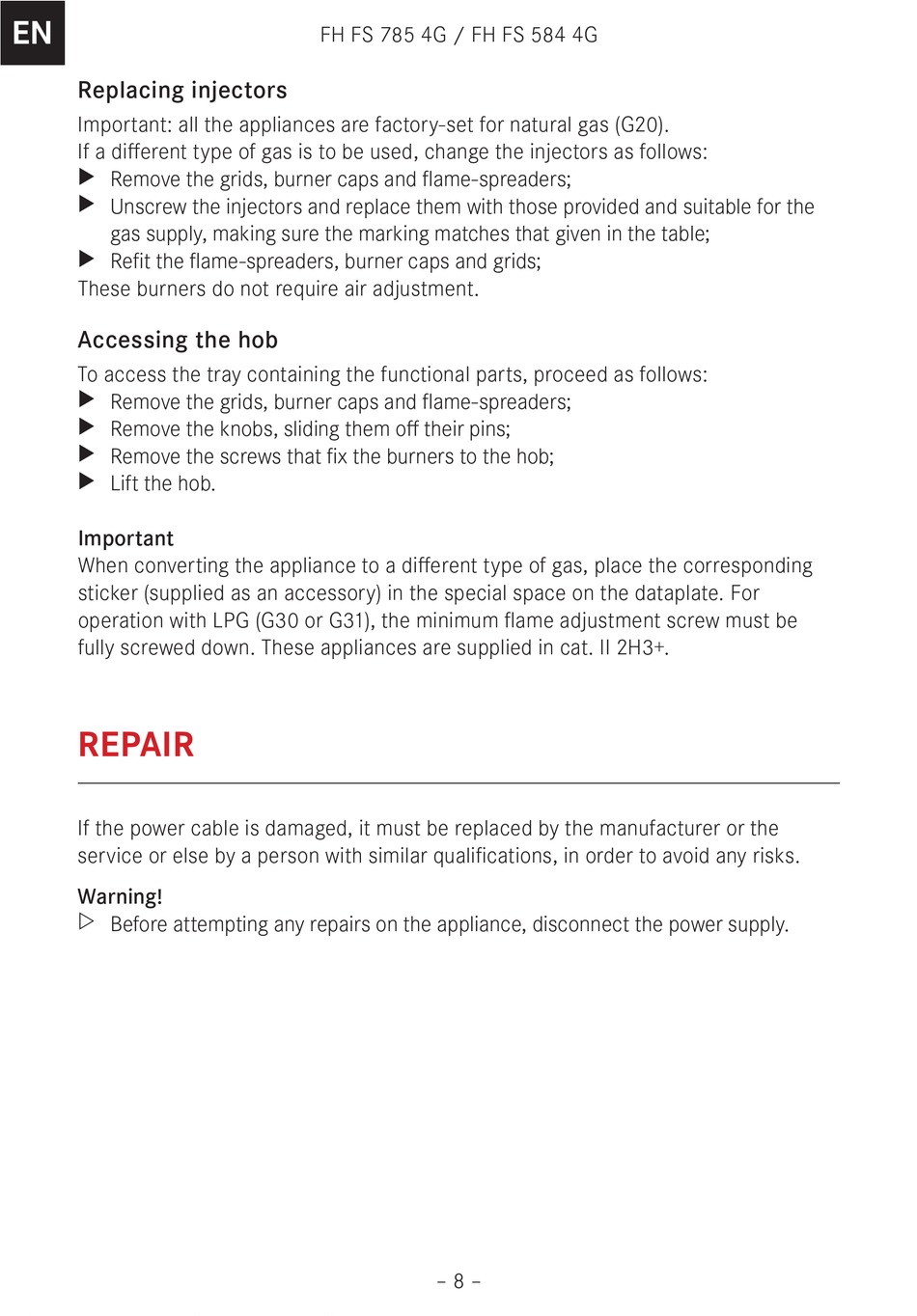

Franke Frames FH FS 785 4G Installationsanleitung Seite 8

EN
Replacing injectors
Important: all the appliances are factory-set for natural gas (G20).
If a different type of gas is to be used, change the injectors as follows:
Remove the grids, burner caps and flame-spreaders;
X X
Unscrew the injectors and replace them with those provided and suitable for the
X X
gas supply, making sure the marking matches that given in the table;
Refit the flame-spreaders, burner caps and grids;
X X
These burners do not require air adjustment.
Accessing the hob
To access the tray containing the functional parts, proceed as follows:
Remove the grids, burner caps and flame-spreaders;
X X
Remove the knobs, sliding them off their pins;
X X
Remove the screws that fix the burners to the hob;
X X
Lift the hob.
X X
Important
When converting the appliance to a different type of gas, place the corresponding
sticker (supplied as an accessory) in the special space on the dataplate. For
operation with LPG (G30 or G31), the minimum flame adjustment screw must be
fully screwed down. These appliances are supplied in cat. II 2H3+.
RepAIR
If the power cable is damaged, it must be replaced by the manufacturer or the
service or else by a person with similar qualifications, in order to avoid any risks.
Warning!
Before attempting any repairs on the appliance, disconnect the power supply.
Z X
FH FS 785 4G / FH FS 584 4G
– 8 –
