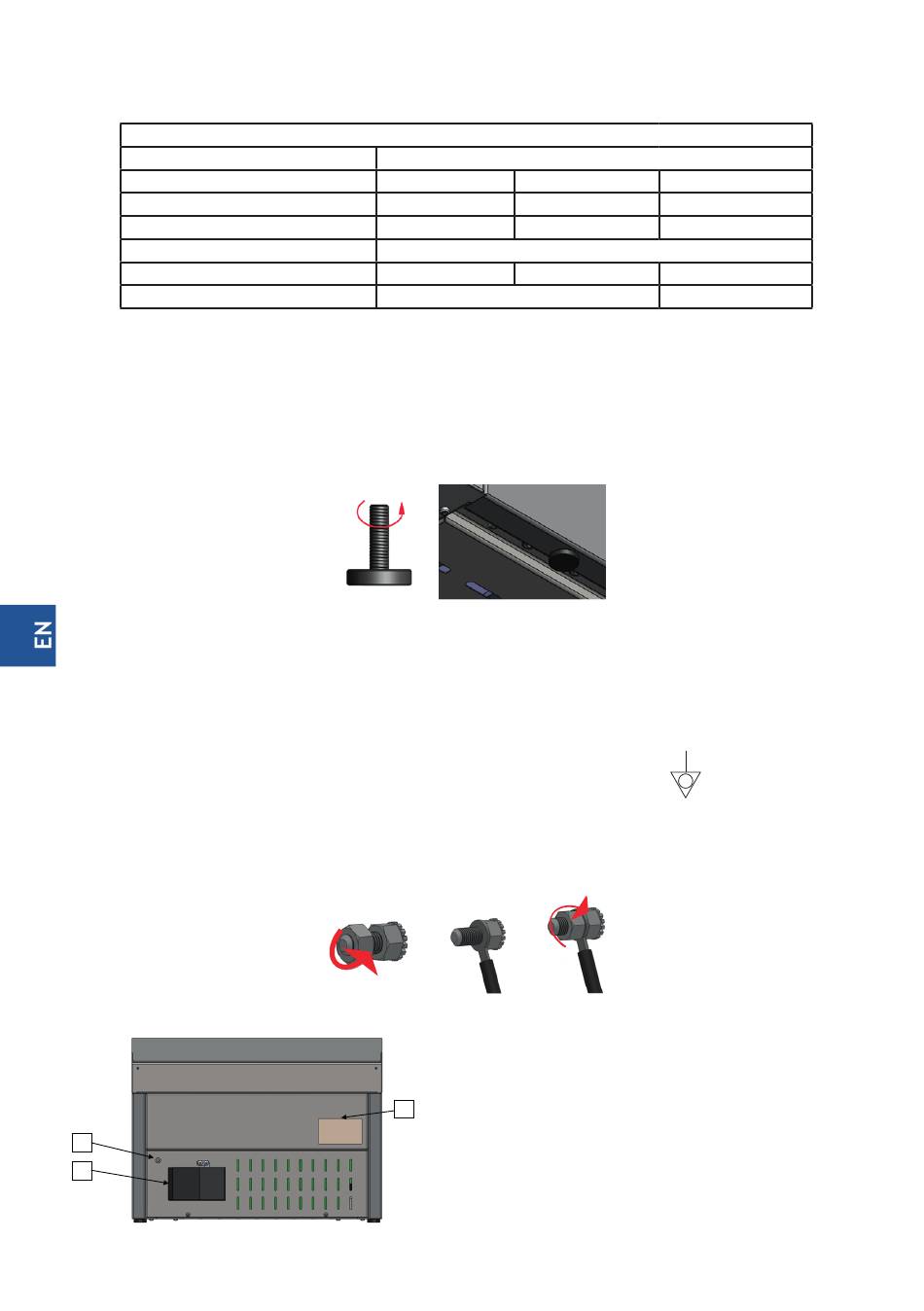

3. TECHNICAL DATA OF THE DEVICE
Accessory of the device's front (page 2):
1 - Control panel, 2 - Orange lamp (indicates active process of heating), 3 - Heating panel 2,6 kW , 4 - Operating button
Type
Model
The amount of heating panels
Total power
Power supply
External dimensions
Power cord
4. INSTALLATION
• After unpacking, there is a need to check if the device has any visible damages. If the device has been broken during
transport, it cannot be plugged!
• Before the fi rst start, you must eliminate plastic coverage from the device. You must clean extensial surfaces using a cloth
soaked with warm water with the addition of degreaser,
and then you must dry it. Do not use any resources which could cause surface scratching.
• You must set the cooker on tabletop or a stable and level foundation (it is recommended to use the foundations pro-
duced in Stalgast Radom Sp. z o.o.). When required you can additionally level the cooker with the help of adjusted legs
placed under the device casing. (Fig. 5)
Conditions for connection to mains:
• You must check if voltage in grid is equal to the grid indicated on device's rating plate (Fig. 7 Pos. 3)
• To plug the device in electricity network you must perform plugging of the power cord in the terminal box placed on the
back wall of the device. (Fig. 7 Pos. 2). The power cord with a plug IS NOT the part of the set and you must buy
it.
• You must necessarily join the device to the installation of equalising electrical potentials with the help of equipotential
bolt (Fig. 7 Pos. 1) placed in the back of the device. It is marked by the following symbol:
To join the device to the installation of equalising electrical potentials, you must:
• Remove the nut from the bolt
• Introduce equpotential's cable
• Tighten the nut until it stops
• You must plug the second end of equipotential cable in the countervailing rail.
Figure 6. Connection of the device with installation of equalising electrical potentials.
1
2
Figure 7. The view from the back, the device 9705000. Devices 9706000 and 9707000 are equipped likewise.
Technical parameters of the device
ADJUSTABLE ELECTRIC COOKER
9705000
2
5200 W
400x700x250 mm
5x2,5 mm
Figure 5. Device levelling
The elements of device's rear panel:
3
1. Equpotential's bolt
2. The terminal box
3. The rating plate
- 12 -
9706000
4
10400 W
400 V, 50Hz
800x700x250 mm
1200x700x250 mm
2
9707000
6
15600 W
5x4 mm
2
