Step 3: Anchor outdoor unit
The outdoor unit can be anchored
to the ground or to a wall-mounted
bracket.
UNIT MOUNTING DIMENSIONS
The following is a list of different
outdoor unit sizes and the distance
between their mounting feet.
Prepare the installation base of the
unit according to the dimensions
below.
Model
MUPR-06-H6
MUPR-12-H6
MUPR-18-H6
MUPR-24-H6
If you will install the unit on the ground or
on a concrete mounting platform, do the
following:
1. Mark the positions for four expansion bolts
based on dimensions in the Unit Mounting
Dimensions chart.
2. Pre-drill holes for expansion bolts.
3. Clean concrete dust away from holes.
4. Place a nut on the end of each expansion bolt.
5. Hammer expansion bolts into the pre-drilled
holes.
Air inlet
D
Outdoor Unit Dimensions (mm)
W x H x D
770 x 555 x 300
800 x 554 x 333
800 x 554 x 333
845 x 702 x 363
6. Remove the nuts from expansion bolts, and
7. Put washer on each expansion bolt, then
8. Using a wrench, tighten each nut until snug.
86
Air inlet
B
Air outlet

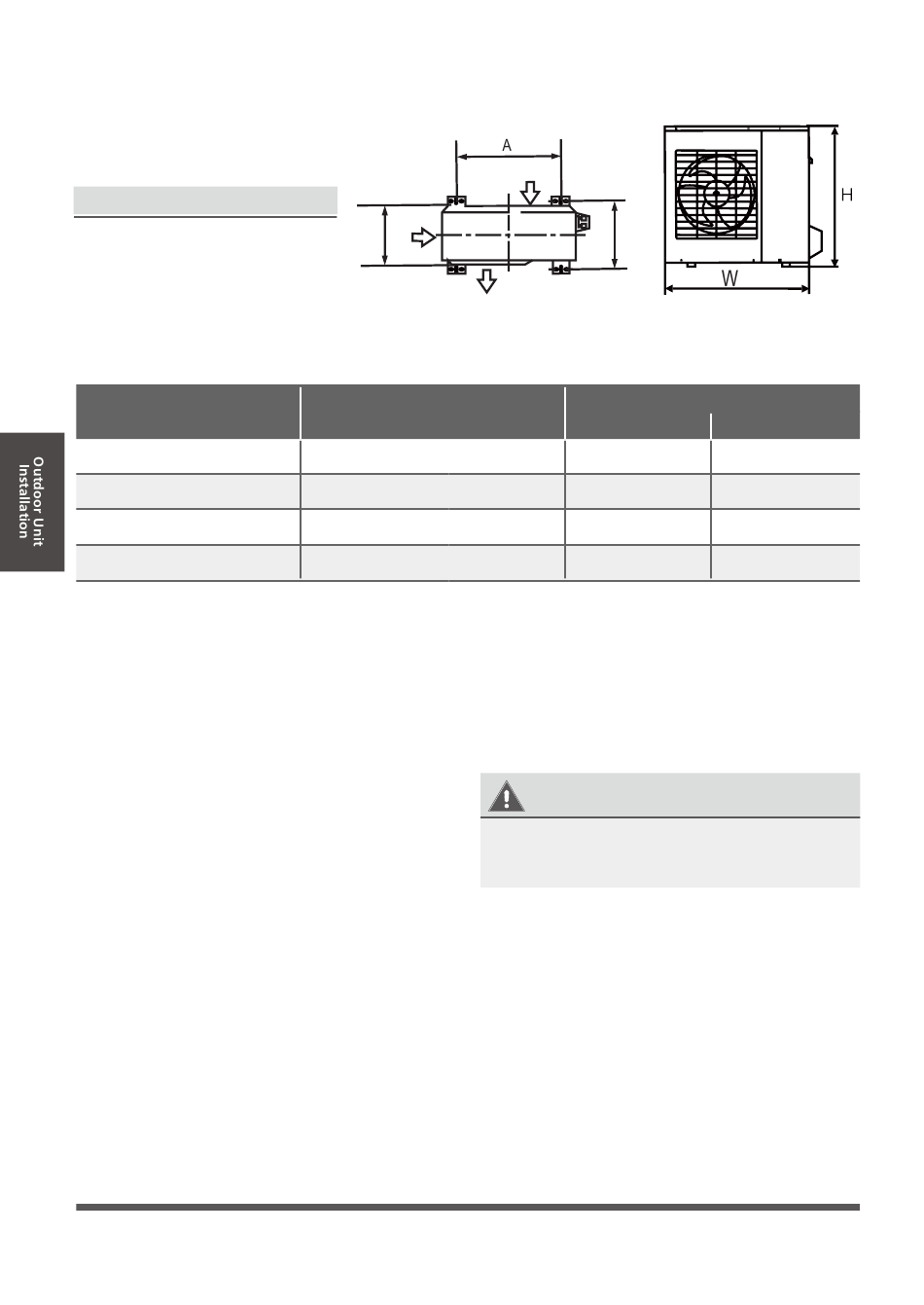

Fig. 4.5

Mounting Dimensions

Distance A (mm)
487
514
514
540
place outdoor unit on bolts.
replace the nuts.
WARNING
WHEN DRILLING INTO CONCRETE, EYE
PROTECTION IS RECOMMENDED AT ALL
TIMES.
A
Distance B (mm)
298
340
340
350
