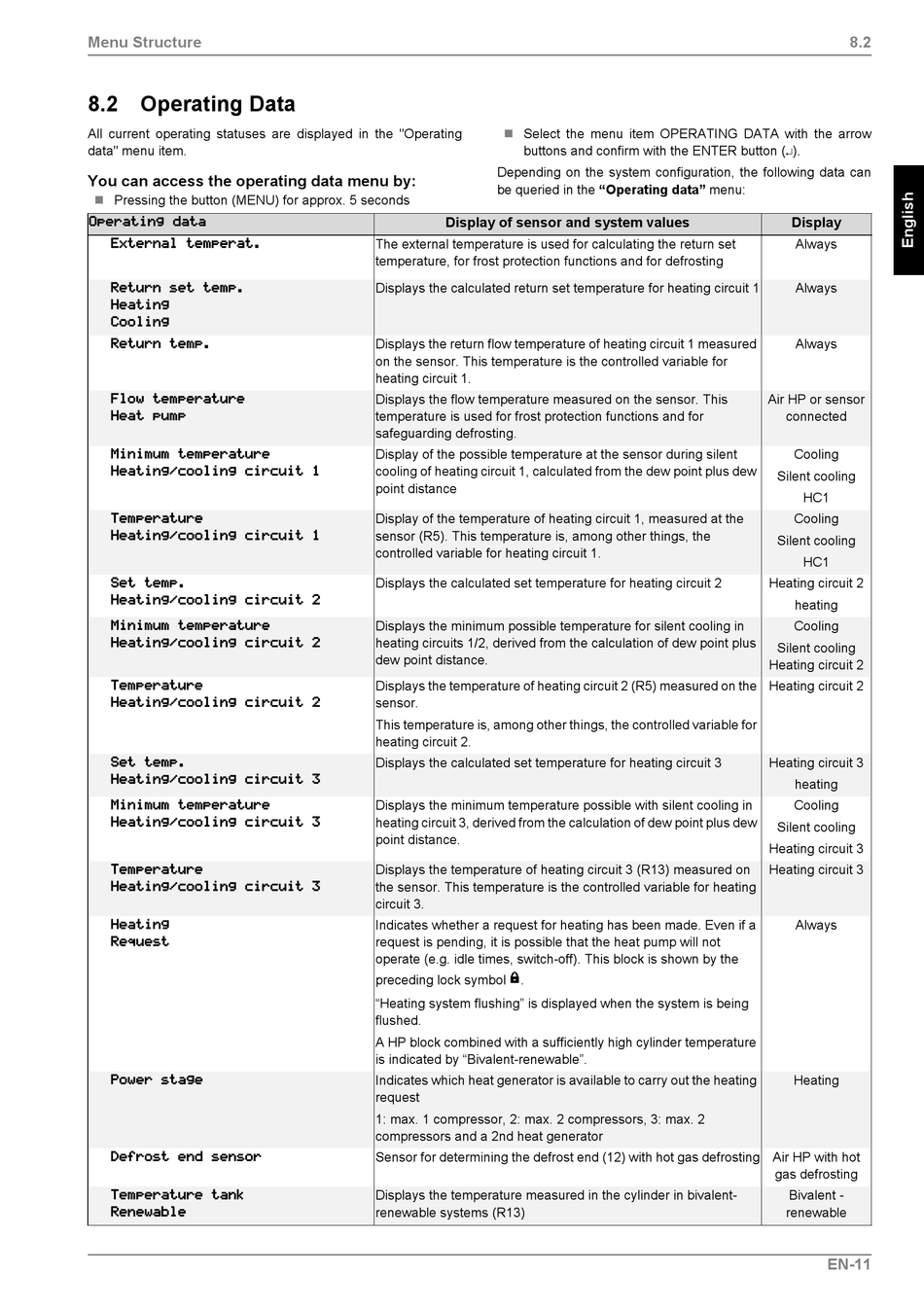

8.2 Operating Data

All current operating statuses are displayed in the "Operating
data" menu item.
You can access the operating data menu by:
 Pressing the button (MENU) for approx. 5 seconds






























Select the menu item OPERATING DATA with the arrow

buttons and confirm with the ENTER button (
Depending on the system configuration, the following data can
be queried in the "Operating data" menu:
Display of sensor and system values
The external temperature is used for calculating the return set
temperature, for frost protection functions and for defrosting
Displays the calculated return set temperature for heating circuit 1
Displays the return flow temperature of heating circuit 1 measured
on the sensor. This temperature is the controlled variable for
heating circuit 1.
Displays the flow temperature measured on the sensor. This
temperature is used for frost protection functions and for
safeguarding defrosting.
Display of the possible temperature at the sensor during silent
cooling of heating circuit 1, calculated from the dew point plus dew
point distance
Display of the temperature of heating circuit 1, measured at the
sensor (R5). This temperature is, among other things, the
controlled variable for heating circuit 1.
Displays the calculated set temperature for heating circuit 2
Displays the minimum possible temperature for silent cooling in
heating circuits 1/2, derived from the calculation of dew point plus
dew point distance.
Displays the temperature of heating circuit 2 (R5) measured on the
sensor.
This temperature is, among other things, the controlled variable for
heating circuit 2.
Displays the calculated set temperature for heating circuit 3
Displays the minimum temperature possible with silent cooling in
heating circuit 3, derived from the calculation of dew point plus dew
point distance.
Displays the temperature of heating circuit 3 (R13) measured on
the sensor. This temperature is the controlled variable for heating
circuit 3.
Indicates whether a request for heating has been made. Even if a
request is pending, it is possible that the heat pump will not
operate (e.g. idle times, switch-off). This block is shown by the

preceding lock symbol .
"Heating system flushing" is displayed when the system is being
flushed.
A HP block combined with a sufficiently high cylinder temperature
is indicated by "Bivalent-renewable".
Indicates which heat generator is available to carry out the heating
request
1: max. 1 compressor, 2: max. 2 compressors, 3: max. 2
compressors and a 2nd heat generator
Sensor for determining the defrost end (12) with hot gas defrosting Air HP with hot
Displays the temperature measured in the cylinder in bivalent-
renewable systems (R13)
8.2
).

Display
Always
Always
Always
Air HP or sensor
connected
Cooling
Silent cooling
HC1
Cooling
Silent cooling
HC1
Heating circuit 2
heating
Cooling
Silent cooling
Heating circuit 2
Heating circuit 2
Heating circuit 3
heating
Cooling
Silent cooling
Heating circuit 3
Heating circuit 3
Always
Heating
gas defrosting
Bivalent -
renewable
EN-11
