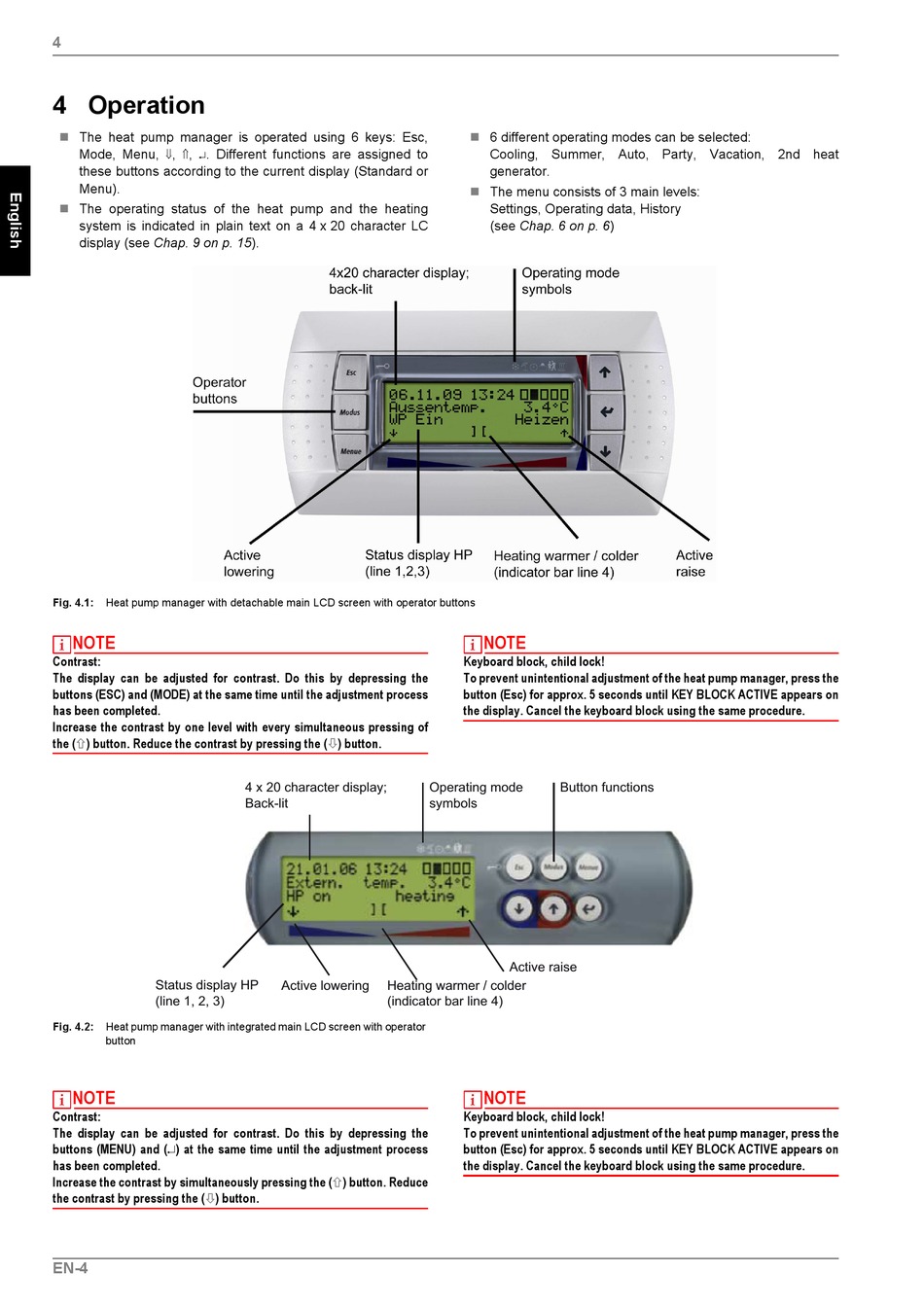

4 Operation

 The heat pump manager is operated using 6 keys: Esc,
Mode, Menu, , , . Different functions are assigned to
  
these buttons according to the current display (Standard or
Menu).
 The operating status of the heat pump and the heating
system is indicated in plain text on a 4 x 20 character LC
display (see Chap. 9 on p. 15).
Fig. 4.1: Heat pump manager with detachable main LCD screen with operator buttons
NOTE
Contrast:
The display can be adjusted for contrast. Do this by depressing the
buttons (ESC) and (MODE) at the same time until the adjustment process
has been completed.
Increase the contrast by one level with every simultaneous pressing of
the () button. Reduce the contrast by pressing the () button.
Fig. 4.2: Heat pump manager with integrated main LCD screen with operator
button
NOTE
Contrast:
The display can be adjusted for contrast. Do this by depressing the
buttons (MENU) and () at the same time until the adjustment process
has been completed.
Increase the contrast by simultaneously pressing the () button. Reduce
the contrast by pressing the () button.
EN-4
 6 different operating modes can be selected:
Cooling, Summer, Auto, Party, Vacation, 2nd heat
generator.
 The menu consists of 3 main levels:
Settings, Operating data, History
(see Chap. 6 on p. 6)
NOTE
Keyboard block, child lock!
To prevent unintentional adjustment of the heat pump manager, press the
button (Esc) for approx. 5 seconds until KEY BLOCK ACTIVE appears on
the display. Cancel the keyboard block using the same procedure.
NOTE
Keyboard block, child lock!
To prevent unintentional adjustment of the heat pump manager, press the
button (Esc) for approx. 5 seconds until KEY BLOCK ACTIVE appears on
the display. Cancel the keyboard block using the same procedure.
