All operating elements and connections described
GB
can be found on the fold-out page 3.
1

Operating Elements and Connections

1.1 Camera

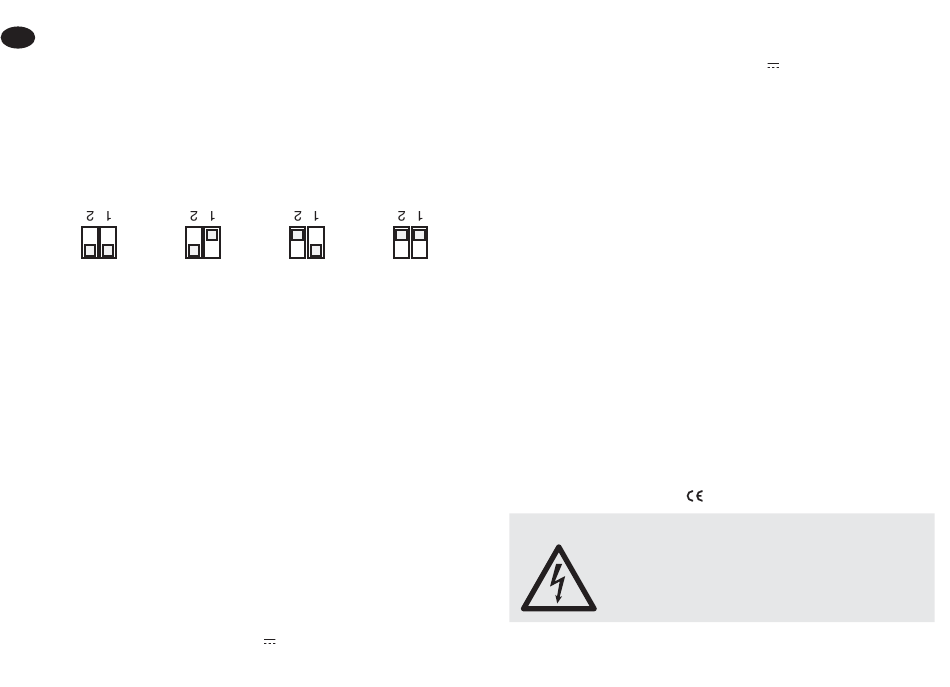

1 Channel switches
Channel 1
2.414 GHz
2 Light sensor, switches on the IR LEDs (3) in case
the illumination is too poor and switches the camera
to black-and-white reproduction
3 Infrared light diodes (IR LEDs)
4 Sunshield
5 Front housing sleeve, can be screwed off for chan-
nel adjustment
6 Antenna connection (SMA jack)
7 Transmitting antenna
8 Camera support
9 Low voltage inline jack for connection of the sup-
plied camera power supply unit
10 Low voltage plug (3.5/1.35 mm) of the camera
power supply unit (12 V )
10
Channel 2 Channel 3
2.432 GHz 2.450 GHz
1.2 Receiver
11 Plug-in power supply unit (8 V ) for the receiver
12 Reception antenna
13 Antenna connection (SMA jack)
14 Button for manual channel selection
15 LEDs to indicate the channel received
16 DIP switches for the operating mode
Switches 1 – 4: The automatic channel selection will
switch between the channels of which the switches
are set to ON; the other channels will be skipped.
Channel 4
Switch M/L: To switch between manual channel
2.468 GHz
selection (M) and automatic channel selection (L)
17 Connection jack DC8V for the power supply unit
(11) of the receiver
18 Jack A/V for the audio/video output
2

Safety Notes

The units (camera, receiver, and power supply units)
correspond to all required directives of the EU and are
therefore marked with
WARNING The power supply units are supplied with
Please observe the following items in any case:
.
hazardous mains voltage
Leave servicing to skilled personnel only.
In expert handling may cause an electric
shock hazard.
(230 V~).
