1 2
1
INPUT Ch1/Mono:
Balanceret XLR-indgang
2
INPUT Ch2:
Balanceret XLR-indgang
3
OUTPUT Ch1:
Balanceret XLR-udgang
4
OUTPUT Ch2:
Balanceret XLR-udgang
5
OUTPUT Ch3:
Balanceret XLR-udgang
6
OUTPUT Ch4:
Balanceret XLR-udgang
7
COM:
RS232 - kun til softwareopdateringer
8
IEC Power:
Indgang til IEC-netledning
3 4 5 6
7
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
XLR Wiring
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)

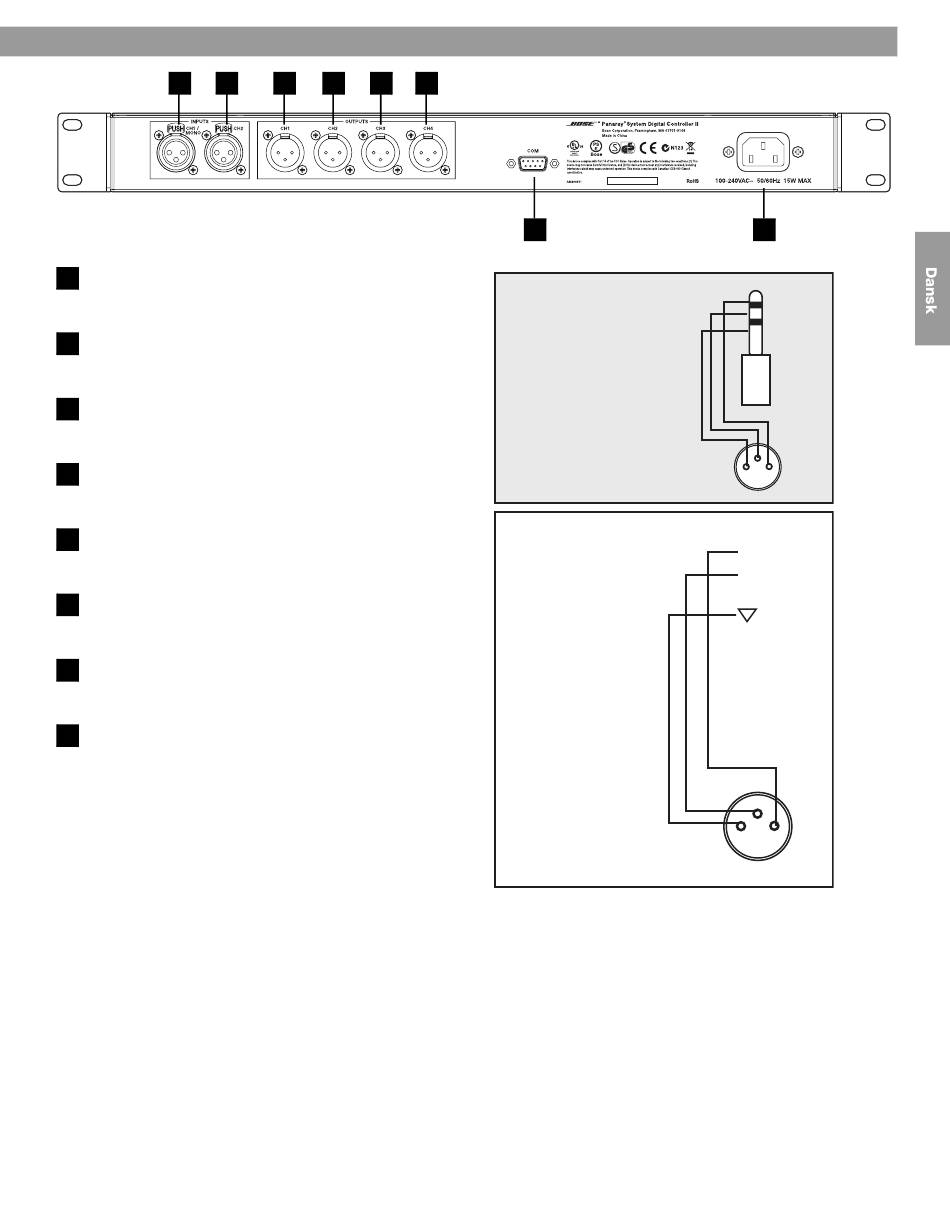

Bagpanel
8
TIP
RING
GND
3
1 2
+ Hot
- Cold
Ground
3
1 2
5
