Setups
Bass Array Preset Bank:

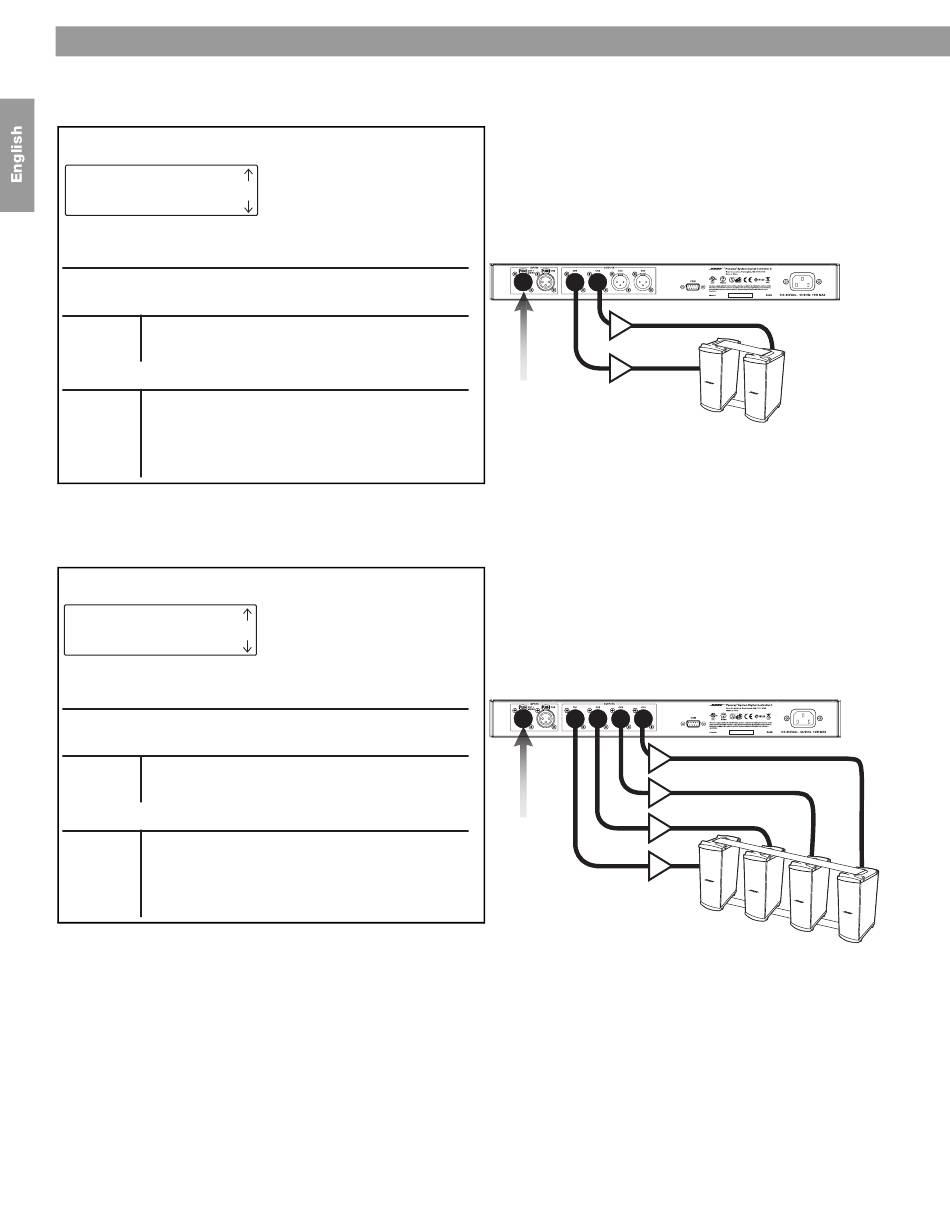

Example 1: 2x Endfire Array
®
PANARAY System Digital Controller Display
Bass Array
MB4 2XEF180Hz
Preset
MB4 2X Endfire Bass Array
Controller Inputs
CH 1/Mono Mono from mixer
CH 2 No input
Controller Default Output Routing
Ch 1 Ch 2
Routing MB4 (1) MB4 (2)
Mono Mono
Delay On On
Example 2: 4x Endfire Array
®
PANARAY System Digital Controller Display
Bass Array
MB4 4XEF180Hz
Preset
MB4 2X Endfire Bass Array
Controller Inputs
CH 1/Mono Mono from mixer
CH 2 No input
Controller Default Output Routing
Ch 1 Ch 2
Routing MB4 (1) MB4 (2)
Mono Mono
Delay On On
10
Presets designed for Bass Array operation
Ch 3 Ch 4
N/A N/A
Off Off
Ch 3 Ch 4
MB4 (3) MB4 (4)
Mono Mono
On On
Mono from
mixer
Mono from
mixer
