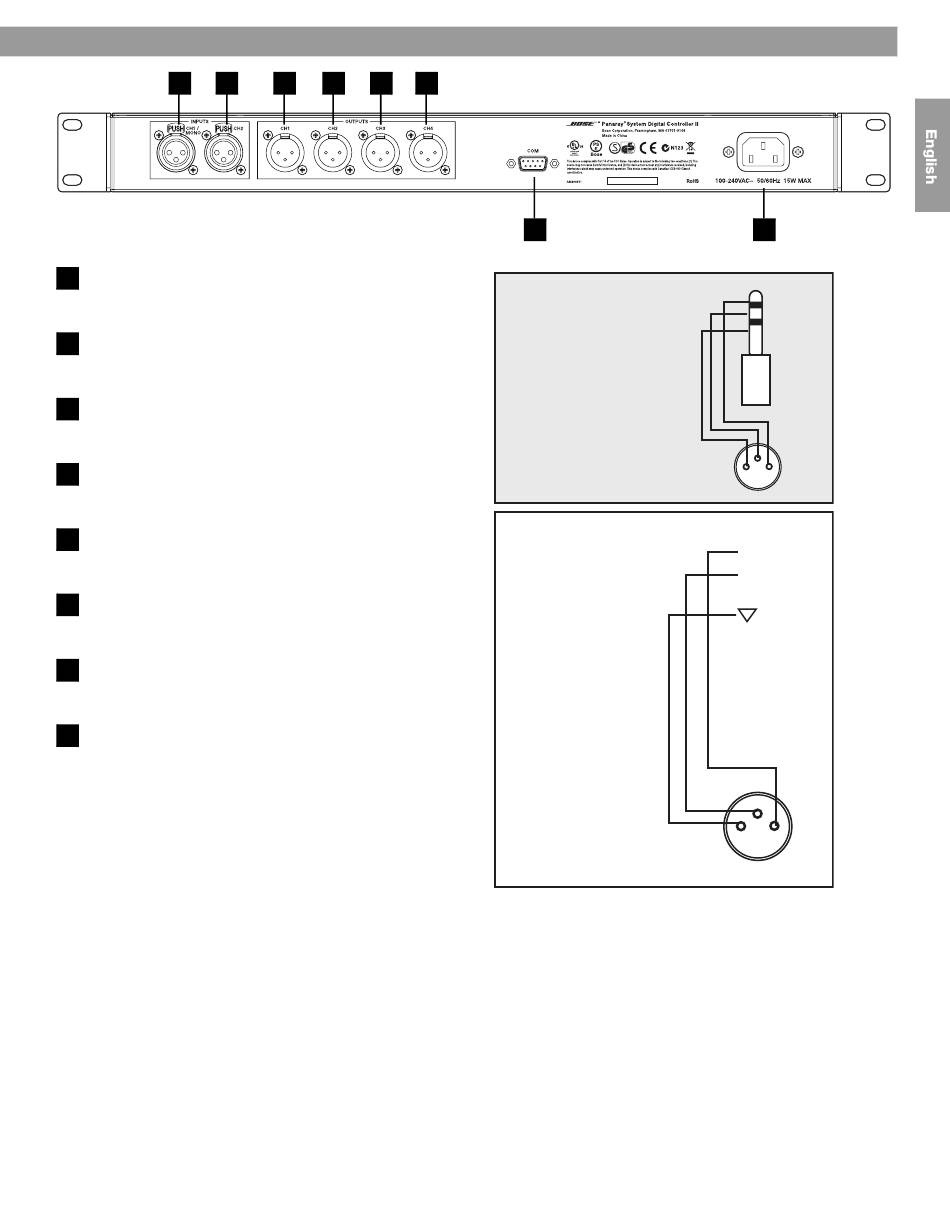

Rear Panel - Bose Panaray System Digital Controller II Bedienungsanleitung

1 2
1
INPUT Ch1/Mono:
Balanced XLR Input
2
INPUT Ch2:
Balanced XLR Input
3
OUTPUT Ch1:
Balanced XLR Output
4
OUTPUT Ch2:
Balanced XLR Output
5
OUTPUT Ch3:
Balanced XLR Output
6
OUTPUT Ch4:
Balanced XLR Output
7
COM:
RS232 - for software updates only
8
IEC Power:
IEC power cord input
3 4 5 6
7
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
XLR Wiring
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)

Rear Panel

8
TIP
RING
GND
3
1 2
+ Hot
- Cold
Ground
3
1 2
5
