2.5.4 SPEAKER CONNECTIONS

Note: The recommended speaker impedance for use with MusiQ is 8 ohms.
The minimum impedance for use with MusiQ is 4 ohms.
Use the supplied quick-fit terminals for all speaker cable connections.
Strip back each conductor's outer insulation by 6mm, insert bare wire into quick fit plug and secure using the screw
terminal fixing. Take care to ensure proper polarity (note "+" is normally identified by a fine rib running along one edge).
BE CAREFUL AND BE PATIENT. It is essential to have the speakers correctly connected for maximum system enjoyment.
"Out of phase" loudspeaker hookups (where one speaker in a stereo pair is inadvertently connected "+" to "-" and vice
versa) may not be immediately noticeable but will not be as pleasing in the long term as a properly connected stereo pair.

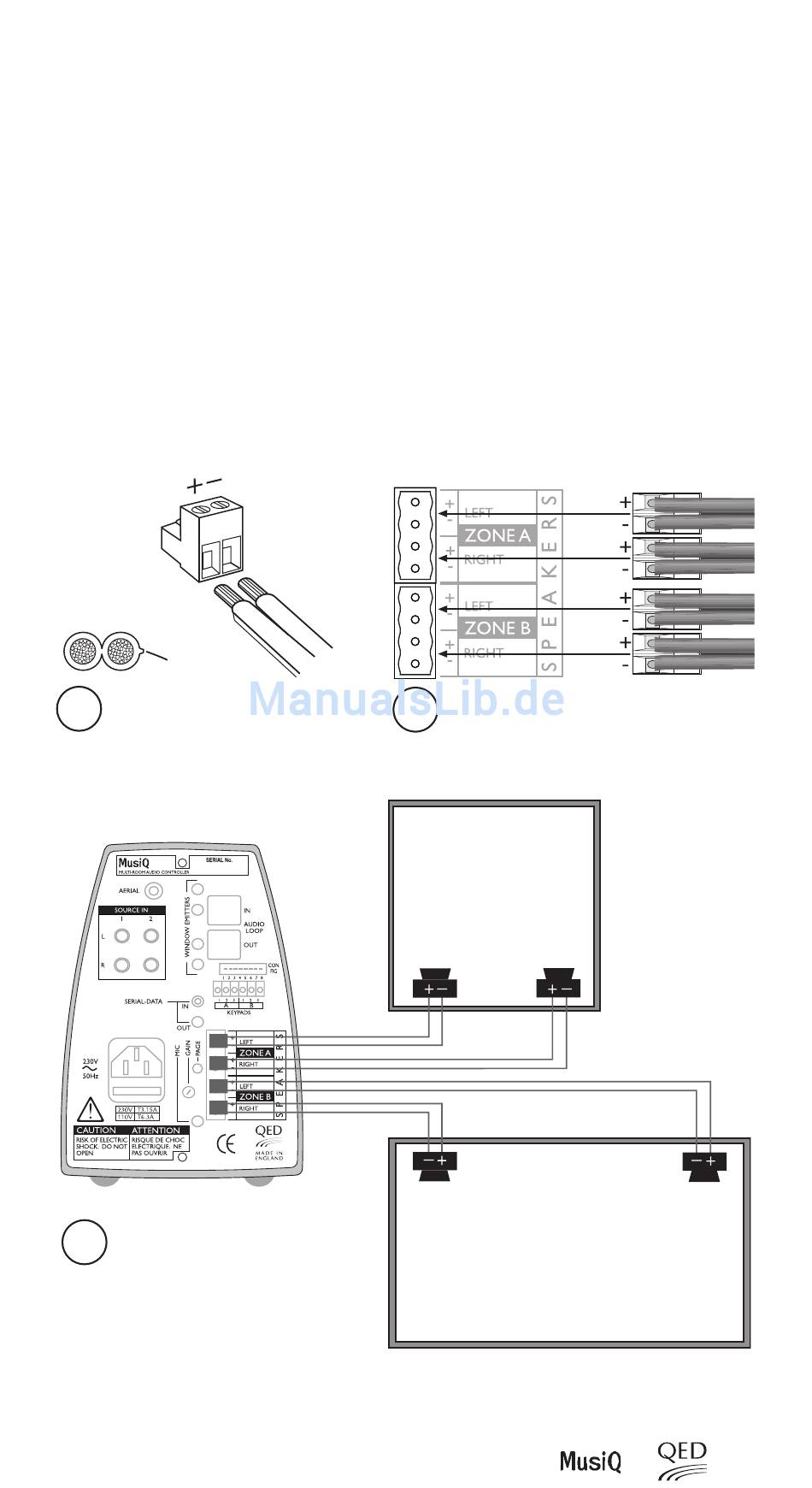

Route speaker cables from each remote Zone to the rear of the MusiQ and connect as follows:
Positive
USING QUICK FIT PLUGS SUPPLIED
1
CONNECT UP SPEAKERS AS SHOWN
3
Installation
Speaker Cable
2
LEFT
RIGHT
ROOM ONE
RIGHT
ROOM TWO
LEFT
07
