3.2 CONFIGURING MULTIPLE MUSIQ RFS

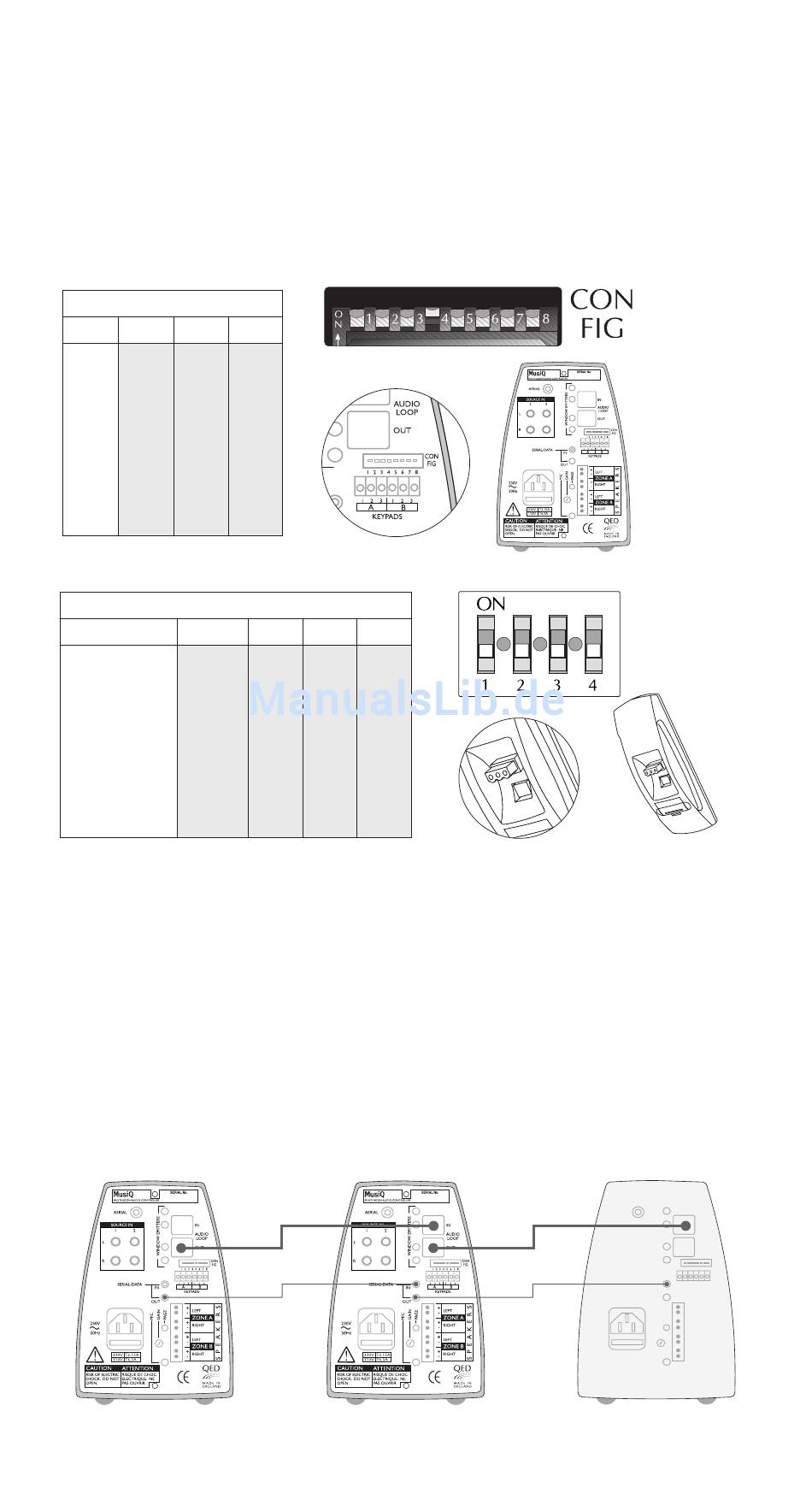

When using the RFS version of MusiQ it is important that the address switches of both the MusiQ and RF handsets are
set to the same settings. When using more than one MusiQ RFS, it is advisable to set each MusiQ to a different address.
The factory defaults will enable the use of one MusiQ RFS without the need to change the address switch settings on
the MusiQ or RF Handsets. If more than one MusiQ RFS is being used, you are advised to follow the table below:
RFS CONTROLLER ADDRESS SWITCHES
MUSIQ
Switch 6
MusiQ 1 OFF
MusiQ 2 OFF
MusiQ 3 OFF
MusiQ 4 OFF
MusiQ 5 ON
MusiQ 6 ON
MusiQ 7 ON
MusiQ 8 ON
RF HANDSET ADDRESS SWITCHES
MusiQ 1 Handset A/B
MusiQ 2 Handset A/B
MusiQ 3 Handset A/B
MusiQ 4 Handset A/B
MusiQ 5 Handset A/B
MusiQ 6 Handset A/B
MusiQ 7 Handset A/B
MusiQ 8 Handset A/B
Note: Switch 1 at the rear of each handset determines which Zone is controlled, as follows:
Handset for Zone A
Handset for Zone B
You can use as many RF handsets as you want to control each zone. If additional handsets are required, these can simply be set to the required
address of the MusiQ RFS and Zone you want to control.
3.3 CONNECTING MULTIPLE MUSIQ USING SERIAL DATA LEAD AND
AUDIO PASS THROUGH CABLE
If one or more slave MusiQ's are connected to a master, a serial data lead is used to relay the control code from from
the master to the slave. The audio pass through cable is used to pass the audio signal from the master to the slave/s.
Connect as per the following diagram:
14
MusiQ User Instructions
Configuring the System
Switch 7 Switch 8
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
HANDSET
Switch 1 A/B Switch 2 Switch 3
ON/OFF OFF OFF
ON/OFF OFF OFF
ON/OFF OFF ON
ON/OFF OFF ON
ON/OFF ON OFF
ON/OFF ON OFF
ON/OFF ON ON
ON/OFF ON ON
Switch 1 ON
Switch 1 OFF
Switch 4
OFF
ON
OFF
ON
OFF
ON
OFF
ON
If required a 3rd MusiQ can
be connected as shown
