TDS 600C Features

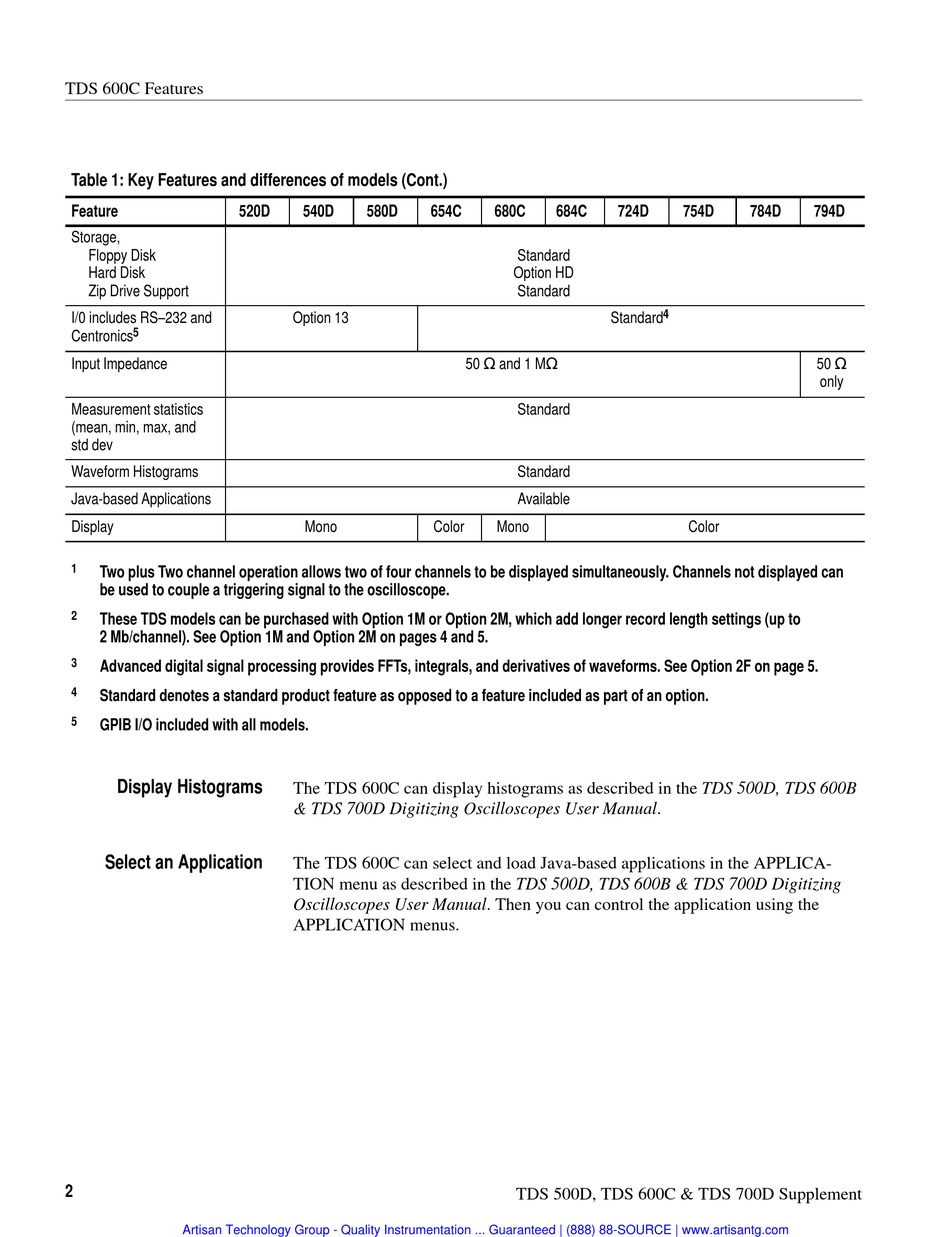

Table 1: Key Features and differences of models (Cont.)
Feature 520D
Storage,
Floppy Disk
Hard Disk
Zip Drive Support
I/0 includes RS–232 and
5
Centronics
Input Impedance
Measurement statistics
(mean, min, max, and
std dev
Waveform Histograms
Java-based Applications
Display
1
Two plus Two channel operation allows two of four channels to be displayed simultaneously. Channels not displayed can
be used to couple a triggering signal to the oscilloscope.
2
These TDS models can be purchased with Option 1M or Option 2M, which add longer record length settings (up to
2 Mb/channel). See Option 1M and Option 2M on pages 4 and 5.
3
Advanced digital signal processing provides FFTs, integrals, and derivatives of waveforms. See Option 2F on page 5.
4
Standard denotes a standard product feature as opposed to a feature included as part of an option.
5
GPIB I/O included with all models.
Display Histograms
Select an Application
2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
540D 580D 654C
Option 13
50 W and 1 MW
Mono Color
The TDS 600C can display histograms as described in the TDS 500D, TDS 600B
& TDS 700D Digitizing Oscilloscopes User Manual.
The TDS 600C can select and load Java-based applications in the APPLICA-
TION menu as described in the TDS 500D, TDS 600B & TDS 700D Digitizing
Oscilloscopes User Manual. Then you can control the application using the
APPLICATION menus.
680C 684C 724D
Standard
Option HD
Standard
4
Standard
Standard
Standard
Available
Mono
TDS 500D, TDS 600C & TDS 700D Supplement
754D 784D 794D
50 W
only
Color
