All the displayed parameters are erased when you connect a battery, or when you
switch from discharge to charge. At the same time the stored capacity values are all
moved back by one (e.g. from M1 to M2).
7.

PROGRAMMING A BID CHIP

If the charger is set to the Start display or any other set-up menu, new menu points
become available for programming BID chips as soon as a BID chip is connected to the
charger by means of the adaptor lead. The same applies if the charger is switched on
with a chip connected. Press the 'SELECT' button repeatedly until the screen shows the
following display. Starting from this menu you can set all the battery parameters which
7.1

MENU STRUCTURE, PROGRAMMING PROCEDURE

Operating instructions
POWER PEAK FUN
are to be stored in the chip, using the procedure
already described.
'INC' / 'DEC'
button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'INC' / 'DEC'
button

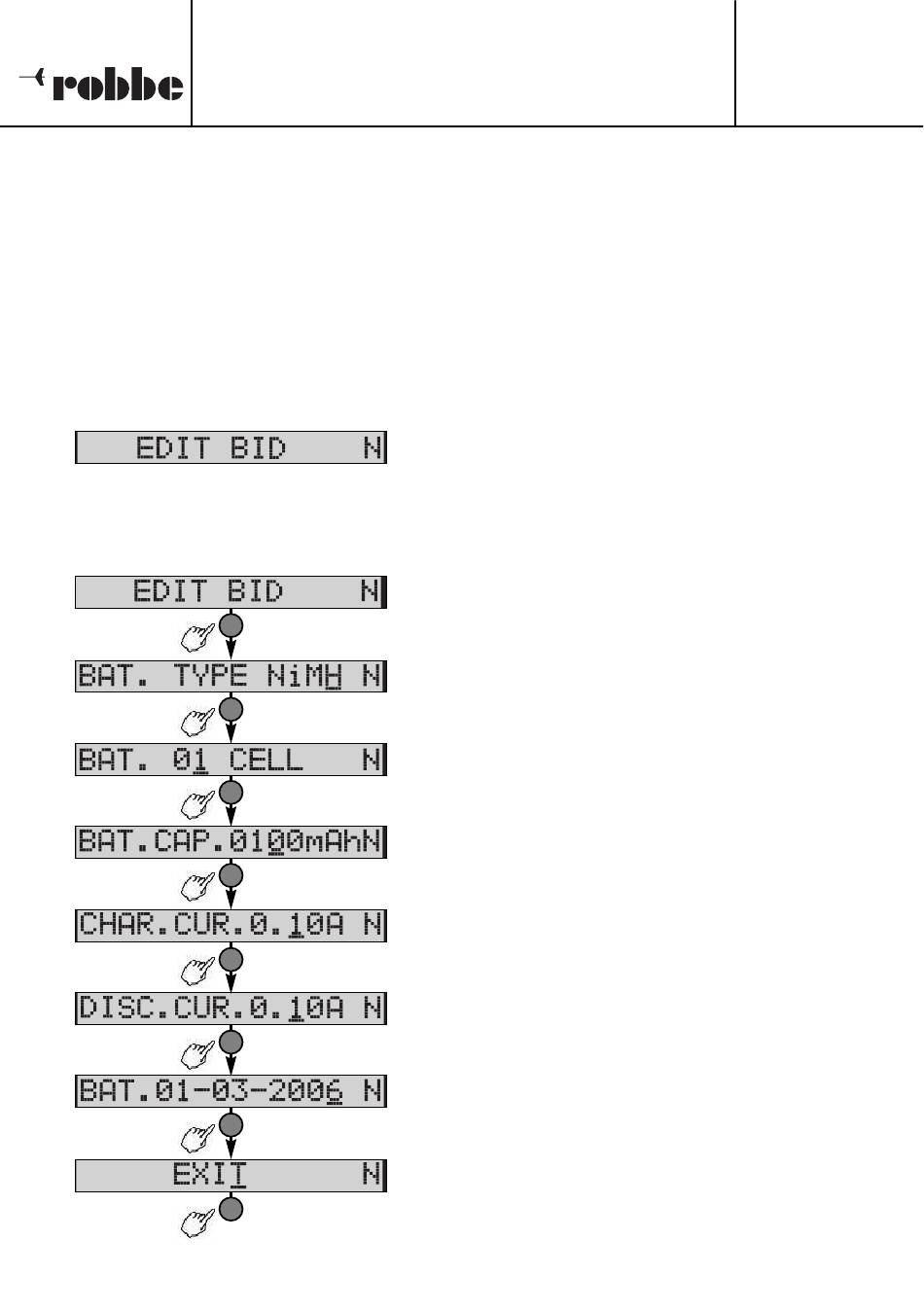

Initial screen display for programming
a BID chip; press the 'INC' or 'DEC'
button to initiate the programming
procedure
Programming the battery type: use the
'INC' or 'DEC' button to select; the
cursor and status indicator 'N' flash
Programming the cell count: use the
'INC' or 'DEC' button to select; the
cursor and status indicator 'N' flash
Selecting the battery capacity: use the
'INC' or 'DEC' button to select; the
cursor and status indicator 'N' flash
Programming the charge current: use
the 'INC' or 'DEC' button to select; the
cursor and status indicator 'N' flash
Programming the discharge current:
use the 'INC' or 'DEC' button to select;
the cursor and status indicator 'N' flash
Display of date: use the 'INC' button
to set, the 'DEC' button to select; the
cursor and status indicator 'N' flash
End of the programming procedure.
Press 'INC' or 'DEC' button to return
to the normal screen display, and
store the parameter settings. Output
voltage display, cursor and 'N' flash
