OJ GreenZone™ Module MP-Bus
• A PT1000 temperature sensor is installed in the inlet duct
• A combined temperature/humidity sensor (HTH-6202) is installed in the exhaust duct

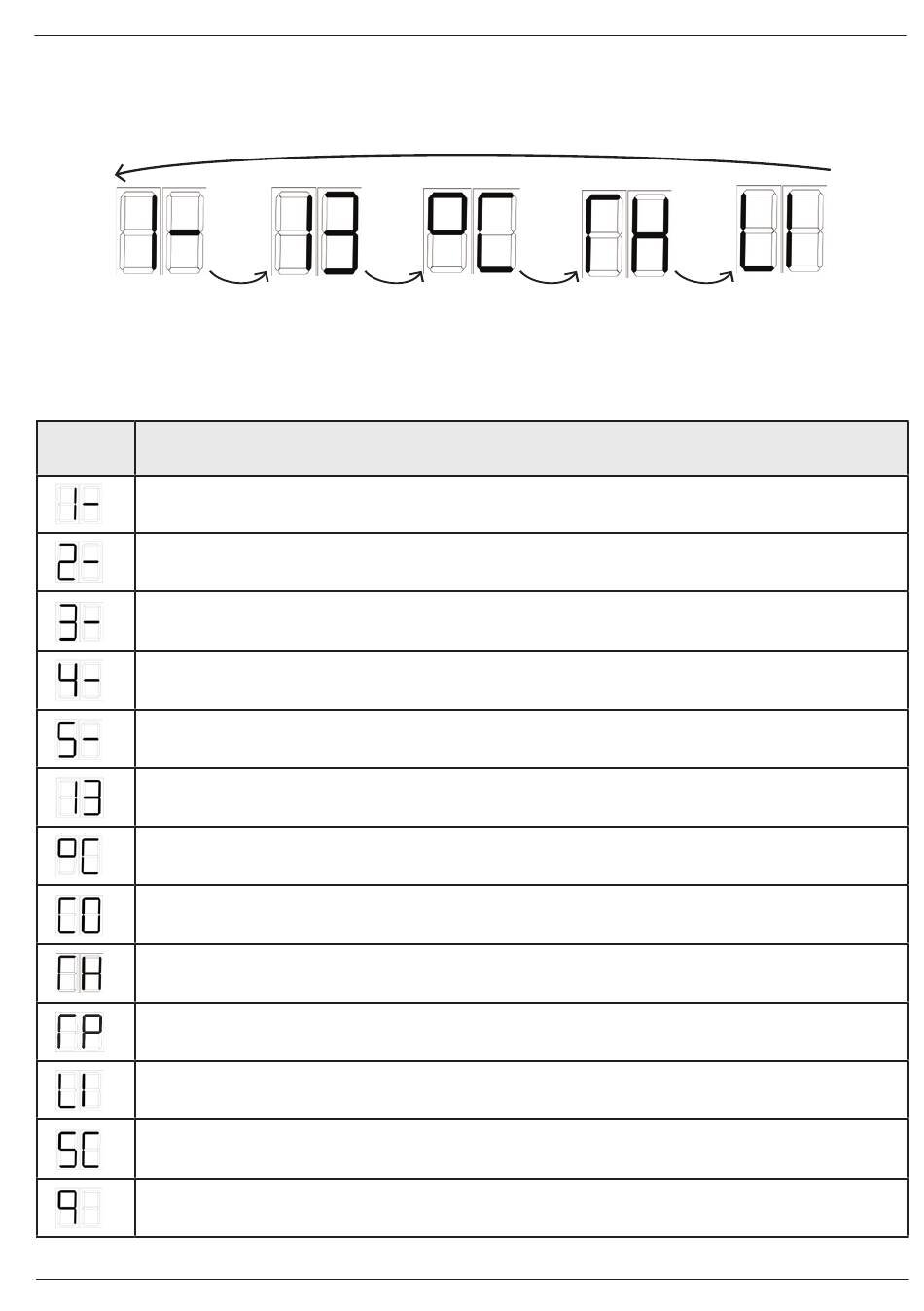

- the display will alternate between the following readouts:
Table 3
Display
Comments
readout
Actual OJ GreenZone™ Module MP-Bus is integrated in zone section 1 (ZoneMaster1)
Actual OJ GreenZone™ Module MP-Bus is integrated in zone section 2 (ZoneMaster2)
Actual OJ GreenZone™ Module MP-Bus is integrated in zone section 3 (ZoneMaster3)
Actual OJ GreenZone™ Module MP-Bus is integrated in zone section 4 (ZoneMaster4)
Actual OJ GreenZone™ Module MP-Bus is integrated in zone section 5 (ZoneMaster5)
Shows the actual number (address) of the OJ GreenZone™ Master (interval: 1-25)
Temperature sensor connected correctly (inlet, exhaust or room sensor)
CO2 sensor connected correctly (exhaust or room sensor)
Humidity sensor (HTH-XXXX) connected correctly (exhaust or room sensor)
Room control panel OJ-RPT-20T correctly connected
Two temperature sensors connected
Sensor short-circuited
Zone section number not yet allocated by OJ GreenZone™ Master
