MOUNTING
INSTRUCTIONS
5.0 m
KEY FEATURES
• Compact car specific rear view camera
• CMOS sensor element for high color fidelity
• Grid lines in the camera picture
• Seperable 3-part system cable of 5.0 m length with waterproof connectors for simplified cable routing
• Integrated illumination according to OE specifications
• IP69K certified
DESCRIPTION:

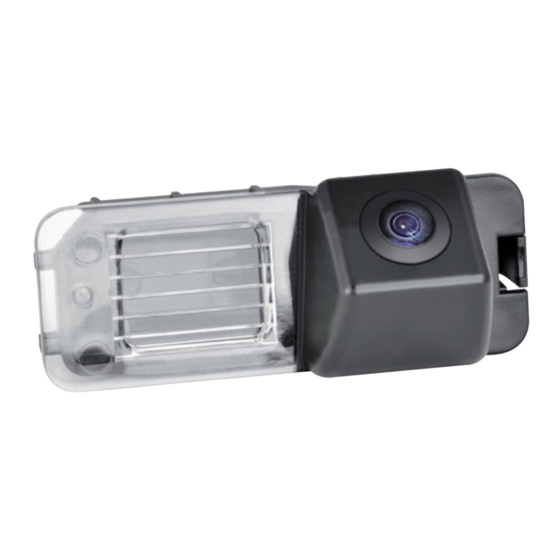

The ZENEC E>GO car specific rear view camera line up has been developed to replace factory mounted license plate illumination
inserts. This E>GO rear view camera model offers a large 120° horizontal viewing angle. The use of high quality materials for best
weather resilience and the clever IP69K rated housing design stand for long service life in tough environments.
The product is compatible with a wide variety of aftermarket 2-DIN A/V receivers, the ZENEC E>GO product line and ZENEC
2-DIN naviceiver models.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP69K. However,
vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP69K rated camera
models by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
EN
Technical
Specifications:
Image device:
¼" / 6.4 mm CMOS sensor
Lens focal length:
f1.85 mm
TV system:
NTSC / 60 fps
View angle:
170°(D) x 120°(H) x 90°(V)
Native sensor resolution:
644 (H) x 484 (V) pixels
Resolution of video-out:
> 500 TV lines
Signal to noise ratio:
> 50 dB
Light sensitivity:
0.5 Lux
Video output:
1.0 Vp-p, 75 ohms CVBS
White balance:
Auto
Backlight compensation:
Auto
Gain control:
Auto
Sync system:
Auto
Power supply:
DC 12V
Current consumption:
40 mA – 90 mA (DC12V) / < 1080 mW
IP protection rating:
IP69K
Operating temperature:
-20°C~+70°C, RH 95% max.
Dimensions:
Model specifi c
0.5 m
ZENEC Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative:
ACR S & V GmbH Industriestraße 35 D-79787 Lauchringen Germany

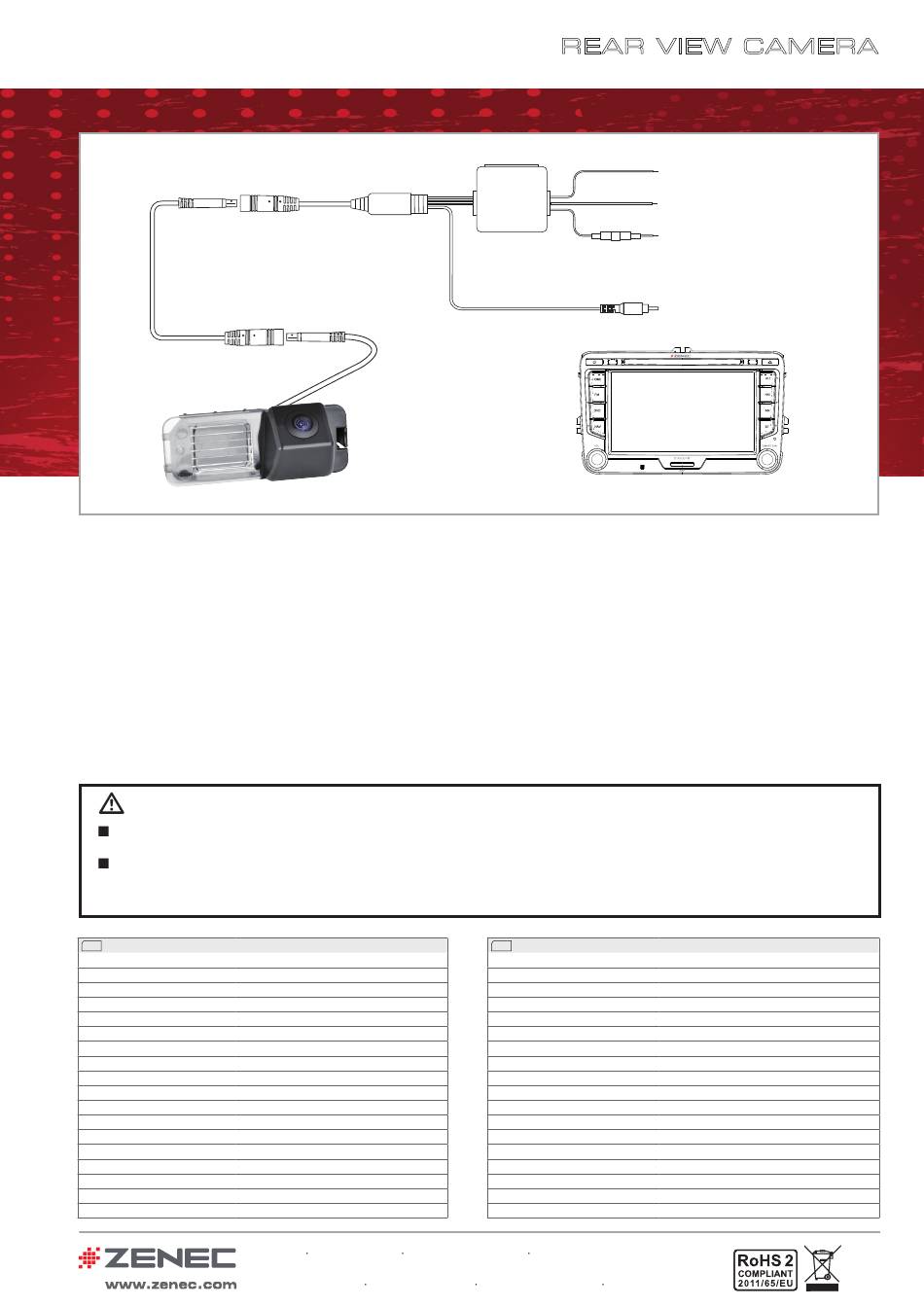

REAR VIEW CAMERA
Red:
Black: GND
Yellow: Battery +12VDC
Yellow: Video Out
(connect to Moni-/Naviceiver)
DE
Technische Spezifikationen
Kamerasystem:
¼" / 6,4 mm CMOS Sensor
Brennweite Linse:
f1,85 mm
TV System:
NTSC / 60 fps
Betrachtungswinkel:
170°(D) x 120°(H) x 90°(V)
Native Sensor Aufl ösung:
644 (H) x 484 (V) Pixel
Aufl ösung Ausgangssignal:
> 500 TV Linien
Signal/Rauschabstand:
> 50 dB
Lichtempfi ndlichkeit:
0.5 Lux
Video Ausgang:
1.0 Vp-p, 75 Ohm CVBS
Weißabgleich:
Auto
Belichtungskompensation:
Auto
Helligkeitsabgleich:
Auto
Synchronisation:
Auto
Spannungsversorgung:
DC 12V
Stromverbrauch:
40 mA – 90 mA (DC12V) / < 1080 mW
Schutzklasse:
IP69K
Betriebstemperatur:
-20°C~+75°C, RH 95% MAX.
Dimensionen:
Modellspezifi sch
ACC
Rev. A
