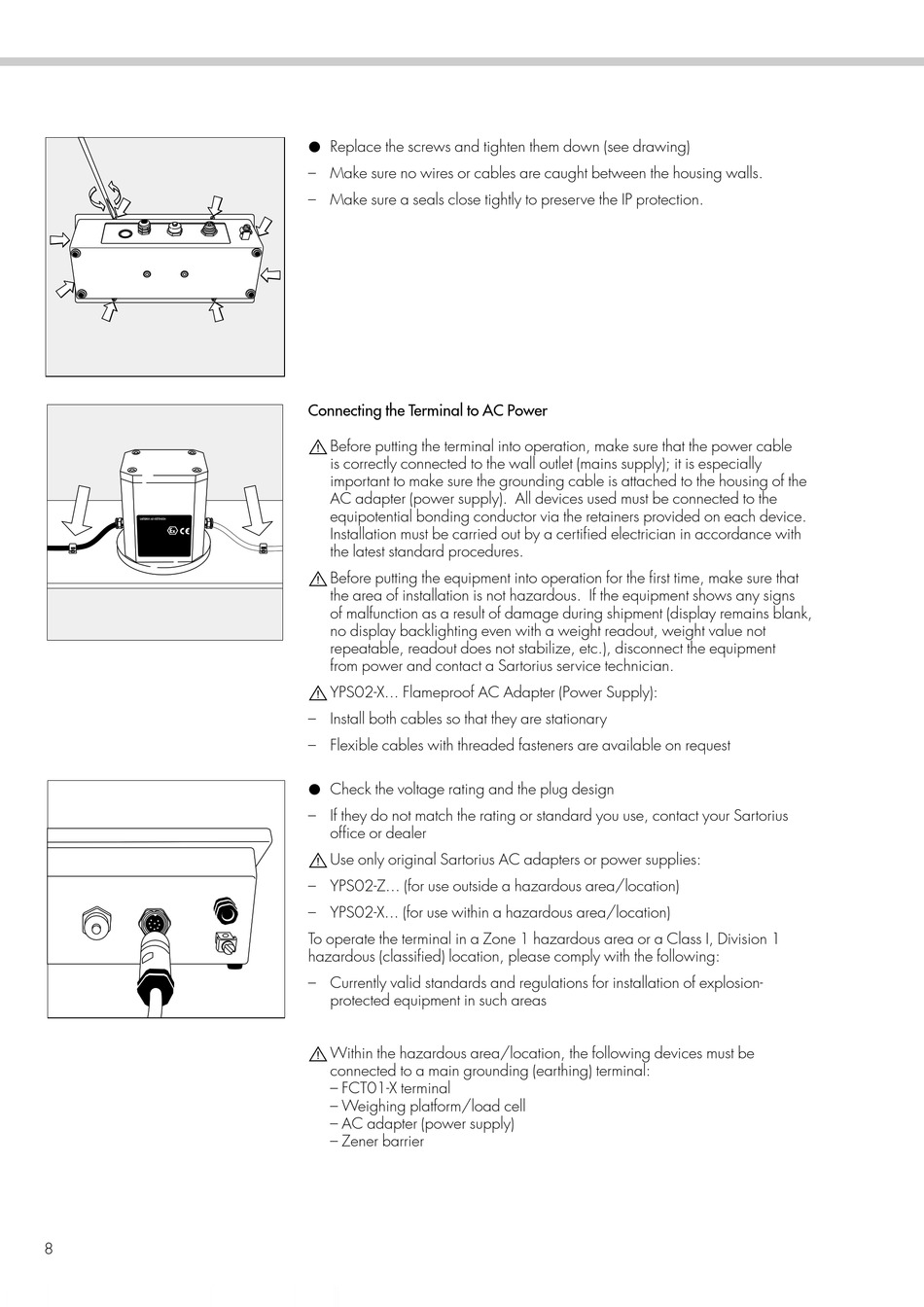

§ Replace the screws and tighten them down (see drawing)
– Make sure no wires or cables are caught between the housing walls.
– Make sure a seals close tightly to preserve the IP protection.
Connecting the Terminal to AC Power
! Before putting the terminal into operation, make sure that the power cable
is correctly connected to the wall outlet (mains supply); it is especially
important to make sure the grounding cable is attached to the housing of the
AC adapter (power supply). All devices used must be connected to the
equipotential bonding conductor via the retainers provided on each device.
Installation must be carried out by a certified electrician in accordance with
the latest standard procedures.
! Before putting the equipment into operation for the first time, make sure that
the area of installation is not hazardous. If the equipment shows any signs
of malfunction as a result of damage during shipment (display remains blank,
no display backlighting even with a weight readout, weight value not
repeatable, readout does not stabilize, etc.), disconnect the equipment
from power and contact a Sartorius service technician.
! YPS02-X... Flameproof AC Adapter (Power Supply):
– Install both cables so that they are stationary
– Flexible cables with threaded fasteners are available on request
§ Check the voltage rating and the plug design
– If they do not match the rating or standard you use, contact your Sartorius
office or dealer
! Use only original Sartorius AC adapters or power supplies:
– YPS02-Z... (for use outside a hazardous area/location)
– YPS02-X... (for use within a hazardous area/location)
To operate the terminal in a Zone 1 hazardous area or a Class I, Division 1
hazardous (classified) location, please comply with the following:
– Currently valid standards and regulations for installation of explosion-
protected equipment in such areas
! Within the hazardous area/location, the following devices must be
connected to a main grounding (earthing) terminal:
– FCT01-X terminal
– Weighing platform/load cell
– AC adapter (power supply)
– Zener barrier
