HYDRAULIC HEADS TYPE
RHTEP-S ; RHTEPD-S ; RHTEPE-S ; RHTEPF-S ; RHTEPN-S

1. GENERAL CHARACTERISTICS

– Application range: suitable for installing AR... electrical contact bush for railway in-
dustry applications.
– Max. operating pressure: ..........................................................700 bar (10,000 psi)
– Dimensions: length * .................................................................106 mm (4.1 in.)
width .......................................................................90 mm (3.5 in.)
∅ head ...................................................................48 mm (1.9 in.)
– Weight: * .......................................................................................1,1 kg (2.4 lbs)
* RHTEPE-S: length 116 mm (4.5 in.) ; weight 1,2 kg (2.6 in.)
2. INSTRUCTIONS FOR USE
(Ref. to Figs. 1 ÷ 7)
2.1) Setting
The head is equipped with a "self-lock"quick male coupler suitable for connection to a
hydraulic, pneumatic or electrical pump from the Cembre range.

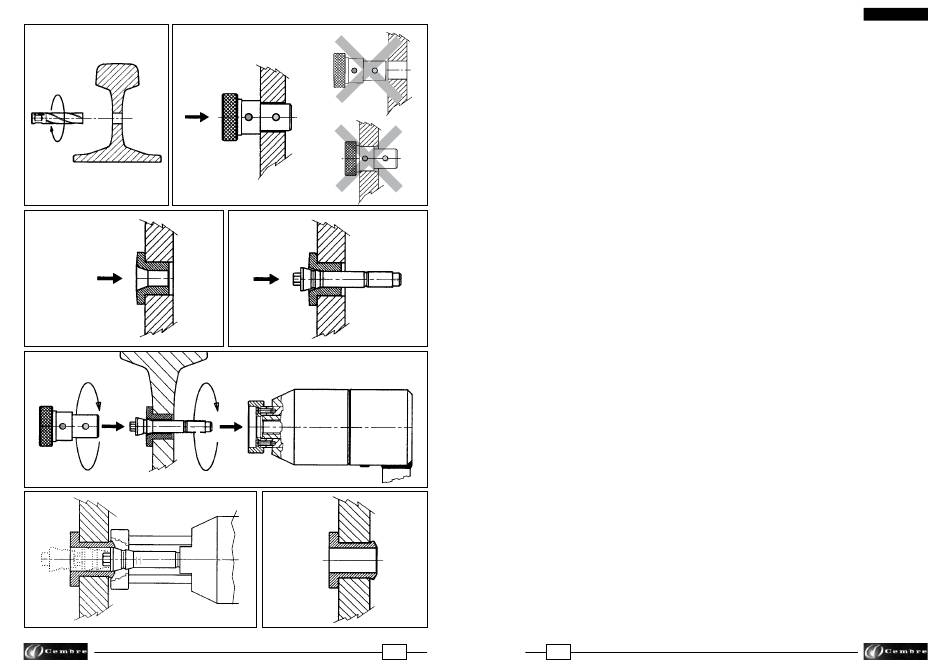

2.2) Drill rail web or, if already drilled, use a suitable reamer to clean the hole (Fig. 1).
2.3) Check the size of the hole with the "GO/NO GO" gauge CAL ....; the hole size is
correct only if the green part enters the hole. If the red part enters, the hole is too
large (Fig. 2).
2.4) Insert the AR...-1 copper bush into the rail hole (Fig. 3).
2.5) Insert the calibrated plunger OG ... into the bush, on the flange side (Fig. 4).
Ensure that the ram, in the head is fully retracted. Using the recess in the gauge
CAL .... screw and tighten the plunger OG... into the tool head (Fig. 5).
2.6) Operate the pump, to pull the plunger OG ... through the bush and extrude the bush
onto the sides of the hole (Fig. 6).
2.7) The bush will also extrude itself around the opposite side of the rail web (Fig. 7).
3. CONDUCTOR ASSEMBLY
(Ref. to Figg. 8 and 9)
3.1) Insert the special bolt (with recessed head) through the copper bush. The screw
thread should protrude from the flange side of the bush; the recessed bolt head will
tighten onto the web of the rail and not onto the bush (Fig. 8).
3.2) Crimp the lug onto the conductor. Assemble the lug to the flange of the bush over
the protruding bolt.
3.3) Fit the flat washer and the self-locking nut. (Fig. 9)
