Do not remove the type label from the rotary actuator!
It is extremely important for identification during installation
and maintenance.
The warranty is void without the type label.
6.4. Type label
3003 / 225431
~ 24 V 50/60 Hz
90°
IP66 OF N°460050/79
Protection class, Serial number (internal)
Torque, Rating
Operating voltage

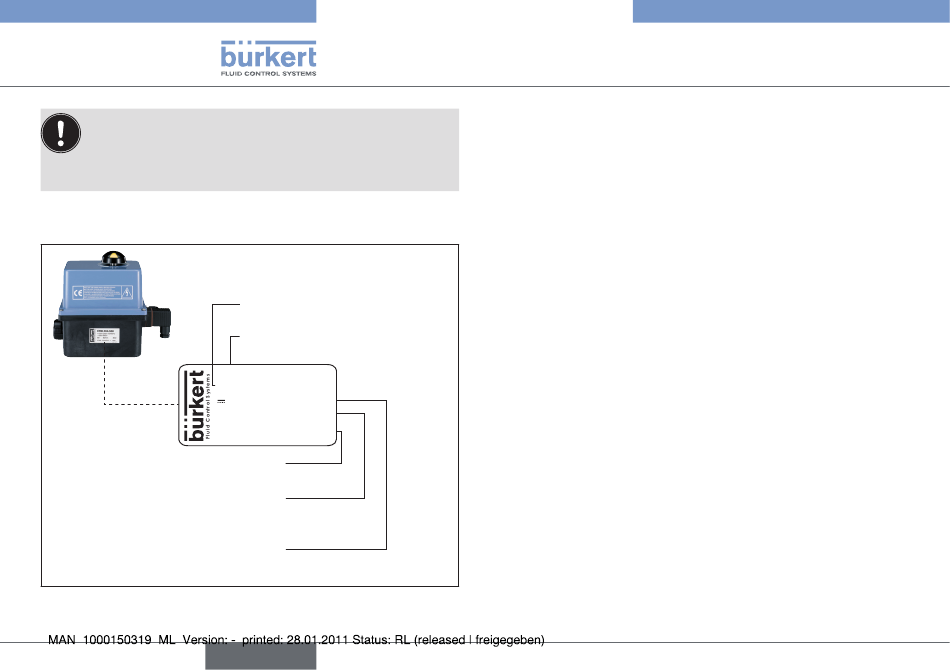

Fig. 1: Location and description of the type label
8
Operating voltage
Type, Identification number
24 V
20 Nm 15W
10/11 S46
english
Type 3003
Technical data
7. Technical daTa

7.1. conformity

The electromotive rotary actuator Type 3003 conforms to the EC
Directives according to the Declaration of Conformity.

7.2. standards

The following standards satisfy conformity with the EC Directives:
EN 61000-6-2, EN 61000-6-4, EN 61010-1.
7.3. operating conditions
Ambient temperature:
Permissible areas of application: 0 ... 2000 m altitude
Permissible humidity:
Protection class:
7.4. electrical data
Electrical connections:
Limit switches:
Range of movement:
Duty rating:
-10 ... +55 °C
< 81 % to 31 °C (88 °F) with
linear decrease as far as 50 % at
40 °C (according to EN 61010-1)
IP66 with device socket
Device socket according to EN
175301-803
Cable gland ISO M20
4 adjustable (2 for the motor and
2 additional ones for feedback
signal) - max. 250 V AC / 5 A
90° ± 5° (optional 180°, 270°)
50 % at max. torque
