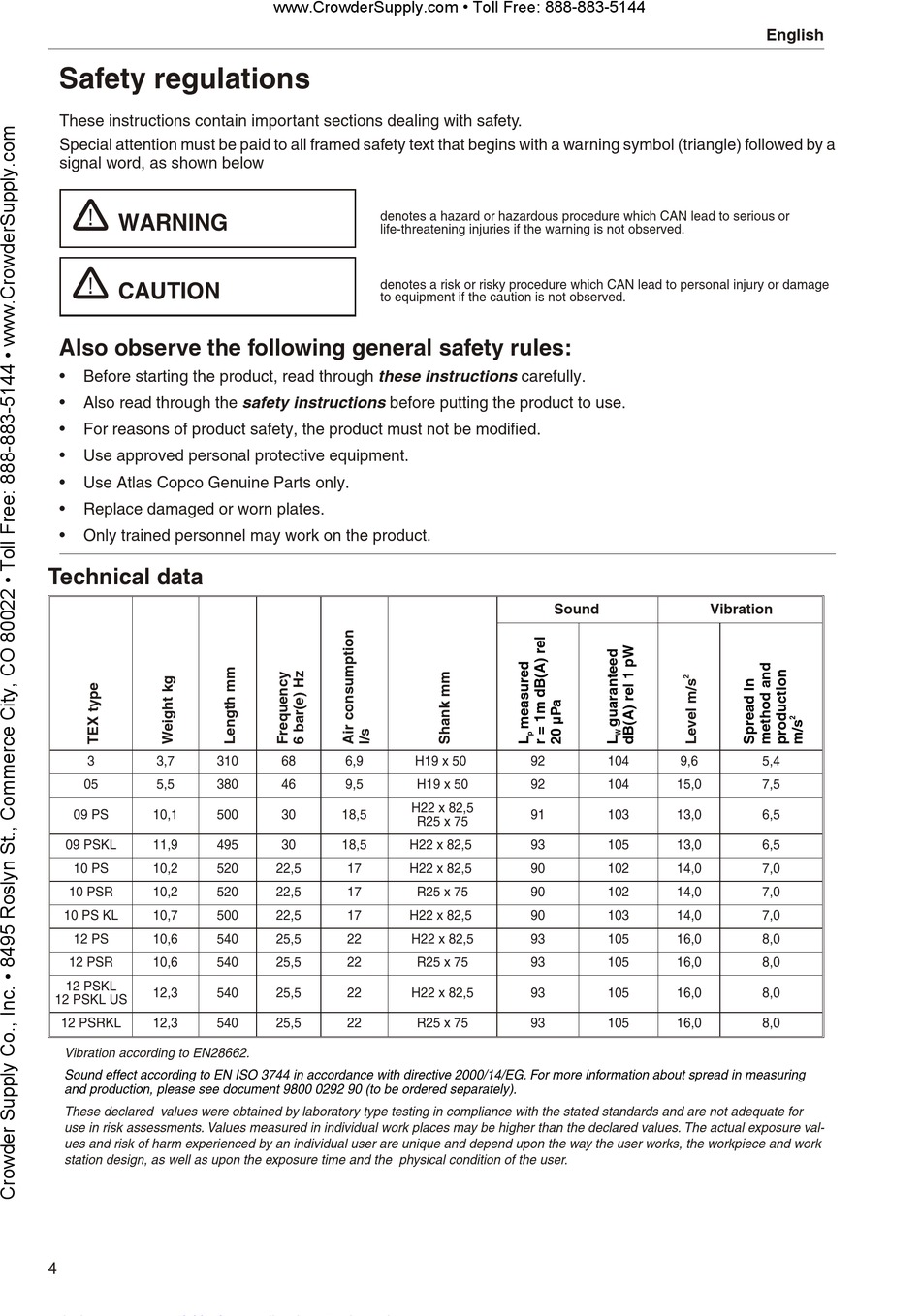

Safety Regulations; Technical Data - Atlas Copco TEX 09 Bedienungsanleitung

Safety regulations

These in struc tions con tain im por tant sec tions deal ing with safety.
Spe cial at ten tion must be paid to all framed safety text that be gins with a warn ing sym bol (tri an gle) fol lowed by a
sig nal word, as shown be low
!
WARNING
!
CAUTION
Also observe the following general safety rules:
• Be fo re star ting the pro duct, read through the se in struc tions ca re ful ly.
• Also read through the sa fe ty in struc tions be fo re put ting the pro duct to use.
• For re a sons of pro duct sa fe ty, the pro duct must not be mo di fi ed.
• Use app ro ved per so nal pro tec ti ve equip ment.
• Use At las Cop co Ge nui ne Parts only.
• Re pla ce da ma ged or worn pla tes.
• Only trai ned per son nel may work on the pro duct.
Tech ni cal data
3 3,7 310
05 5,5 380
09 PS 10,1 500
09 PSKL 11,9 495
10 PS 10,2 520
10 PSR 10,2 520
10 PS KL 10,7 500
12 PS 10,6 540
12 PSR 10,6 540
12 PSKL
12,3 540
12 PSKL US
12 PSRKL 12,3 540
Vi bra tion ac cord ing to EN28662.
Sound ef fect ac cord ing to EN ISO 3744 in ac cor dance with di rec tive
and pro duc tion, please see doc u ment 9800 0292 90 (to be or dered sep a rately).
These de clared val ues were ob tained by lab o ra tory type test ing in com pli ance with the stated stan dards and are not ad e quate for
use in risk as sess ments. Values mea sured in in di vid ual work places may be higher than the de clared val ues. The ac tual ex po sure val -
ues and risk of harm ex pe ri enced by an in di vid ual user are unique and de pend upon the way the user works, the workpiece and work
sta tion de sign, as well as upon the ex po sure time and the phys i cal con di tion of the user.
