Bpt NC/321 Installationsanleitung Seite 2

B
A
A
2 - Placca VIMAR serie Idea o Ron-
dó, placca AVE Sistema 45 (fig. 5)
A (scatola incasso).
B (adattatore per placca VIMAR).
C (adattatore per placca AVE).
D (adattatore copriforo BPT).
E (placca).
3 - Placca GEWISS serie Playbus
(fig. 6)
A (scatola incasso).
B (adattatore copriforo BPT senza
aste di unione).
C (placca).
NOTA. Qualora fosse necessario
estrarre il modulo dal telaio (montag-
gio del modulo NVM/300 abbinato al
modulo NC/321) agire con un caccia-
2
C
NC/321
D
E
NC/321
B
C
vite come indicato in fig. 7 e spingere
dalla parte posteriore.
INSTALLATION
GB
INSTRUCTIONS
NC/321 HANDS-FREE
AUDIO MODULE
Hands-free audio module for use in
series-300 audio entry installations
and, teamed with monitor module
NVM/300, in series-300 video entry
installations.
Is inserted in a standardised rectan-
gular single embedding box or com-
bined with the monitor module in a
standardised double embedding
box.
The unit comes with a chassis and
adapters for the use of a number of
commercially available front plate
models.
It features the following controls and
warnings (fig. 1):
•
Auxiliary services
•
Door-lock release
Audio
LED Red LED indicating audio con-
nection is active
Hands-free operation
Press the audio button for less than
0.5 s to initiate communication with
the entry panel (the LED lights).
5
To cut off communication, press the
audio button again for less than 0.5 s
(the LED flashes).
Afterwards, communication can be
restarted within 30 s, after which the
system switches off (the LED goes off).
Talk-listen operation
Keep the audio button pressed to ini-
tiate communication with the entry
panel and start talking (the LED
lights). Release the button to listen.
To cut off communication, press the
audio button for less than 0.5 s (the
LED flashes).
Afterwards, communication can be
restarted within 30 s, after which the
system switches off (the LED goes
off).
Calibrating the audio levels
- Activate the receivers and select
the talk-listen operating mode.
- Adjust the volumes on the entry
6
panel in the talk-listen mode.
- Go to the hands-free mode and
check the regularity of switching from
one channel to another.
- If there is difficulty in getting the
line in one of the two directions,
increase the volume slightly in the
direction where you have difficulty
and reduce it in the other direction.
In combined systems (receivers and
hands-free) we recommend you first
adjust the communication levels for
the hands-free system.
If necessary, adjust the volumes on
the entry panel to achieve a better
compromise.
Function of each terminal (fig. 2)
Terminal block M1
– ground
personal door-bell
B line
7
Personal door-bell button
The video handset is fitted with a dif-
ferentiated call input (terminal
(i.e.: for calls from landing and exter-
nal entry panel) a continuous tone
call (approximately 2 s).
Function of jumper SW1
(Call attenuated)
Normally supplied ready inserted.
Remove the jumper SW1 (fig. 2) in
the event the volume of the call note
is to be attenuated.
Maximum number of receivers acti-
vated by same call:
- 3 with normal call (jumper SW1
inserted);
- 1 with normal call and 7 with attenua-
ted call (jumper SW1 not inserted).
Function of connector CN1
Connector to be used to connect the
audio module to monitor module
NVM/300 using the relevant cable
(fig. 2).
Function of connector CN3
Connector for remote control for acti-
vating audio and door lock release
command (fig. 2).
Technical features
• Power supply: from data line itself.
• Current demand: <0,5 mA.
• Audio/data connection line: non
polarized twisted pair Z=100 Ω.
• Maximum switching power of the
auxiliary services button: max. 24 V
50 mA.
• Maximum number of receivers that
can be connected to control unit
XA/300LR: 100.
• Maximum number of receivers that
can be connected to an X2 entry
panel: 32.
• Working temperature range: from 0
°C to +35 °C.
NOTE. Receivers with handset and
NC/321 hands-free modules can be
installed in the same installation.
Installation
Recess the embedding box flush with
the wall at a suitable height for the
user.
Examples of assembly of the
hands-free module in a standardi-
sed single embedding box with a
number of commercially available
front plates (fig. 3):
1 - BTICINO Living series art.
L4803 or Light series art. N4803
front plate, VIMAR Plana series art.
14653 front plate (fig. 4)
A (embedding box).
B (front plate).

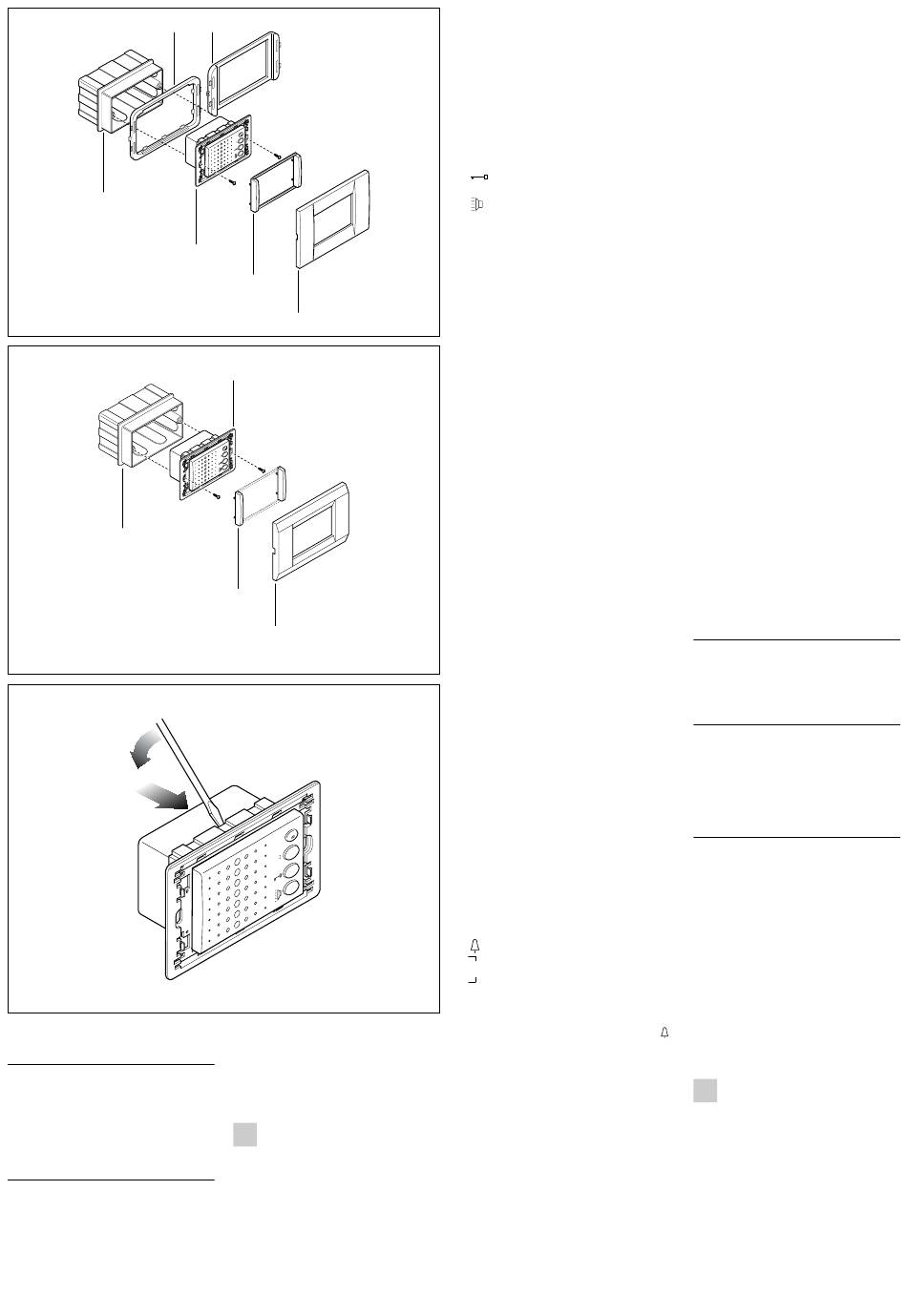

2 - VIMAR Idea or Rondó series
front plate, AVE System 45 front
plate (fig. 5)
A (embedding box).
B (adapter for VIMAR plate).
C (adapter for AVE plate).
D (BPT hole plug adapter).
E (front plate).
3 - GEWISS Playbus series front
plate (fig. 6)
A (embedding box).
B (BPT hole plug adapter without
connecting rods).
C (front plate).
NOTE. If you need to remove the
module from the chassis (assembly of
the module NVM/300 matched with
the module NC/321), do so with the
aid of a screwdriver as illustrated in
fig. 7 and push from the back.
)
INSTALLATIONS-
D
ANLEITUNG
MODUL MIT
FREISPRECHFUNKTION NC/321
Audiomodul mit Freisprechfunktion
für Haussprechanlagen der Serie 300
und in Kombination mit dem Monitor-
modul NVM/300 in Videosprechanla-
gen der Serie 300.
Kann in einen genormten Einzel-
kästen, Dreimodulkasten für die
Unterputzmontage einzeln oder mit
dem Monitormodul in einen genorm-
ten Doppeltenkasten für die
