STEINEL IS 2180-5 Bedienungsanleitung Seite 10

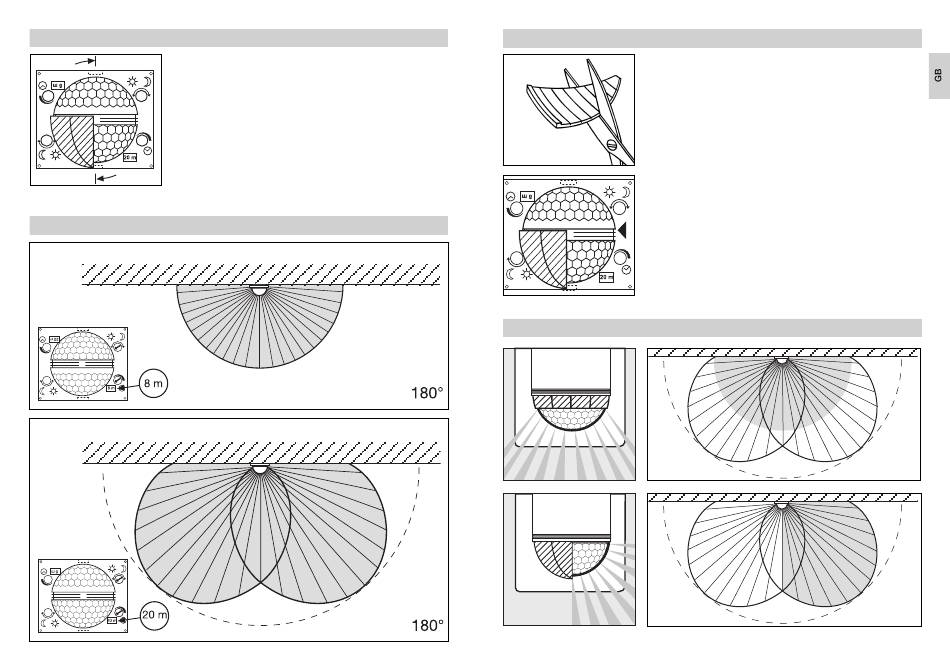

Basic reach settings
The lens of the IS 2180-
5 is divided into two detec-
tion zones. One half covers
a max. reach of 8 m, the oth-
er half a max. reach of 20 m
(when installed at a height
of approx. 2 m). After fi tting
the lens (fi rmly clamp lens in-
Examples
to the slot provided), the max.
20 m or 8 m reach setting se-
lected is indicated at the bot-
tom right). Using a screwdriv-
er, the lens can be unclipped
from the groove at the side
and re-positioned for the
reach you require.
18
Precision adjustment using shrouds
Shrouds may be used to de-
fi ne the detection zone exact-
ly as you require in order, for
example, to blank out or spe-
cifi cally target paths or neigh-
bouring premises.
The shrouds can be divided
or cut with a pair of scissors
along the vertical and hori-
zontal grooves. They can be
then clipped into the top
channel around the centre of
the lens. They are fi xed in
place by fi tting the designer
front trim.
Examples
(See below: examples show-
ing how to reduce the angle
of coverage and shorten
reach.)
19
