be noticeable several hours later. In addition, UV
radiation will cause sunburn-type symptoms on un-
protected parts of the body.
9. Personnel or assistants in the vicinity of the arc must
also be noti¿ ed of the dangers and provided with the
required protection; if necessary install safety walls.
10. Ensure adequate ventilation for welding, particular-
ly in small rooms since the process causes smoke
and harmful gases.
11. Do not carry out any welding work on tanks that
have been used to store gases, fuels, mineral oil or
the like, even if they have been empty for a lengthy
period of time, since any residue will result in a dan-
ger of explosion.
12. Special regulations apply in areas where there is a
potential risk of ¿ re and/or explosion.
13. Welds that are exposed to large stresses and must
comply with safety requirements may only be com-
pleted by specially trained and approved welders.
Examples of such welds include pressure vessels,
rails, trailer hitches, etc.
14. Only use a power source (with earthing contact) that
is protected with a slow-blow fuse, a slow-triggering
circuit breaker and a residual current device.
The fuses must comply with the relevant regula-
tions (VDE 0100). To comply with these regula-
tions, only fuses or circuit breakers suitable for the
cross-section of the cables may be used. The use
of too high a fuse may result in the cable burning
and ¿ re damage to the building.
This appliance is not designed for commercial use.
CONSTRICTED AND WET AREAS
When working in constricted, wet or hot areas, use
insulating supports and intermediate layers as well as
slip-on gloves made of leather or other non-conductive
materials to insulate your body against the À oor, walls,
conductive parts of the machine and the like.
If you use small welding transformers for welding in
places with an increase electrical risk, for example in
constricted areas with conductive walls, (tanks, pipes,
etc.), in wet areas (which make work clothes wet) and
in hot areas (perspiration on work clothes), the output
voltage of the welding set when idling must not exceed
42 V (effective value). Therefore, the appliance may
not be used for these purposes because its output volt-
age is higher than this.
SAFETY CLOTHING
1. While working, the welder must protect his entire
body from radiation and burns by wearing suitable
clothing and a face guard.
2. Slip-on gloves made of a suitable material (leather)
must be worn on both hands. They must be in per-
fect condition.
3. Suitable aprons must be worn to protect clothing from
sparks and burns. A safety suit and, if necessary,
head protection must be worn if required by the type
of work in question, e.g. overhead welding.
PROTECTION FROM RADIATION
AND BURNS
1. Provide information about the risk to eyes at the
working site in the form of a poster with the wording
«Caution - do not look at the À ames». Workplaces
are to be screened off wherever possible so that
personnel in the vicinity are protected. Unauthorized
persons are to be kept away from the welding work.
2. The walls in the immediate vicinity of stationary work-
places should not have a light color or a sheen. Win-
dows up to head height are to be protected against
radiation passing through them or reÀ ecting off them,
for example by coating them with a suitable paint.

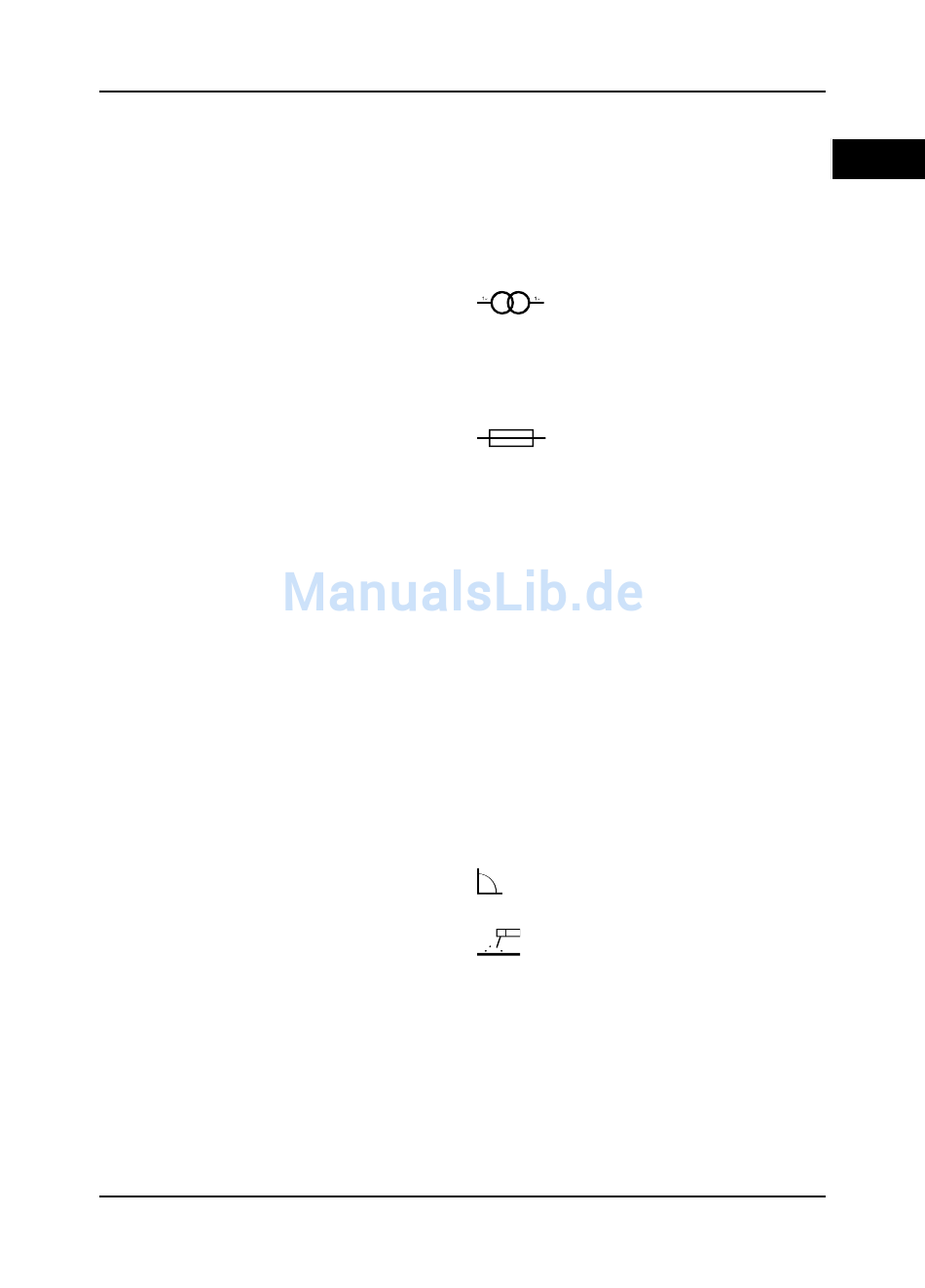

4. SYMBOLS AND TECHNICAL DATA

Single-phase transformer
50 Hz Mains frequency
U Mains voltage
1
I max Rated maximum mains current
1
Fuse with rated value in A
U Rated idling voltage
0
I Welding current
2
Ø mm Electrode diameter
nc/nc Number of welding electrodes
1
that can be melted.
a) from a cold state up to the trip
point of the temperature monitor
(nc) and
b) within the ¿ rst hour from the
cold state (nc )
1
nh/nh Number of welding electrodes that
1
can be melted
a) in a hot state between the
temperature monitor switching
on and off (nh)
and
b) over a period of one hour in a
hot state from being switched on
again (nh )
1
Symbol for falling characteristic curve
Symbol for manual arc welding with
sheathed rod electrodes
IP 21 Protection type
H Insulation class
X Duty Cycle (measured in % from
standard 5 min cycle). For in-stance,
10% means that each 30 seconds use
shall be followed by 4 min 30 sec break.
Stick to this to prolong the service life of
your welding machine.
The set is interference-suppressed in compliance with
EC Directive 89/336/EEC
