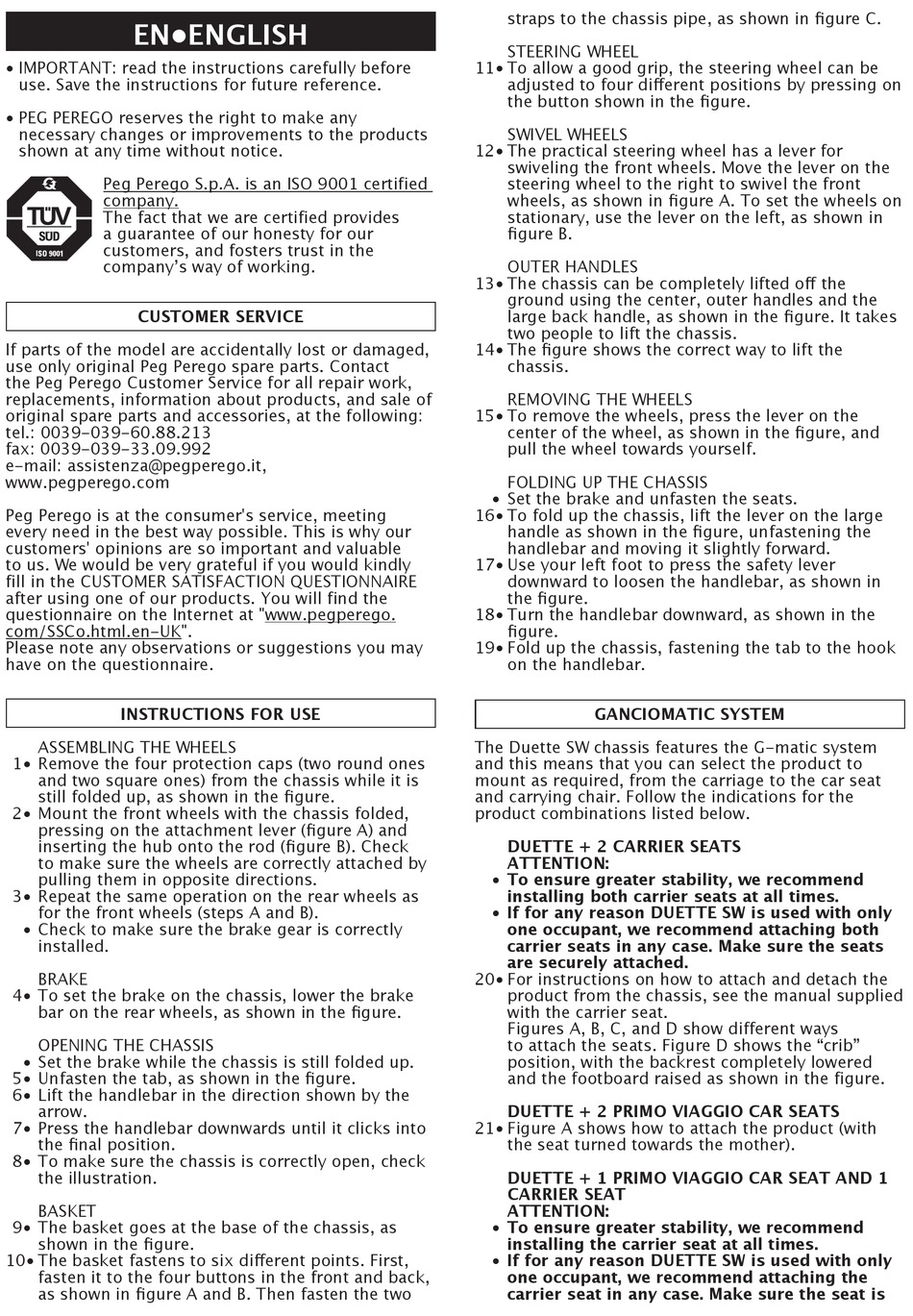

Peg Perego Duette SW Gebrauchsanleitung Seite 12

EN•ENGLISH
• IMPORTANT: read the instructions carefully before
use. Save the instructions for future reference.
• PEG PEREGO reserves the right to make any
necessary changes or improvements to the products
shown at any time without notice.
Peg Perego S.p.A. is an ISO 9001 certified
company.
The fact that we are certified provides
a guarantee of our honesty for our
customers, and fosters trust in the
companyʼs way of working.
CUSTOMER SERVICE
If parts of the model are accidentally lost or damaged,
use only original Peg Perego spare parts. Contact
the Peg Perego Customer Service for all repair work,
replacements, information about products, and sale of
original spare parts and accessories, at the following:
tel.: 0039-039-60.88.213
fax: 0039-039-33.09.992
e-mail: assistenza@pegperego.it,
www.pegperego.com
Peg Perego is at the consumer's service, meeting
every need in the best way possible. This is why our
customers' opinions are so important and valuable
to us. We would be very grateful if you would kindly
fill in the CUSTOMER SATISFACTION QUESTIONNAIRE
after using one of our products. You will find the
questionnaire on the Internet at "www.pegperego.
com/SSCo.html.en-UK".
Please note any observations or suggestions you may
have on the questionnaire.
INSTRUCTIONS FOR USE
ASSEMBLING THE WHEELS
1• Remove the four protection caps (two round ones
and two square ones) from the chassis while it is
still folded up, as shown in the Þ gure.
2• Mount the front wheels with the chassis folded,
pressing on the attachment lever (Þ gure A) and
inserting the hub onto the rod (Þ gure B). Check
to make sure the wheels are correctly attached by
pulling them in opposite directions.
3• Repeat the same operation on the rear wheels as
for the front wheels (steps A and B).
• Check to make sure the brake gear is correctly
installed.
BRAKE
4• To set the brake on the chassis, lower the brake
bar on the rear wheels, as shown in the Þ gure.
OPENING THE CHASSIS
• Set the brake while the chassis is still folded up.
5• Unfasten the tab, as shown in the Þ gure.
6• Lift the handlebar in the direction shown by the
arrow.
7• Press the handlebar downwards until it clicks into
the Þ nal position.
8• To make sure the chassis is correctly open, check
the illustration.
BASKET
9• The basket goes at the base of the chassis, as
shown in the Þ gure.
10• The basket fastens to six diff erent points. First,
fasten it to the four buttons in the front and back,
as shown in Þ gure A and B. Then fasten the two
straps to the chassis pipe, as shown in Þ gure C.
STEERING WHEEL
11• To allow a good grip, the steering wheel can be
adjusted to four diff erent positions by pressing on
the button shown in the Þ gure.
SWIVEL WHEELS
12• The practical steering wheel has a lever for
swiveling the front wheels. Move the lever on the
steering wheel to the right to swivel the front
wheels, as shown in Þ gure A. To set the wheels on
stationary, use the lever on the left, as shown in
Þ gure B.
OUTER HANDLES
13• The chassis can be completely lifted off the
ground using the center, outer handles and the
large back handle, as shown in the Þ gure. It takes
two people to lift the chassis.
14• The Þ gure shows the correct way to lift the
chassis.
REMOVING THE WHEELS
15• To remove the wheels, press the lever on the
center of the wheel, as shown in the Þ gure, and
pull the wheel towards yourself.
FOLDING UP THE CHASSIS
• Set the brake and unfasten the seats.
16• To fold up the chassis, lift the lever on the large
handle as shown in the Þ gure, unfastening the
handlebar and moving it slightly forward.
17• Use your left foot to press the safety lever
downward to loosen the handlebar, as shown in
the Þ gure.
18• Turn the handlebar downward, as shown in the
Þ gure.
19• Fold up the chassis, fastening the tab to the hook
on the handlebar.
GANCIOMATIC SYSTEM
The Duette SW chassis features the G-matic system
and this means that you can select the product to
mount as required, from the carriage to the car seat
and carrying chair. Follow the indications for the
product combinations listed below.
DUETTE + 2 CARRIER SEATS
ATTENTION:
• To ensure greater stability, we recommend
installing both carrier seats at all times.
• If for any reason DUETTE SW is used with only
one occupant, we recommend attaching both
carrier seats in any case. Make sure the seats
are securely attached.
20• For instructions on how to attach and detach the
product from the chassis, see the manual supplied
with the carrier seat.
Figures A, B, C, and D show different ways
to attach the seats. Figure D shows the "crib"
position, with the backrest completely lowered
and the footboard raised as shown in the figure.
DUETTE + 2 PRIMO VIAGGIO CAR SEATS
21• Figure A shows how to attach the product (with
the seat turned towards the mother).
DUETTE + 1 PRIMO VIAGGIO CAR SEAT AND 1
CARRIER SEAT
ATTENTION:
• To ensure greater stability, we recommend
installing the carrier seat at all times.
• If for any reason DUETTE SW is used with only
one occupant, we recommend attaching the
carrier seat in any case. Make sure the seat is
