- By turning of the adjustable centring guide set
the required depth of cut (Fig. 9.04)
Right turn (clockwise)
= reduces depth of cut
Left turn (anti-clockwise)
= increases depth of cut
- Now tighten locking screw
9.3

Left or Right Twist

- According to the construction of the cable the
LEFT-RIGHT switch controls the direction of the
twist. (Fig. 9.05)
- Check the set-ups made with the help of a
cable
If twisting is not required, the cable must not be
withdrawn during the knives are revolving.
The strip depth setting will remain constant even
when changing the position of the revolver head.
Once back in position it will reproduce the original
setting.
9.4

Option: Set of Twisting Springs

Set of twisting springs for firm twisting of the inner
conductors.
The two twist-springs hold the stripped-off slug
whilst the rotating stripping head twists the inner
conductors firmly.
Especially suitable for the subsequent tinning
process.
Page 34 / 62
Version 05/10

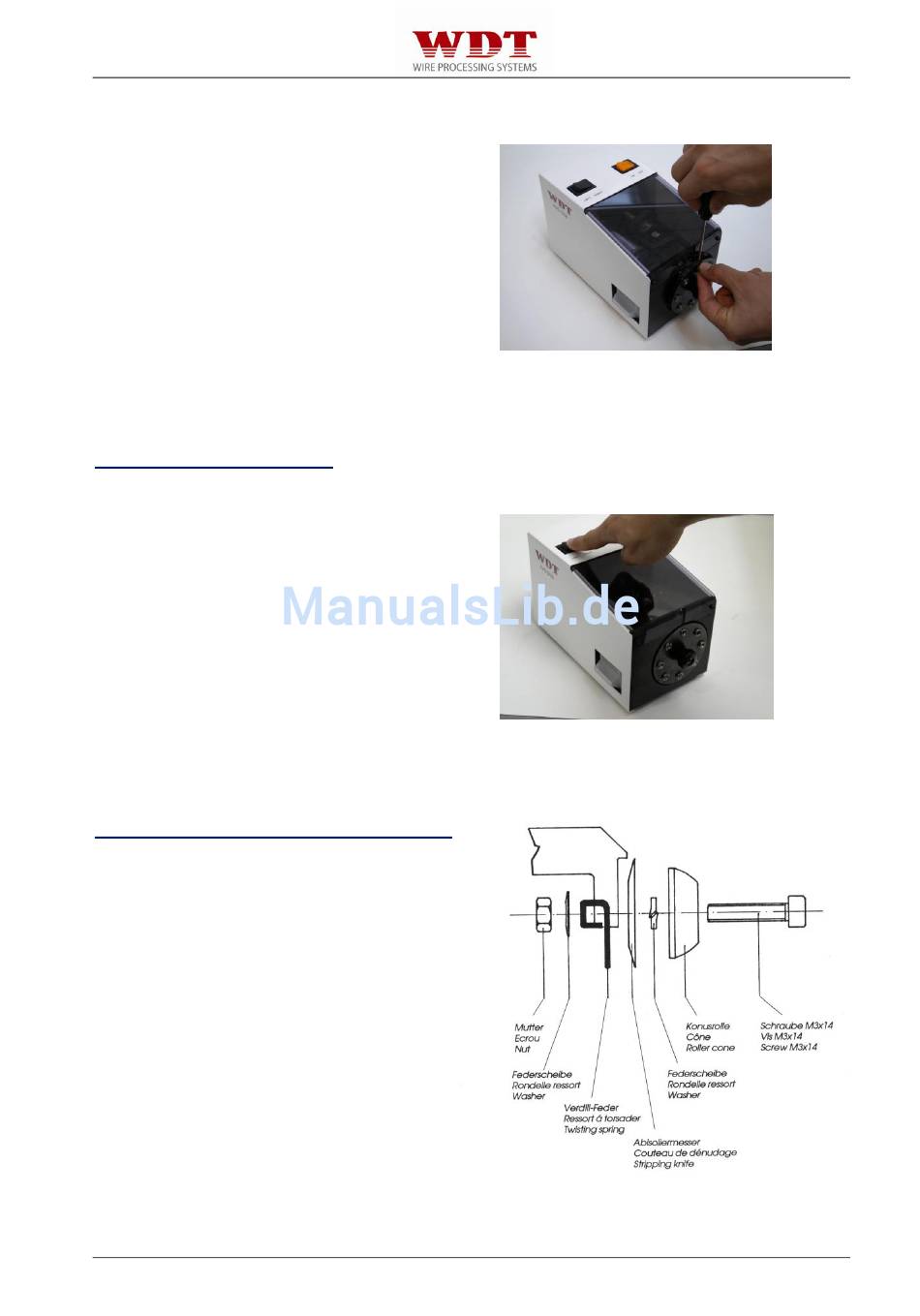

Fig. 9.04
Fig. 9.05
Fig. 9.06
