AVG 0160
6
Technical Description
6.1
Operating Functions
6.1.1
Front View
6.1.2
Back View
Pos.
1
2
3
4
5
6
7
8

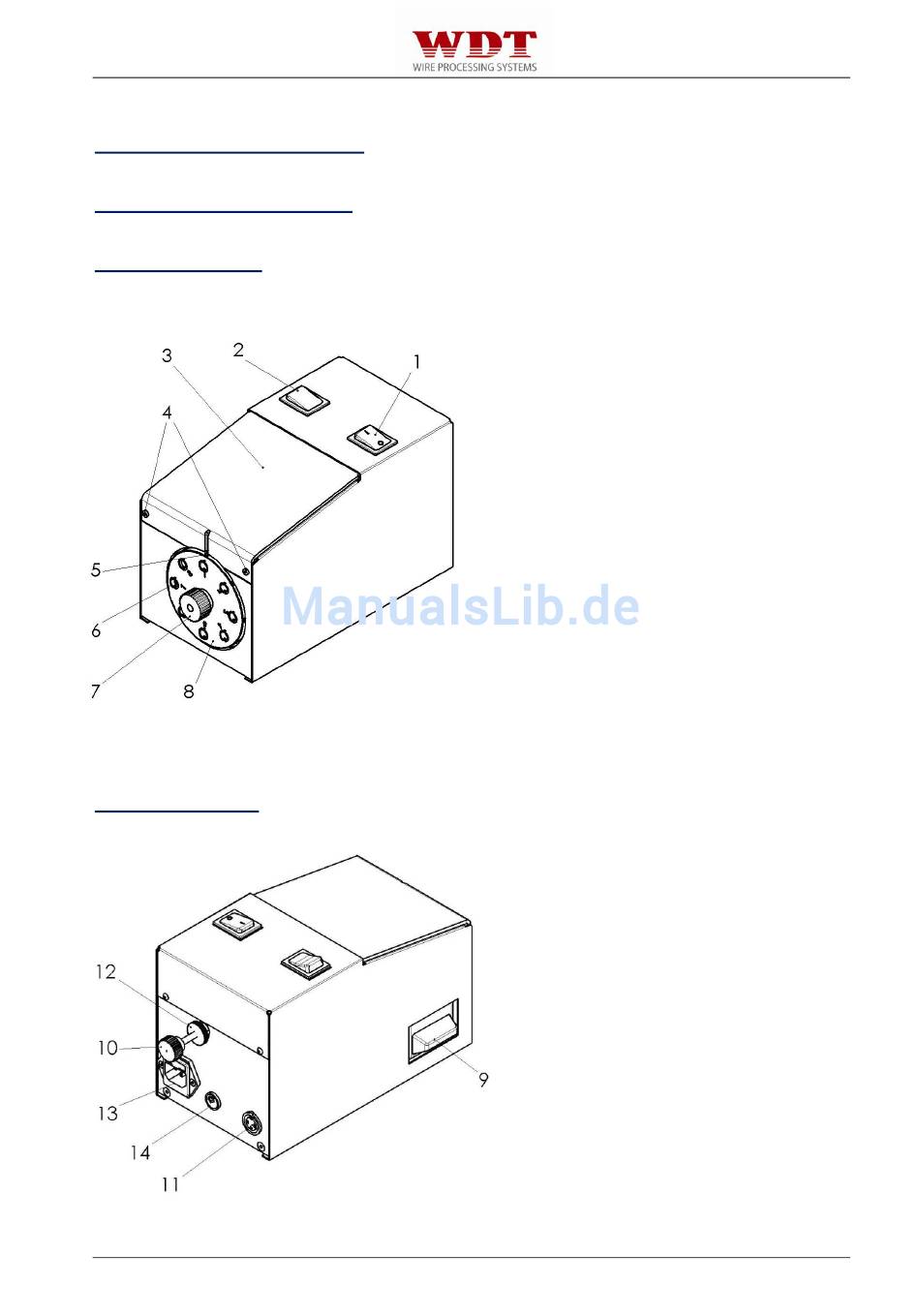

Fig. 6.01
9
10
11
12
13
14
Fig. 6.02
Page 29 / 62
Version 05/10
Bezeichnung
Main switch ON - OFF
Turning direction left-right
Macrolon-protection
Screws M3 x 8
Lock screw
Centering guide
Knurled screw
Revolver head with 8
adjustable centering guides
Container for waste
Adjusting screw for strip
length
DIN socket for foot pedal
Locking Ring
Connector Plug with safety
holder for machine cable
Mains Changeover Switch
115 or 230 V
