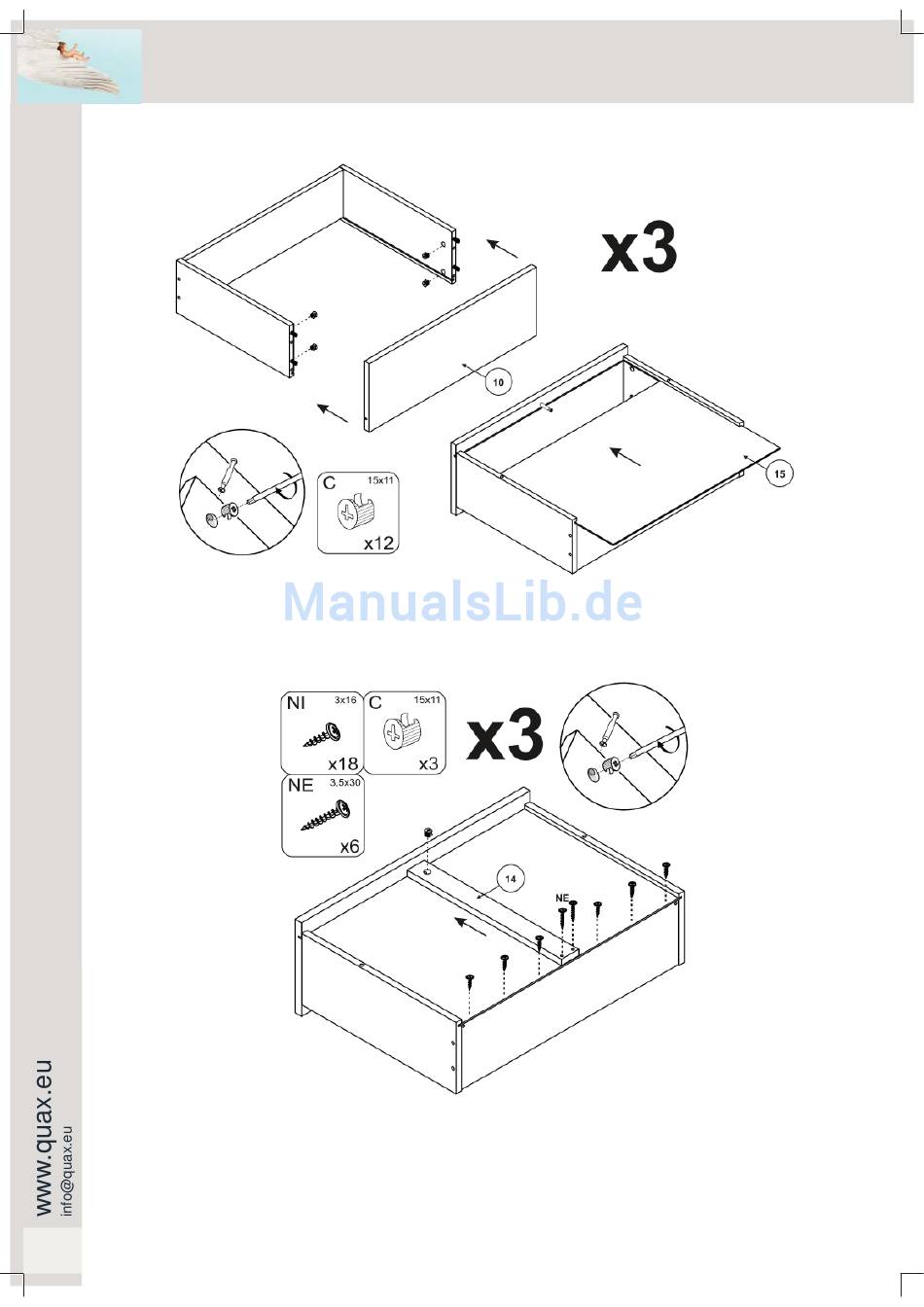

Step 7 : Use the parts of step 6, the three bottoms 13 and twelve eccentrics C
Push in each drawer side (12L and 12R) two eccentrics (C) in the drillings provided on the innerside. Slide the
drawer bottoms (13) into the grooves of the assembled drawers. Push the drawer fronts with the connectors into
the drillings and over the wooden dowels of the sides and tighten the eccentrics.
Step 8 : Use the parts of step 7, the three cross bars 14, three eccentrics C, eighteen wood screws NI and six
wood screws NE
Fasten each bottom to the back using six wood screws (NI). Push in a crossbar (14) one eccentric (C) in the
opening provided in front of the bar. Insert the cross bars in the middle of the bottom, over the connectors of the
fronts, tighten the eccentrics and fi x the backs by using the wood screws (NE).
