Quax JOY Small Handbuch Seite 35

JOY Small
54 04 16xx
4. Assembling the wardrobe

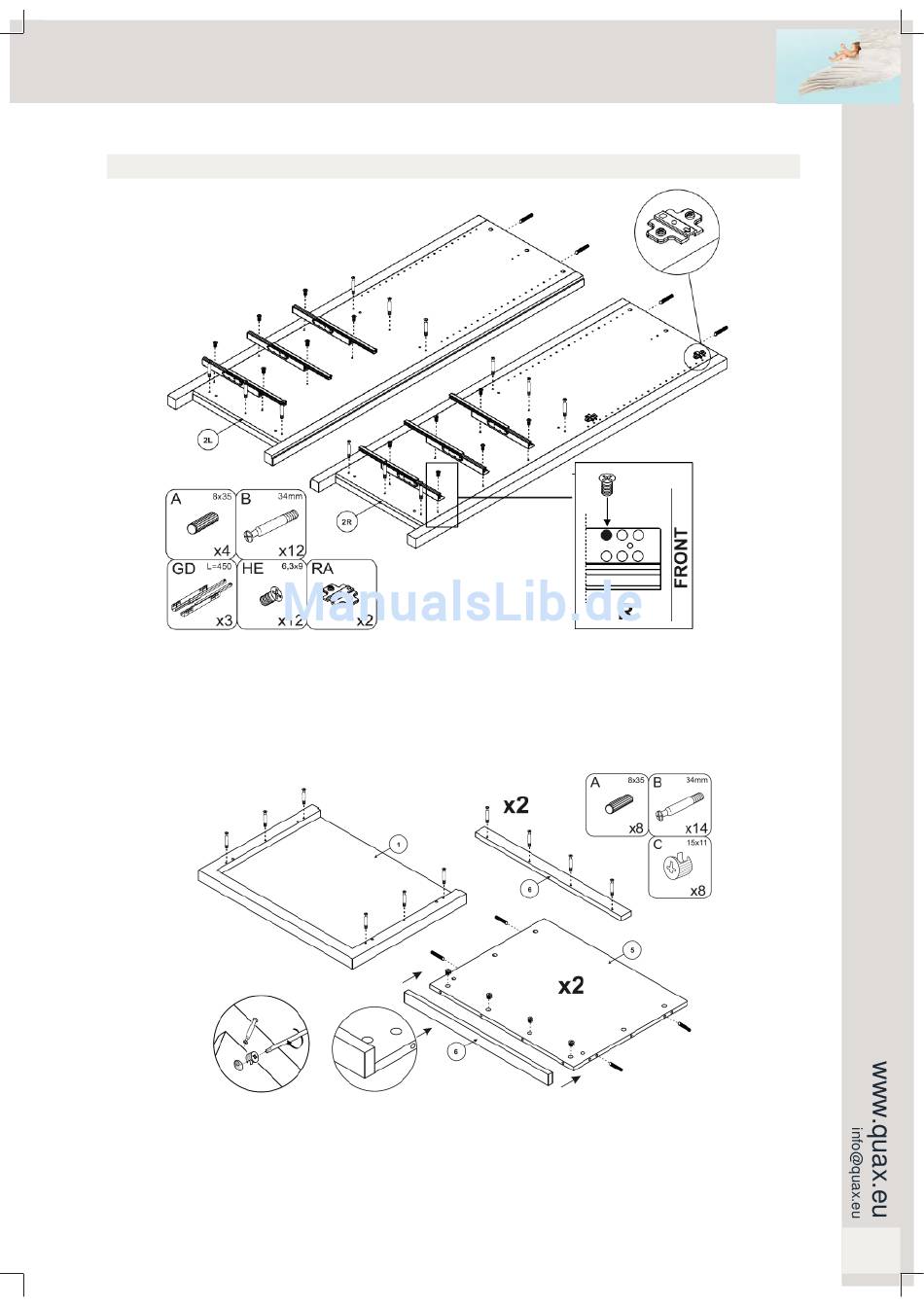

Step 1 : Use both sides 2R and 2L, the sliders GD, twelve bolts HE, four wooden dowels A, two hinge
plates RA and twelve connectors B
Position the sliders (GD) on the provided drillings of the side panels (2R and 2L). Fix one slider with two
bolts (HE) according to the diagram in
and the bottom of a side. Push two wooden dowels (A) into the holes provided at the top of a side. Fix the
hinge plates (RA) into the holes at the front of the side.
Step 2 : Use the top 1, both bottoms 5, both cornices 6, eight wooden dowels A, fourteen connectors B
and eight eccentrics C
Tighten six connectors (B) into the provided drillings at the bottom of top (1). Push four wooden dowels
(A) in the holes provided at the ends of the bottoms (5). Tighten four connectors (B) in the drillings on the
inside of a cornice (6). Insert eight eccentrics (C) into the drillings at the underside of the bottoms. Push the
cornices (6) with their connectors into the holes of the bottoms and fasten the eccentrics.
Kast met 3 laden en 1 deur
Schrankwand mit 3 Schubladen und 1 Tür
detail. Tighten three connectors (B) into the holes in the middle
Armoire avec 3 tiroirs et 1 porte
Wardrobe with 3 drawers and 1 door
Quax Quax
First dreams First dreams
® ®
First steps First steps
35
