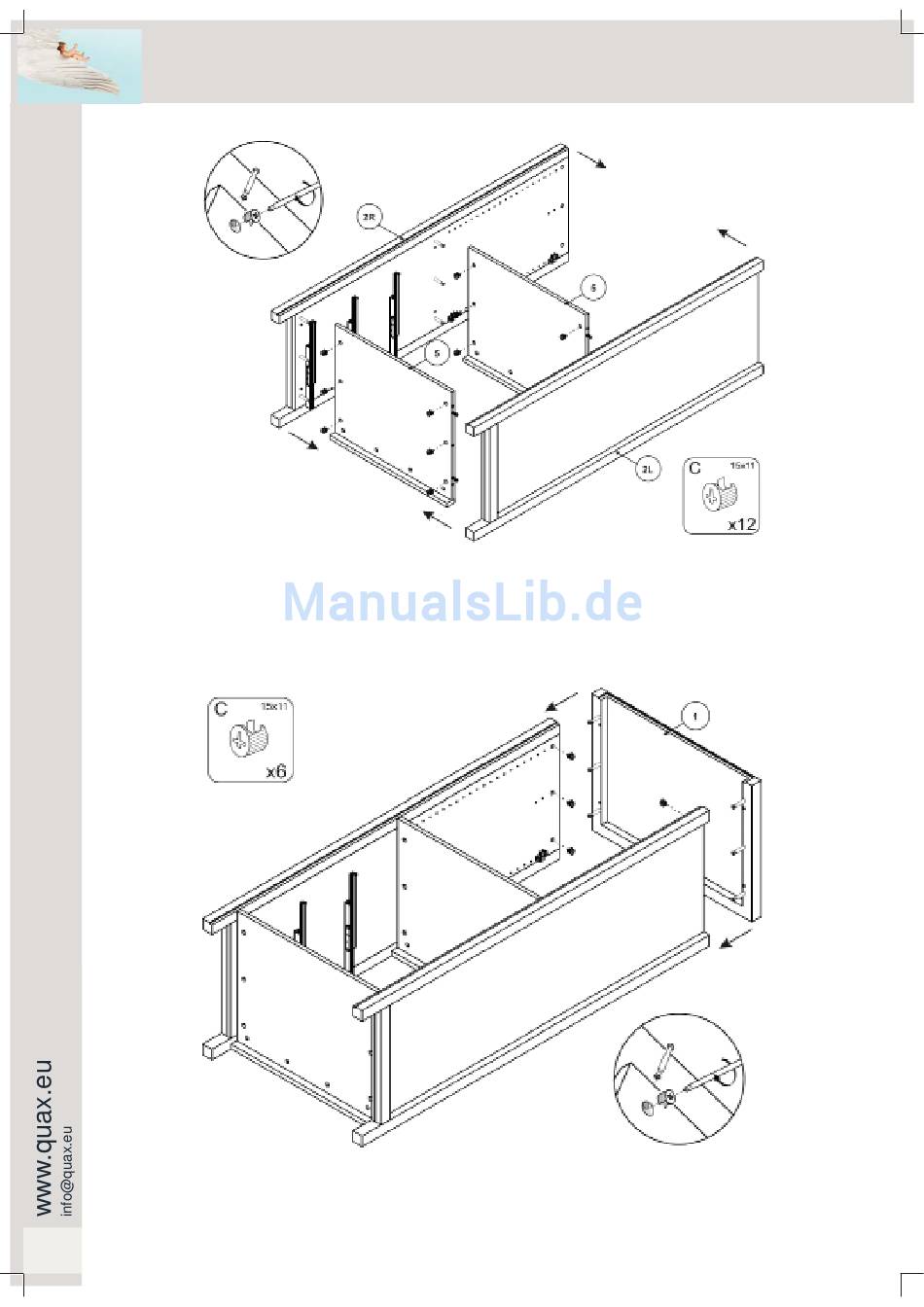

Step 3 : Use the parts of step 1 and 2 and twelve eccentrics C
Now use a clean blanket, remove screws and the like and place all parts with their front on the
Insert six eccentrics (C) in the drillings provided at the underside of the bottoms (5). Push the bottoms with their
dowels into the drillings and over the connectors on the right side (2R) and fasten the eccentrics. Push the left
side (2L) with its connectors in the holes and over the dowels on the bottoms. Fasten the eccentrics.
Step 4 : Use the parts of step 2 and 3 and fourteen eccentrics C
Insert six eccentrics (C) into the holes provided at the top of the sides. Push the top (1) with its connectors into
the openings and over the dowels on the sides and tighten the eccentrics.
36
Kast met 3 laden en 1 deur
Kinderbed met verstelbare bodem
01 01 43XX 54 04 16xx
Schrankwand mit 3 Schubladen und 1 Tür KInderbett mit verstelbarer Boden
Armoire avec 3 tiroirs et 1 porte
Lit enfant avec fond réglable
Babybed with adjustable bottom Wardrobe with 3 drawers and 1 door
blanket.
