Quax JOY Small Handbuch Seite 37

JOY Small
54 04 16xx

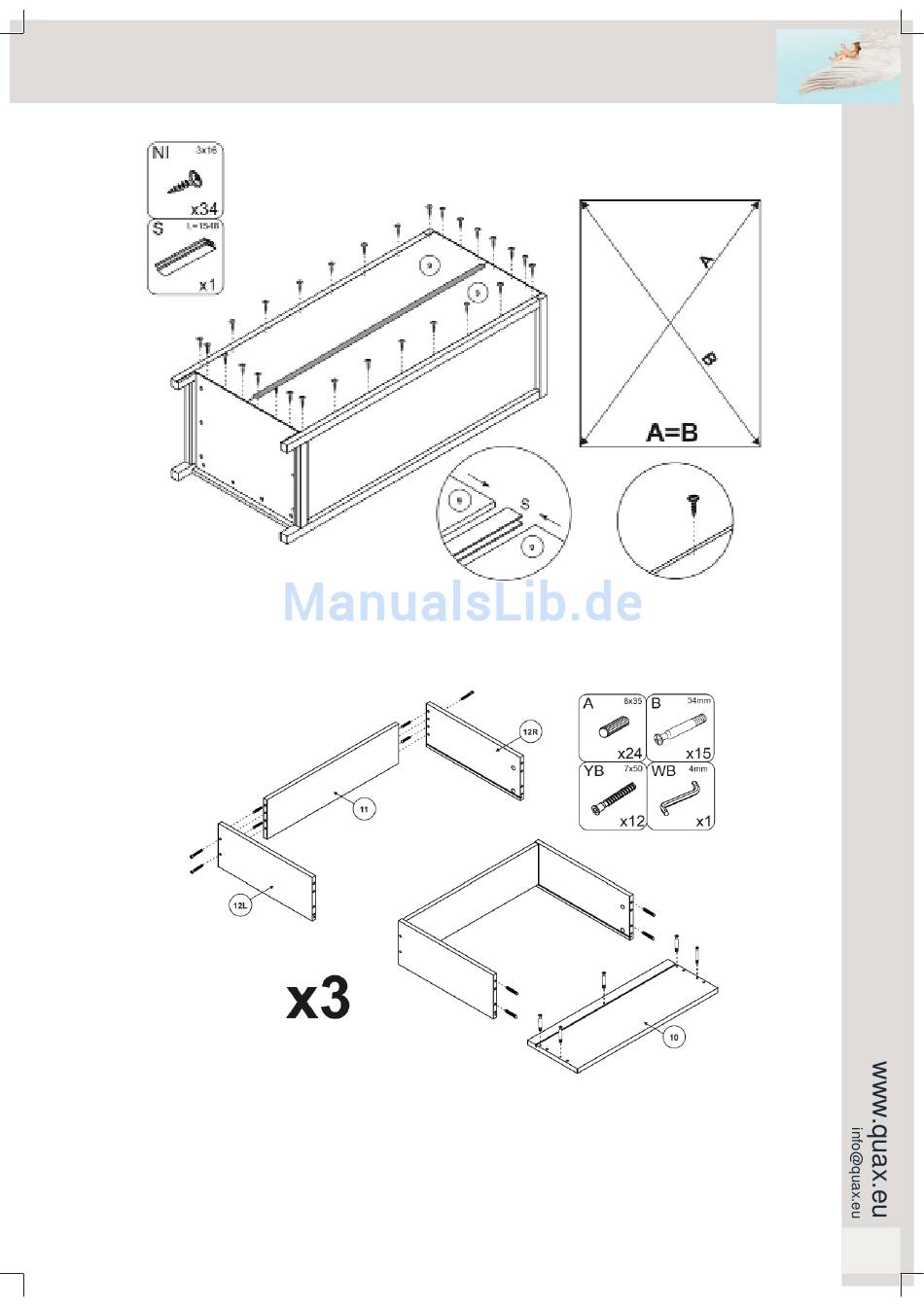

Step 5 : Use the assembled structure of step 4, both backs 9, the joint S and thirty-four wood screws NI
Connect both backs (9) with the joint (S). Place the backs on the backside of the wardrobe. Check if dis-
tance A is equal to B and fi x the backs with the wood screws (NI).
up.
Step 6 : Use all drawer sides 12L and 12R, the three backs 11, the three fronts 10, twenty-four wooden
dowels A, fi fteen connectors B and twelve bolts YB
Push per back (11) two wooden dowels (A) into the drillings on the sides. Insert a back between a couple
drawer sides (12L and 12R). Push the bolts (YB) through the holes on the outside of the side and tighten
them in the back. Push in each side two wooden dowels (A) into the drillings on the ends. Tighten per front
(10) fi ve connectors (B) in the openings provided on the inside.
Kast met 3 laden en 1 deur
Schrankwand mit 3 Schubladen und 1 Tür
Armoire avec 3 tiroirs et 1 porte
Wardrobe with 3 drawers and 1 door
Only now turn the wardrobe straight
