Thrustmaster T3PA-PRO Benutzerhandbuch Seite 9

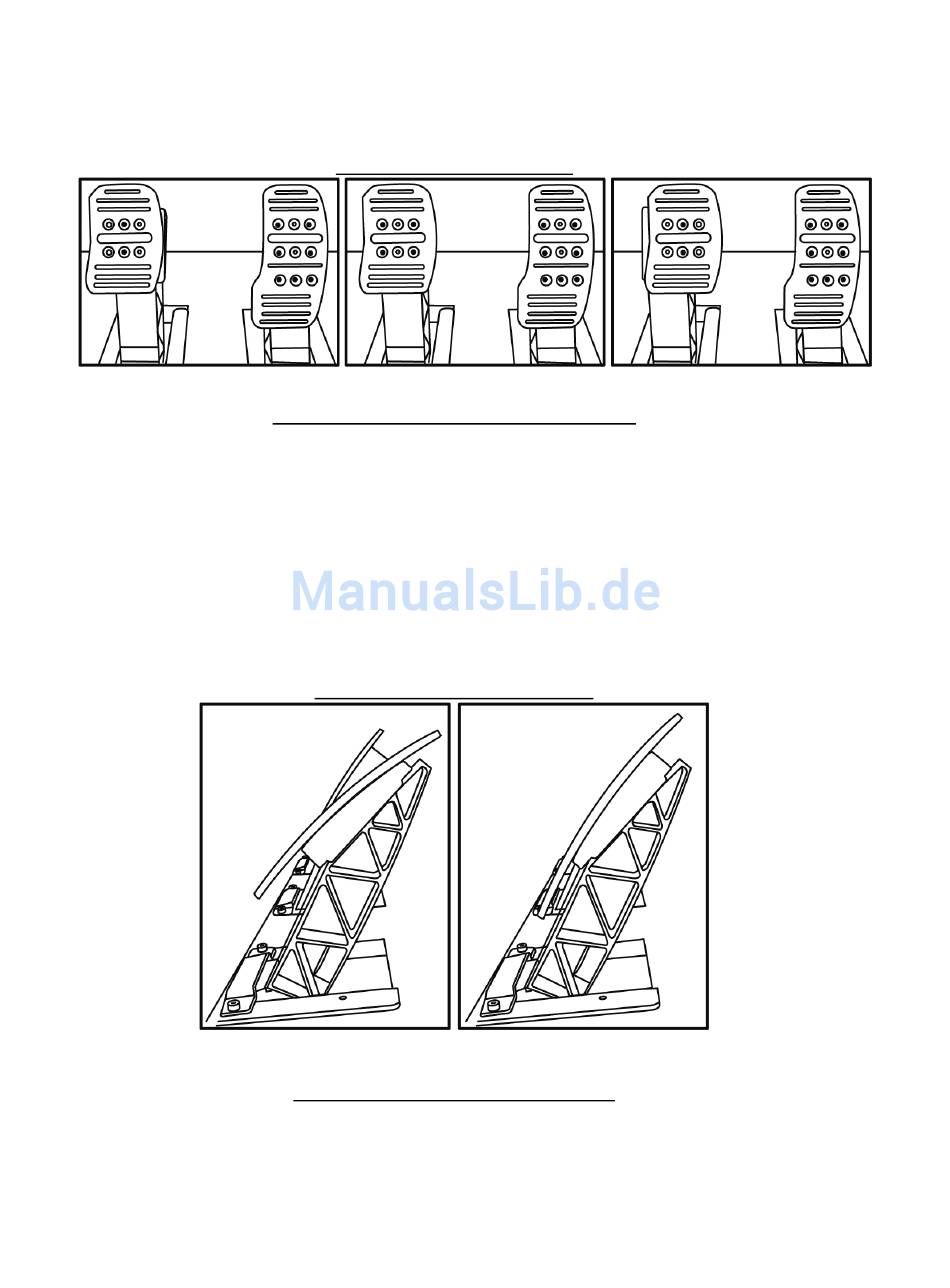

Adjusting the pedal SPACING
- Using the included 2.5 mm Allen key (20), loosen and remove the 2 screws holding the metal
head (17) and its support (21) in place.
- Once this is done, select the position of your choice (to the left, in the center or to the right) and
then replace and re-tighten the screws.
Left position
Adjusting the pedal TILT
- Using the included 2.5 mm Allen key (20), loosen and remove the 2 screws holding the metal
head (17) and its support (21) in place.
- Once this is done, turn the plastic head support (21) 180°, and then replace and re-tighten the
screws.
Examples with the brake pedal:
Center position (default)
Number of possible spacing positions per pedal:
- 3 for the accelerator pedal
- 3 for the brake pedal
- 3 for the clutch pedal
Examples with the accelerator pedal:
Less tilted position
Number of possible tilt positions per pedal:
- 2 for the accelerator pedal
- 2 for the brake pedal
- 2 for the clutch pedal
More tilted position (default)
8/17
Right position
