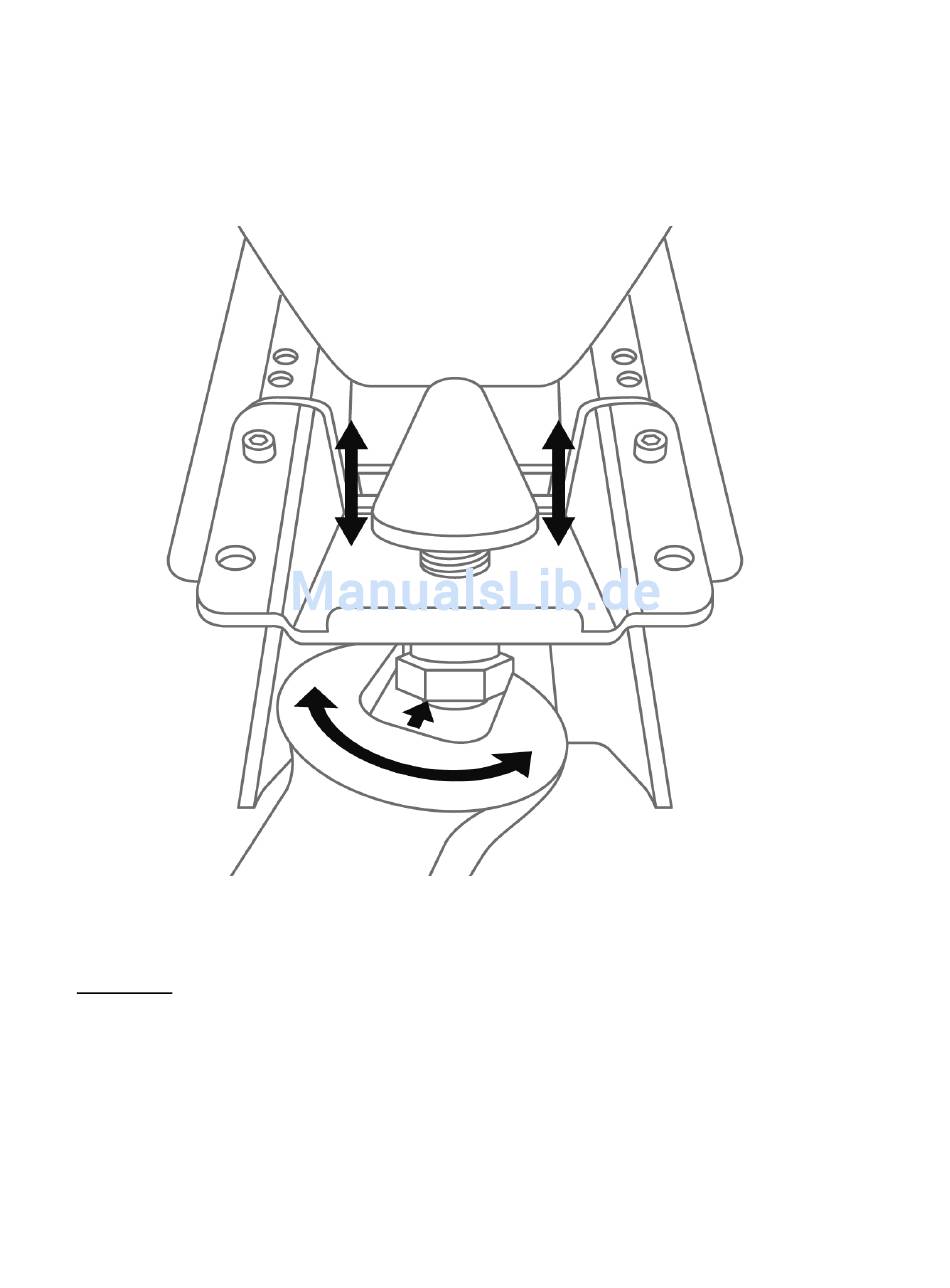

Adjusting the range of TRAVEL and resistance FORCE of the brake pedal with
the CONICAL RUBBER BRAKE MOD (5) installed
- Using a 14 mm open-end wrench (not included), slightly loosen the fastening and adjustment nut
(6).
- Depending on your preference, move the CONICAL RUBBER BRAKE MOD (5) a bit closer to or
farther away from the back of the brake pedal.
- Once you have selected the position, simply re-tighten the fastening and adjustment nut (6) using
the 14 mm open-end wrench.
Depending on the position you have selected, the resistance of the CONICAL RUBBER
BRAKE MOD will be between 44 lbs / 20 kg (when the mod is farther away from the pedal)
and 66 lbs / 30 kg (when the mod is closer to the pedal).
Please note: If the CONICAL RUBBER BRAKE MOD is too close to the back of the brake pedal's
arm, it may happen that the pedal's values do not completely return to zero when you release the
pedal very lightly.
If that is the case:
* In the options of the game you are playing, add a small dead zone at the start of the brake pedal's
range of travel; or
* Move the CONICAL RUBBER BRAKE MOD a bit farther away from the back of the brake pedal's
arm.
