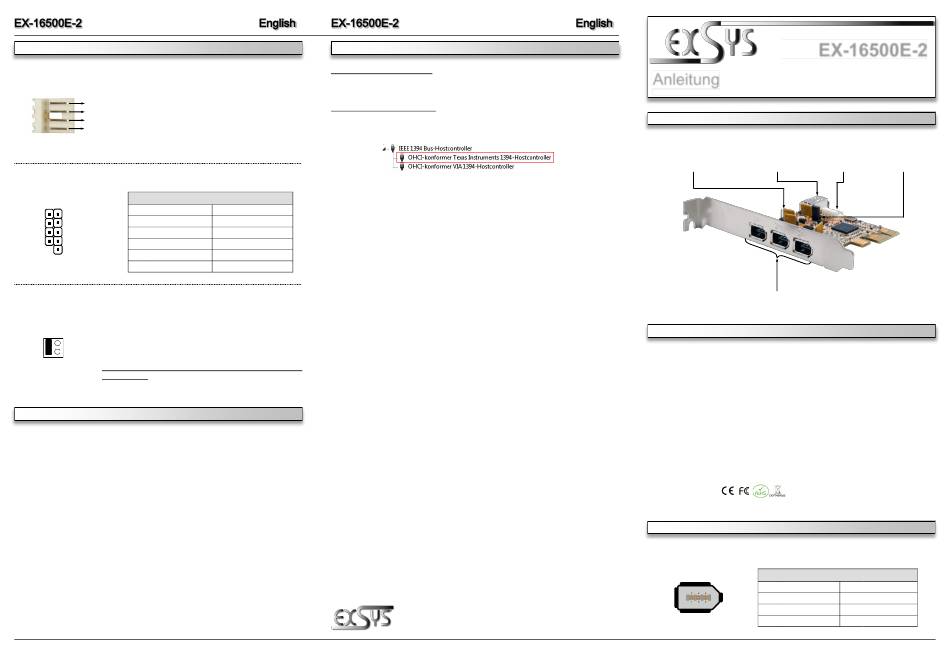

Exsys EX-16500E-2 Anleitung

CONNECTOR & JUMPER SETTINGS
4-Pin Floppy Connector:
It is not mandatory to connect the EX-16500E-2 to the PC
power supply, but it is recommended for stable operation! If
jumper JP1 is set to AUX, the connector must be connected
1 +5V
to the PC power supply, otherwise the card will not be
2 GND
supplied with power!
3 GND
4 +12V Please pay attention
Attention! Never plug in or unplug while the PC is swit-
ched on!
10-Pin Connector:
10-Pin FireWire 1394a Connector
Pin Signal
TPA+ TPA-
GND GND 1 NTPAD+
TPB+ TPB-
2 NTPAD-
+12V +12V
3 GND
KEY GND
4 GND
5 NTPBD+
JP1:
PCIE = Power from PCI-Express BUS (Factory Setting)
PCIE AUX
AUX = Power from PC power supply
(Direct power from PC power supply, provide an sufficient power
for devices with high power consumption)
4-Pin Floppy Connector must then be connected to the PC
power supply!
HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-16500E-2. Please refer
your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Now install the power supply via the 4-Pin Floppy Connector.
5. Then attach the card with a screw to the rear panel of the computer.
6. Gently replace your computer's cover and the mounting screws.
5
DRIVER INSTALLATION
Alle Operating Systems
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „IEEE 1394-Hostcontroller" the following
to the correct polarity! new entry:
If you see this or a similar information the device is installed correctly.
Pin Signal
6 NTPBD-
7 +12V
8 +12V
9 NC
10 GND
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
EX-16500E-2
Anleitung
Vers. 1.0 / 31.01.23
AUFBAU
1x 6-Pin 1394a Buchse
4-Pin Floppy
1x interner Pfostenstecker (Wird mit dem externen Anschluss für
Anschluss J13 geteilt)
für Front Bay Hubs PC-Netzteil
3x 6-Pin 1394a Buchse
BESCHREIBUNG & TECHNISCHE DATEN

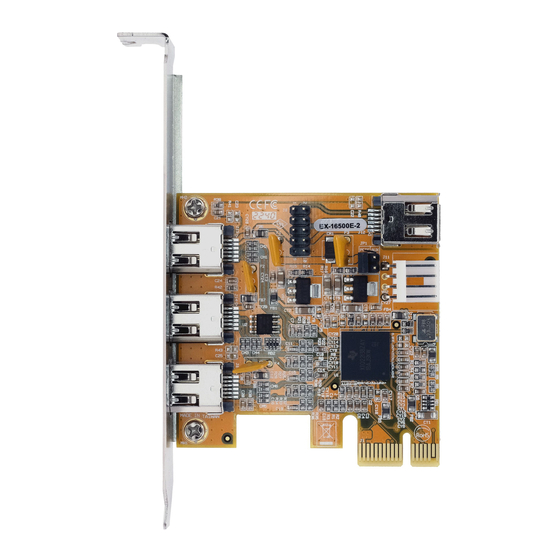

Die EX-16500E-2 ist eine FireWire 1394a PCI-Express Karte. Sie ist extern mit drei 6-Pin und
intern mit einer 6-Pin 1394a Buchse ausgestattet. Die EX-16500E-2 unterstützt alle PCI-
Express Slots von x1 bis x16. Der serielle PCI-Express Bus unterstützt optimal die Leistung des
schnellen Texas Instrument Chipsatz. Die EX-16500E-2 gewährleistet so eine sichere Daten-
übertragung und exzellente Performance von bis zu 400 Mbit/s! Die Karte benötigt nicht zwin-
gend zusätzlichen Strom vom PC Netzteil, jedoch wird es empfohlen den 4-Pin Floppy An-
schluss mit dem PC Netzteil zu verbinden.
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: Windows ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx / MAC /
Linux
Anschlüsse: 3x 6-Pin 1394a (extern), 1x 6-Pin 1394a (intern) ,
1x 10-Pin Pfostenstecker, 1x 4-Pin Floppy Anschluss
Lieferumfang: EX-16500E-2, Low Profile Bügel, Anleitung
Zertifikate:
ANSCHLÜSSE & JUMPER EINSTELLUNG
6-Pin FireWire 1394a Buchse:
6-Pin FireWire 1394a Buchse
Pin Signal
1 Power
2 Ground
3 TPB-
1
Stromquelle wählen
PCI-E oder AUX
Pin Signal
4 TPB+
5 TPA-
6 TPA+
