Transport And Start Up; Transport And Installation; Assembly - Jet JPT-10B-M Gebrauchsanleitung

L....Jointer infeed table adjust knob
M....Jointer infeed table lock knobs
N....Jointer fence tilt lock handle
O....Power cord storage hooks
P....Rubber feet
Q....Leg stand

5. Transport and start up

5.1 Transport and installation

The machine is designed to operate in closed rooms and must
be placed stable on firm and levelled ground.
The machine can be bolted down if required.
Wrap the power cord around the storage hooks (O, fig 2)
For packing reasons the machine is not completely assembled.

5.2 Assembly

If you notice any transport damage while unpacking, notify
your supplier immediately. Do not operate the machine!
Do not dispose the carton or packing material until the
machine is assembled and is running satisfactorily.
Dispose of the packing in an environmentally friendly manner.
Clean all rust protected surfaces with a mild solvent.
Stand assembly
Attach legs (N), top supports (H) and lower supports (E) with
carriage bolts (Y), flat washers (CC), lock washers (DD) and hex
nuts (EE).
Hand-tighten only at this time.
Attach the rubber feet (LL) to the legs, using hex cap screws
(X), flat washers (CC) and hex nuts (EE).
Place stand upright on a level surface and tighten allo hex
nuts.

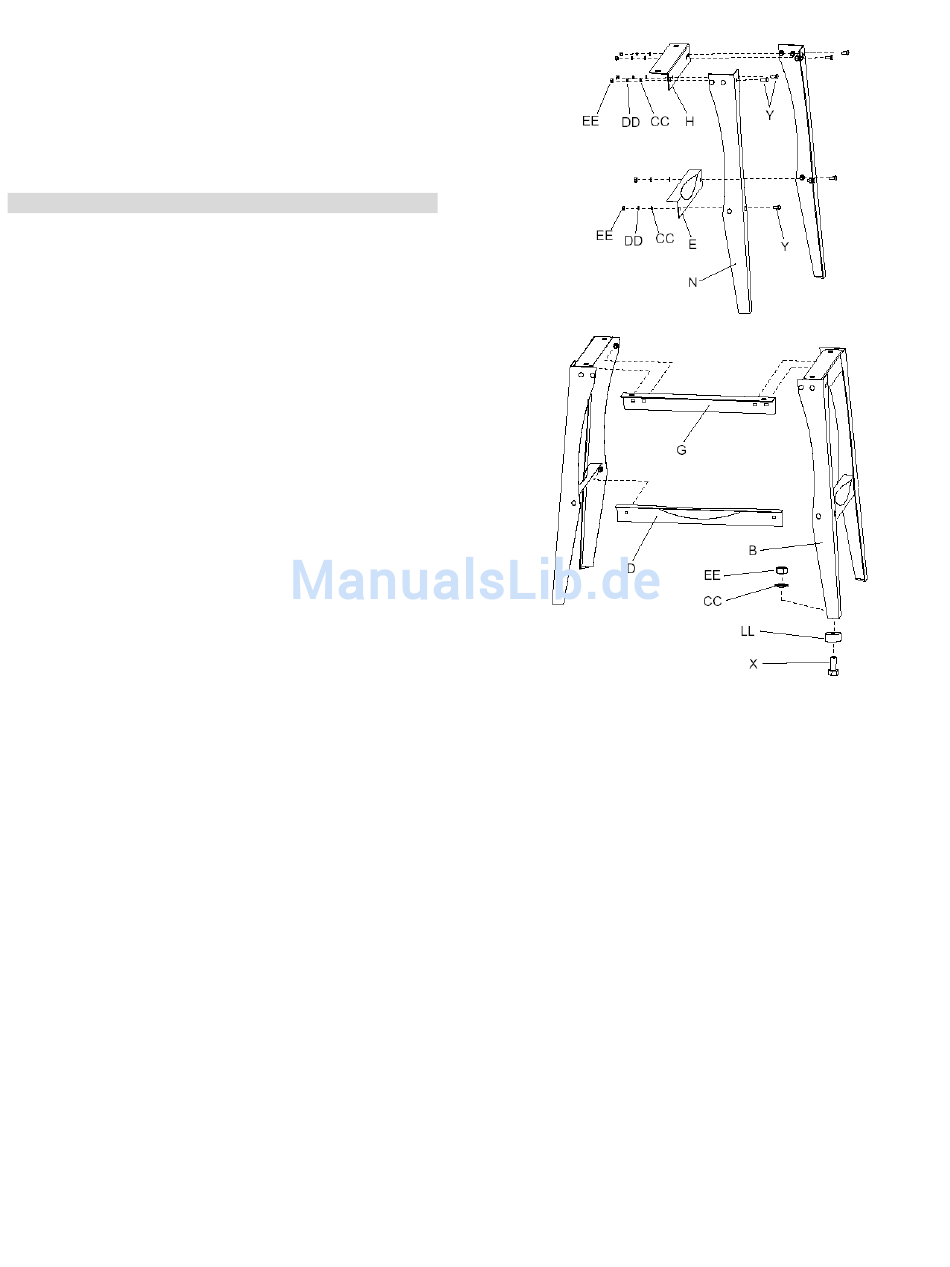

Fig 3
