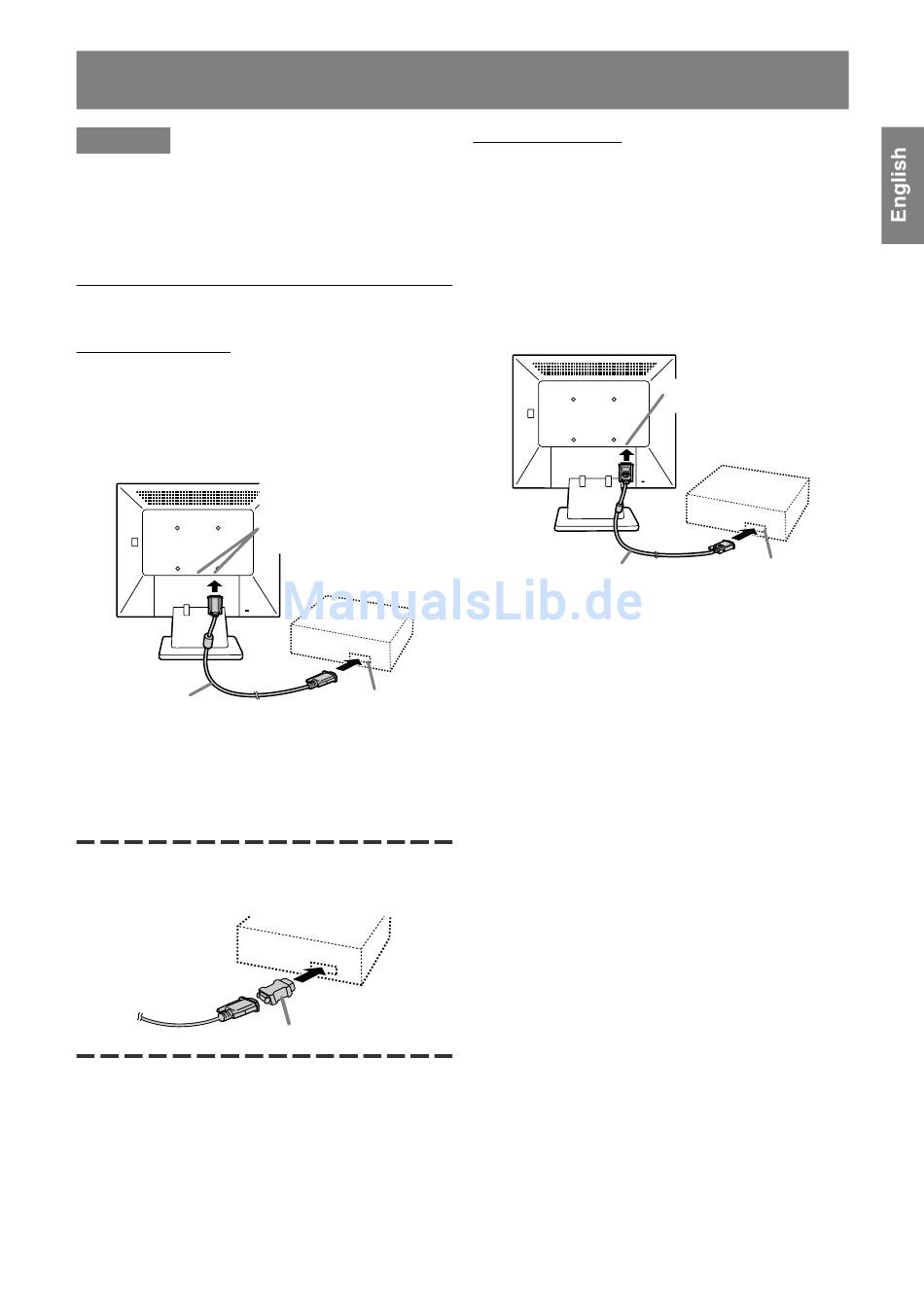

Connecting the monitor and turning the monitor on and off

CAUTION!
- When connecting, ensure that both the monitor
and computer are switched off.
- Be careful not to overly bend the cable or add
extension cords as this could lead to a
malfunction.

Connecting the monitor to a computer

Analog connection
Connect the analog signal cable to the analog RGB
output terminal of the computer.
- For analog connection, use the analog signal
cable accessory or a commercially available one
(both ends should be mini D-sub15 pin).
Analog signal cable
- Paying attention to connector direction, firmly
insert the signal cable vertically into the
connector, and then tighten the screws at both
sides.
If connecting to a D-sub15 pin 2 row Apple Power
Macintosh, attach a Macintosh conversion adapter
(commercially available) to the analog signal cable.
Macintosh conversion adapter
Note:
- If connecting to the Sun Ultra series, a
conversion adapter (commercially available) may
be required.
Analog RGB input terminal
1 and 2
You can connect to either
side.
Analog RGB output
terminal
Digital connection
Connect the separately-sold digital signal cable
(NL-C01E) to the digital RGB output terminal of the
computer.
- The monitor has an input for connecting to a
computer with a DVI-compatible output connector
(DVI-D24 pin or DVI-I29 pin) and SXGA output
capability. (Depending on the type of computer to
be connected, the display may not work
correctly.)
Digital signal cable
- Paying attention to connector direction, firmly
insert the signal cable vertically into the
connector, and then tighten the screws at both
sides.
11
DVI-D input terminal
Digital RGB output
terminal
