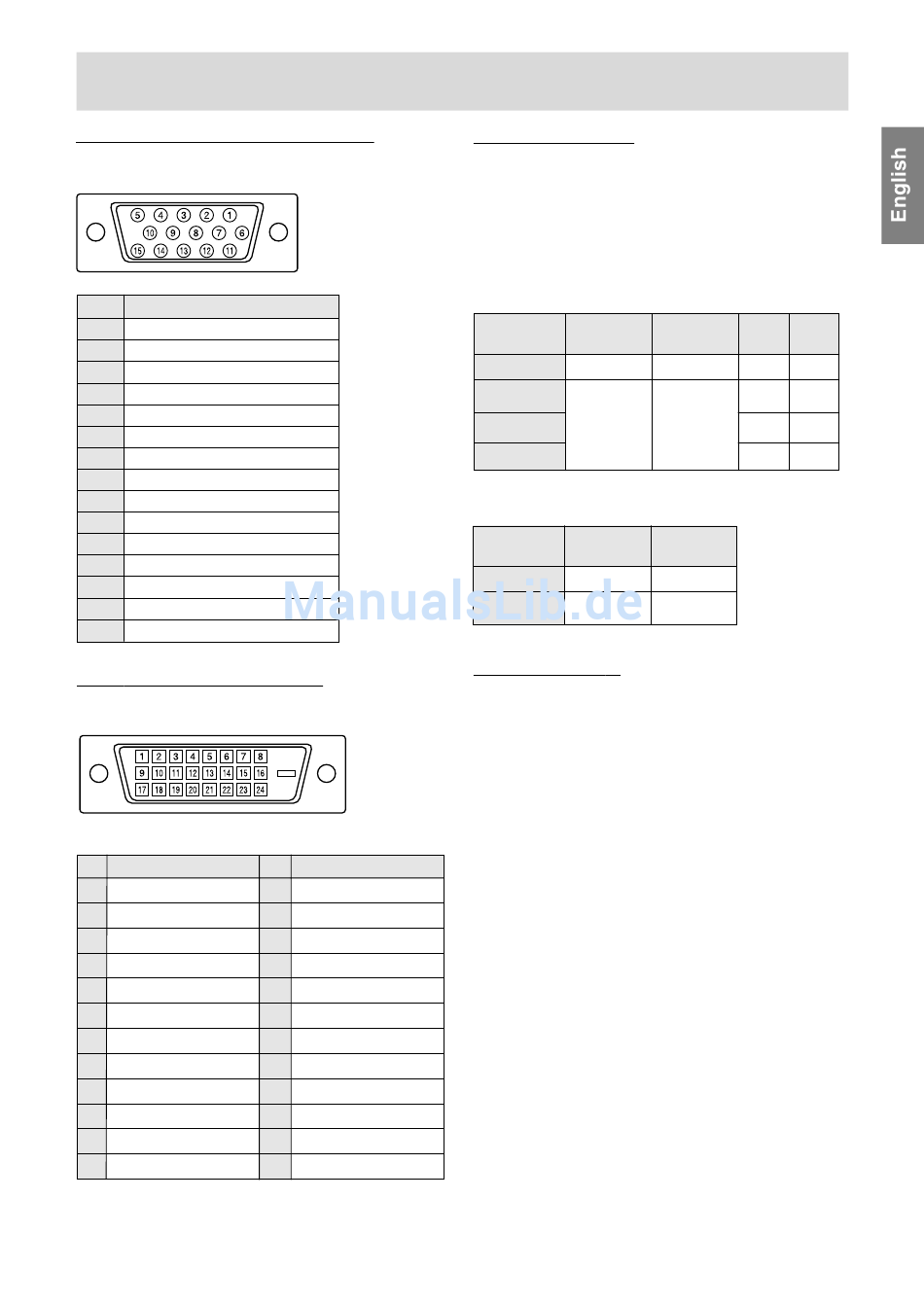

The analog RGB input connector pin
(Mini D-sub connector with 15 pins)
No. Function
1 Red video signal input
2 Green video signal input
3 Blue video signal input
4 GND
5 GND
6 For red video signal GND
7 For green video signal GND
8 For blue video signal GND
9 +5V
10 GND
11 N.C.
12 DDC data
13 For Hsync signal input
14 For Vsync signal input
15 DDC clock
The DVI-D input connector pin
(DVI-D connector with 24 pins)
No. Function
1 TMDS data 2-
2 TMDS data 2+
3 TMDS data 2/4 shield 15 GND
4 N.C.
5 N.C.
6 DDC clock
7 DDC data
8 N.C.
9 TMDS data 1-
10 TMDS data 1+
11 TMDS data 1/3 shield 23 TMDS clock +
12 N.C.
Specifications
No. Function
13 N.C.
14 +5V
16 Hot plug detection
17 TMDS data 0-
18 TMDS data 0+
19 TMDS data 0/5 shield
20 N.C.
21 N.C.
22 TMDS clock shield
24 TMDS clock -
Power management
The monitor is based on the VESA DPMS and the
DVI DMPM standards.
To activate the monitor's Power Management
function, both the video card and the computer
must conform to the VESA DPMS standard and the
DVI DMPM standard.
DPMS: Display Power Management Signaling
DPMS mode Screen
ON Display on
STANDBY
SUSPEND Display off
OFF
DMPM: Digital Monitor Power Management
DMPM mode Screen
ON Display on
OFF Display off
DDC (Plug & Play)
This monitor supports the VESA DDC (Display
Data Channel) standard.
DDC is a signal standard for carrying out Plug &
Play functions on the monitor or PC. It transfers
information such as degree of resolution between
the monitor and PC. You can use this function if
your PC is DDC compliant and if it is set so that it
can detect the Plug & Play monitor.
There are many varieties of DDC due to the
differences between systems. This monitor works
with DDC2B.
25
Power
H-sync V-sync
consumption
43 W Yes Yes
No Yes
2.8 W Yes No
No No
Power
consumption
43 W
2.8 W
