BRH Broadcast Cable Accessories

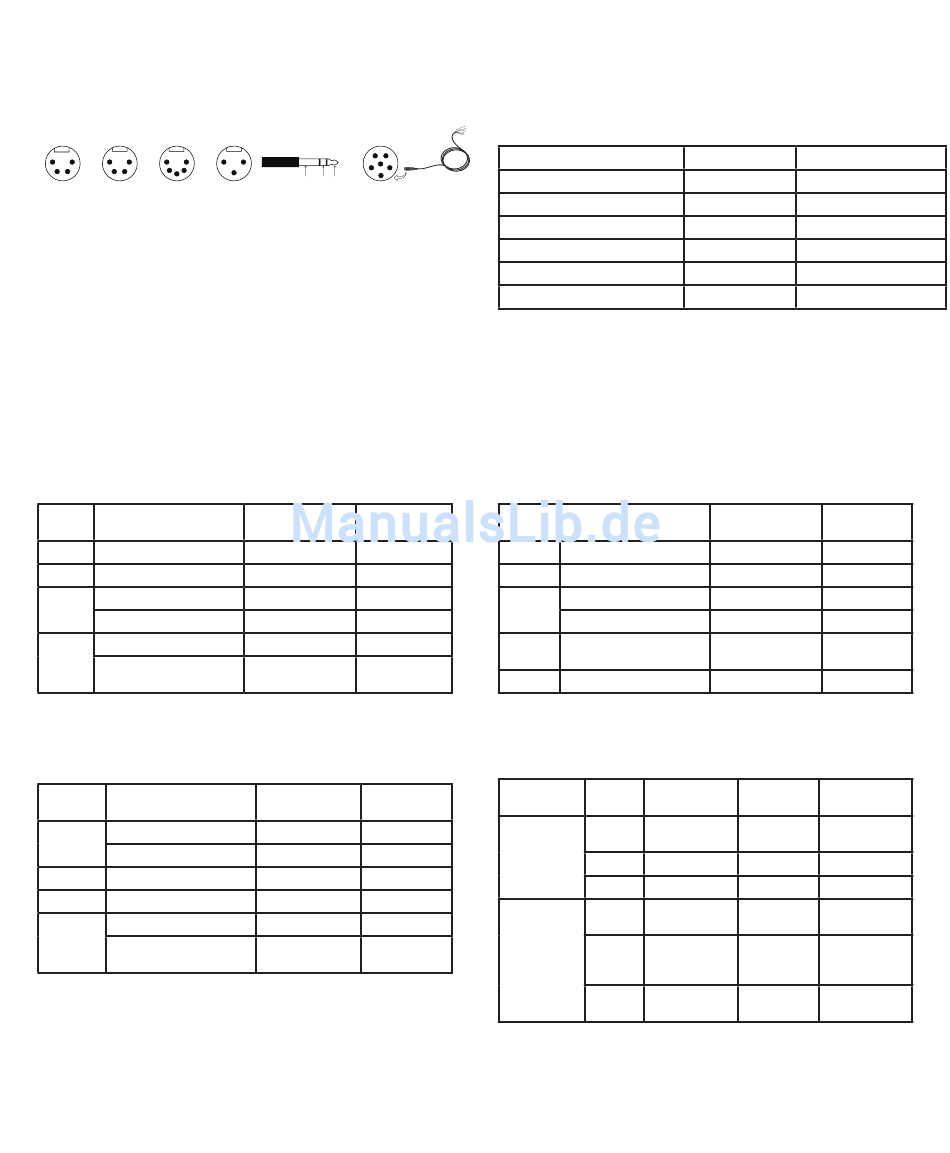

The following tables describe wiring for BRH detachable cables. All BRH detachable cables contain six conductors with discrete termination at the
Shure 6-pin connector that plugs into the headset. For pre-terminated cables, conductors (and signal) are tied to common contacts at the other end of
the cable where shown.
1 4 4 1 1 5
2 4
2 3 3 2
3
NXLR4 NXLR4-FEM NXLR5
(male connector) (female connector) (male connector)
Connector Pin Diagram
BCASCA-NXLR4 (male connector)
4-Pin Signal
XLR-M
1 Mic −
2 Mic +
3 Mic Ground
Headphone Audio Ground
4 Headphone Audio 1
Headphone Audio 2 (boom
side)
BCASCA-NXLR4-FEM (female connector)
4-Pin Signal
XLR-F
1 Mic −
Mic Ground
2 Mic +
3 Headphone Audio Ground
4 (thru Headphone Audio 1
47uF cap)
Headphone Audio 2 (boom
side)
1 5
1 2
6
2 4
3
3
Sleeve Ring Tip
NXLR3QI BCASCA1 (unterminated)
3-pin XLR-M and 6.3 mm (1/4") TRS
Wire 6-Pin Headset
Connector
Black 2
Red 1
Shield (uncoated) 3
White 6
Orange 4
Green 5
Wire 6-Pin Headset
Connector
Black 2
Shield (uncoated) 3
Red 1
White 6
Orange 4
Green 5
BCASCA1 (unterminated)
Signal
Mic +
Mic −
Mic Ground
Headphone Audio 1
Headphone Audio 2 (boom side)
Headphone Audio Ground
BCASCA-NXLR5 (male connector)
5-Pin Signal
XLR-M
1 Mic −
2 Mic +
3 Mic Ground
Headphone Audio Ground
4 Headphone Audio 2 (boom
side)
5 Headphone Audio 1
BCASCA-NXLR3QI
Connector Contact Signal
3-Pin XLR-M 1 Mic Ground
2 Mic +
3 Mic −
6.3 mm (1/4") Sleeve Headphone Au-
TRS dio Ground
Tip Headphone
Audio 2 (boom
side)
Ring Headphone
Audio 1
Wire 6-Pin Headset Connector
Red 1
Black 2
Shield (uncoated) 3
Yellow 4
Orange 5
White 6
Wire 6-Pin Headset
Connector
Black 2
Red 1
Shield (uncoated) 3
White 6
Green 5
Orange 4
Wire 6-Pin Headset
Connector
Shield 3
(uncoated)
Red 1
Black 2
White 6
Green 5
Orange 4
