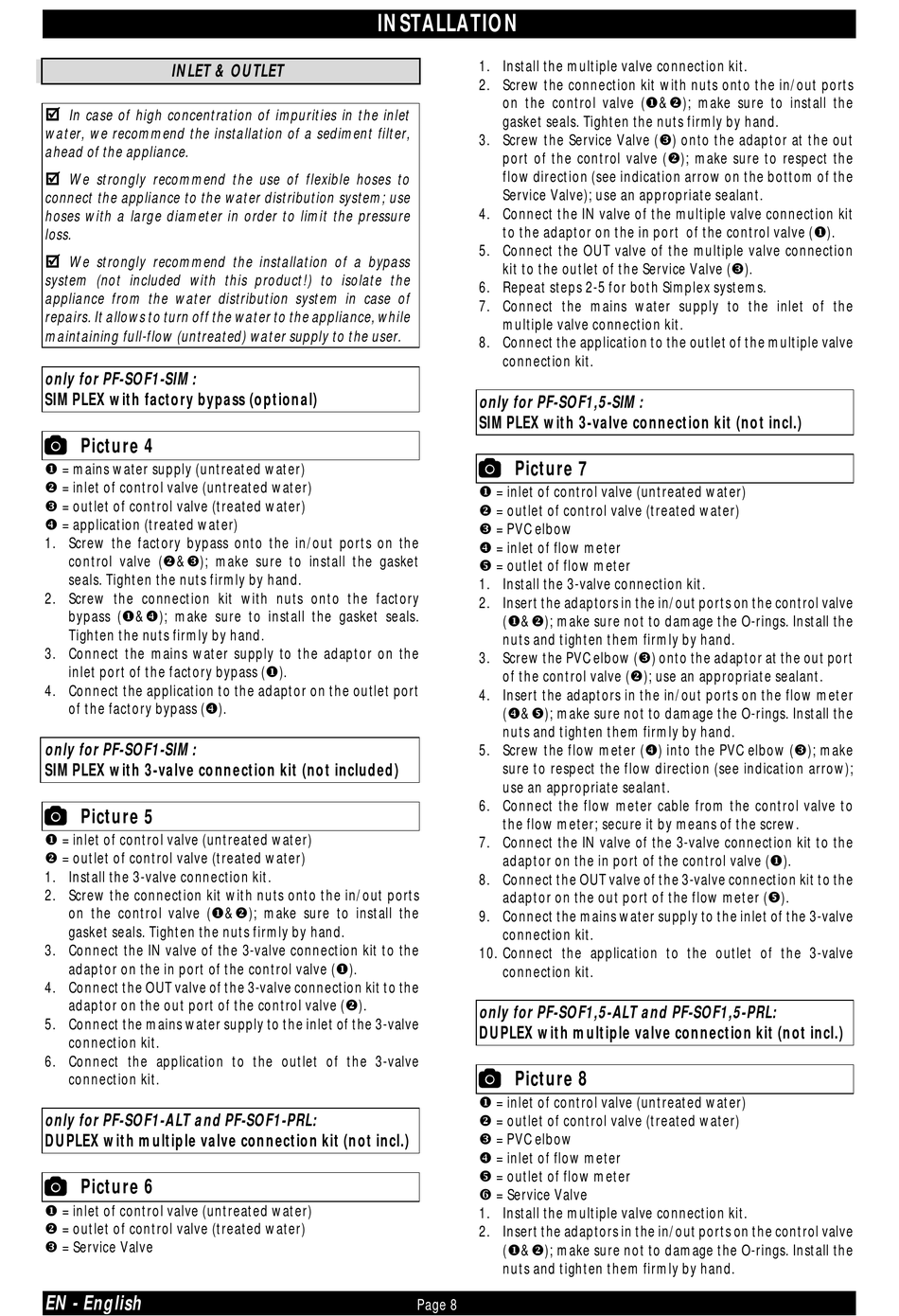

INLET & OUTLET

In case of high concentration of impurities in the inlet
water, we recommend the installation of a sediment filter,
ahead of the appliance.

We strongly recommend the use of flexible hoses to
connect the appliance to the water distribution system; use
hoses with a large diameter in order to limit the pressure
loss.

We strongly recommend the installation of a bypass
system (not included with this product!) to isolate the
appliance from the water distribution system in case of
repairs. It allows to turn off the water to the appliance, while
maintaining full-flow (untreated) water supply to the user.
only for PF-SOF1-SIM:
SIMPLEX with factory bypass (optional)
 Picture 4
 = mains water supply (untreated water)
 = inlet of control valve (untreated water)
 = outlet of control valve (treated water)
 = application (treated water)
1. Screw the factory bypass onto the in/out ports on the
control valve (&); make sure to install the gasket
seals. Tighten the nuts firmly by hand.
2. Screw the connection kit with nuts onto the factory
bypass (&); make sure to install the gasket seals.
Tighten the nuts firmly by hand.
3. Connect the mains water supply to the adaptor on the
inlet port of the factory bypass ().
4. Connect the application to the adaptor on the outlet port
of the factory bypass ().
only for PF-SOF1-SIM:
SIMPLEX with 3-valve connection kit (not included)
 Picture 5
 = inlet of control valve (untreated water)
 = outlet of control valve (treated water)
1. Install the 3-valve connection kit.
2. Screw the connection kit with nuts onto the in/out ports
on the control valve (&); make sure to install the
gasket seals. Tighten the nuts firmly by hand.
3. Connect the IN valve of the 3-valve connection kit to the
adaptor on the in port of the control valve ().
4. Connect the OUT valve of the 3-valve connection kit to the
adaptor on the out port of the control valve ().
5. Connect the mains water supply to the inlet of the 3-valve
connection kit.
6. Connect the application to the outlet of the 3-valve
connection kit.
only for PF-SOF1-ALT and PF-SOF1-PRL:
DUPLEX with multiple valve connection kit (not incl.)
 Picture 6
 = inlet of control valve (untreated water)
 = outlet of control valve (treated water)
 = Service Valve
EN - English

INSTALLATION

1. Install the multiple valve connection kit.
2. Screw the connection kit with nuts onto the in/out ports
on the control valve (&); make sure to install the
gasket seals. Tighten the nuts firmly by hand.
3. Screw the Service Valve () onto the adaptor at the out
port of the control valve (); make sure to respect the
flow direction (see indication arrow on the bottom of the
Service Valve); use an appropriate sealant.
4. Connect the IN valve of the multiple valve connection kit
to the adaptor on the in port of the control valve ().
5. Connect the OUT valve of the multiple valve connection
kit to the outlet of the Service Valve ().
6. Repeat steps 2-5 for both Simplex systems.
7. Connect the mains water supply to the inlet of the
multiple valve connection kit.
8. Connect the application to the outlet of the multiple valve
connection kit.
only for PF-SOF1,5-SIM:
SIMPLEX with 3-valve connection kit (not incl.)
 Picture 7
 = inlet of control valve (untreated water)
 = outlet of control valve (treated water)
 = PVC elbow
 = inlet of flow meter
 = outlet of flow meter
1. Install the 3-valve connection kit.
2. Insert the adaptors in the in/out ports on the control valve
(&); make sure not to damage the O-rings. Install the
nuts and tighten them firmly by hand.
3. Screw the PVC elbow () onto the adaptor at the out port
of the control valve (); use an appropriate sealant.
4. Insert the adaptors in the in/out ports on the flow meter
(&); make sure not to damage the O-rings. Install the
nuts and tighten them firmly by hand.
5. Screw the flow meter () into the PVC elbow (); make
sure to respect the flow direction (see indication arrow);
use an appropriate sealant.
6. Connect the flow meter cable from the control valve to
the flow meter; secure it by means of the screw.
7. Connect the IN valve of the 3-valve connection kit to the
adaptor on the in port of the control valve ().
8. Connect the OUT valve of the 3-valve connection kit to the
adaptor on the out port of the flow meter ().
9. Connect the mains water supply to the inlet of the 3-valve
connection kit.
10. Connect the application to the outlet of the 3-valve
connection kit.
only for PF-SOF1,5-ALT and PF-SOF1,5-PRL:
DUPLEX with multiple valve connection kit (not incl.)
 Picture 8
 = inlet of control valve (untreated water)
 = outlet of control valve (treated water)
 = PVC elbow
 = inlet of flow meter
 = outlet of flow meter
 = Service Valve
1. Install the multiple valve connection kit.
2. Insert the adaptors in the in/out ports on the control valve
(&); make sure not to damage the O-rings. Install the
nuts and tighten them firmly by hand.
