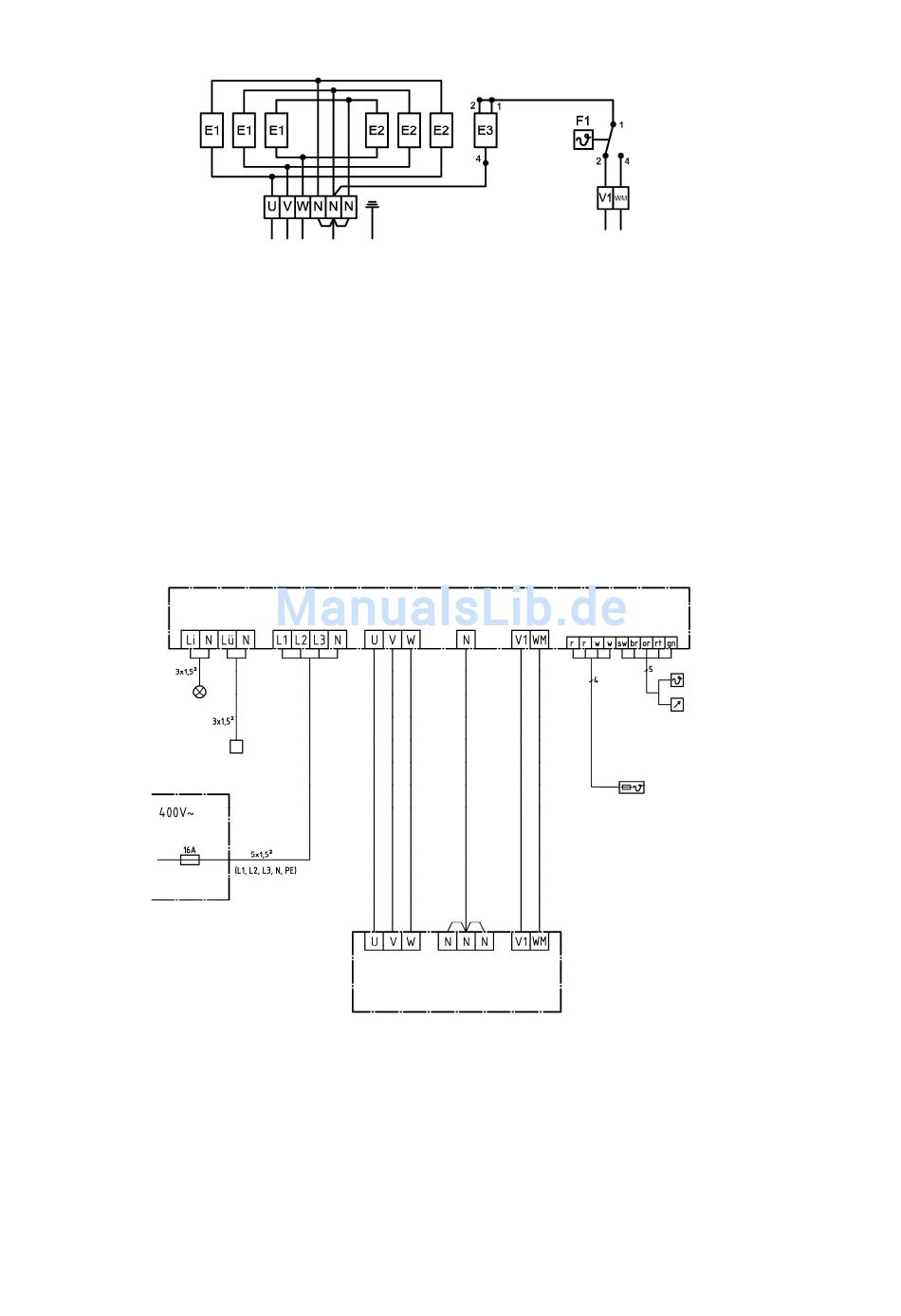

Internal circuit diagram Saunaheater
Triple phase 400V AC 3/N/PE
Fig.5
Connection diagram Saunaheater to all control units
Triple phase 400V AC 3/N/PE
Sauna cabin light
(if existing)
Sauna cabin fan
(if existing)
Power supply
Fig.6
24
Connection
cable 1
E1 Left heating element
5x1,5²
E2 Right heating element
E3 Heating plate
F1 Boil-dry protection
Control unit
Saunaheater with evaporator
Connection
cable 2
3x1,5²
Temperature sensor
and
Humidity sensor FTS II
Location:
Above sauna bench under the
ceiling of the sauna
Temperature sensor and
Temperature fuse F I
Location:
Above Saunaheater under the
ceiling of the sauna cabin.
All cables into the
All cables into the
All cables into the
All cables into the
All cables into the
Saunaheater and into the
Saunaheater and into the
Saunaheater and into the
Saunaheater and into the
Saunaheater and into the
sauna cabin must be heat
sauna cabin must be heat
sauna cabin must be heat
sauna cabin must be heat
resistance up to 140°C (use sauna cabin must be heat
resistance up to 140°C (use
resistance up to 140°C (use
resistance up to 140°C (use
silicon cables). resistance up to 140°C (use
silicon cables).
silicon cables).
silicon cables).
silicon cables).
cabin.
