Fitting the wall bracket

The wall bracket (Fig.1, Pos.1) and the spacer angle (Fig.1, Pos.6) are included with the sauna heater.
 With due consideration of the minimum distances, screw the wall bracket to the sauna wall using
the four 5x35 wood screws supplied (see Fig. 3b).
Caution: A board must be fitted behind the panels to provide support at the points where the screws
are screwed into the sauna wall; this is to ensure that the screws are firmly seated. Alternatively the
board can also be attached in front of the panels.
 To mount the spacer angle, unscrew the screw from the floor plate and screw fasten the spacer
angle at this position (see Fig. 3a).
 Insert the sauna heater in the wall bracket in such a manner that the spring tabs of the wall bracket
engage in the openings of the rear panel and tangibly click in place.

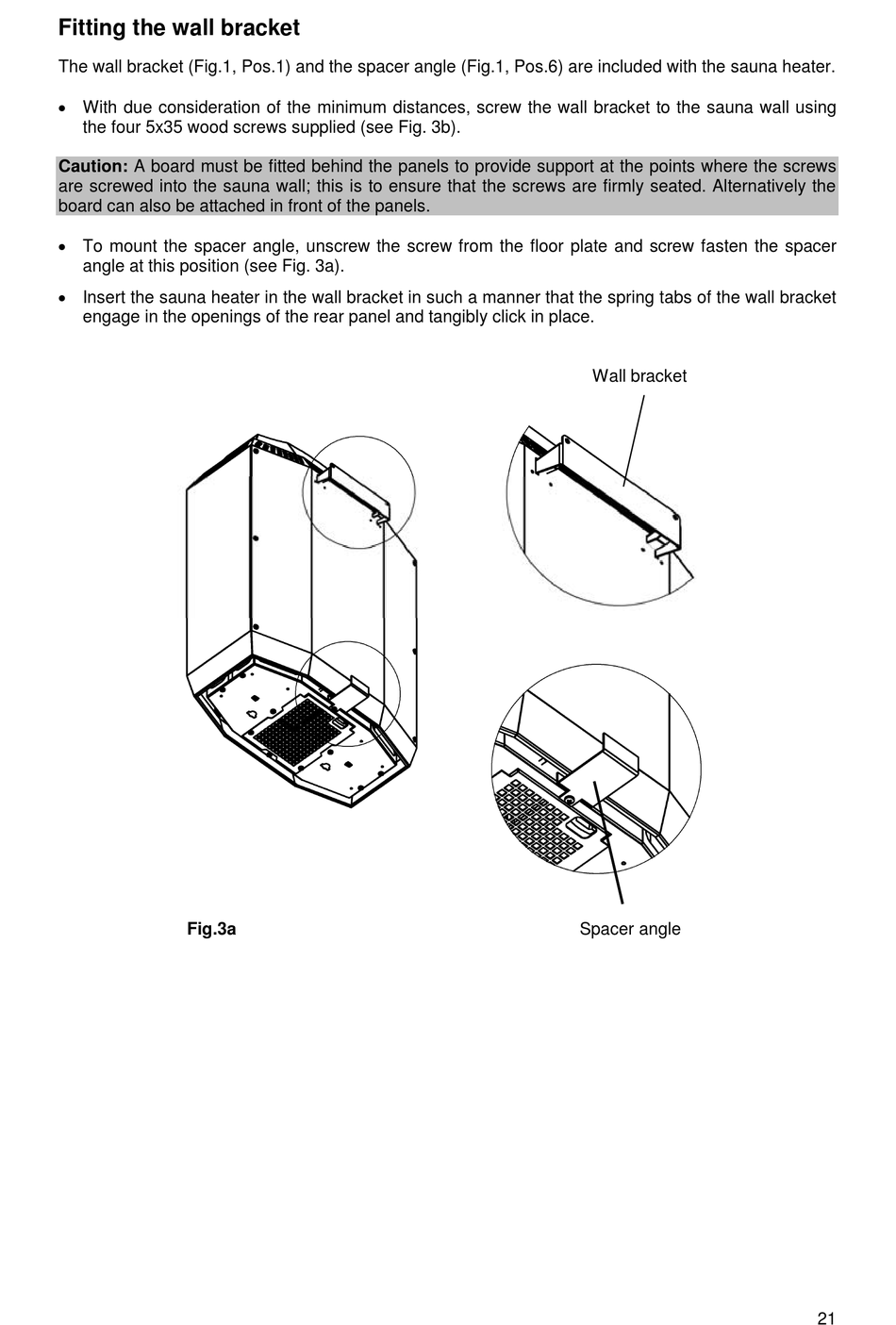

Fig.3a
Wall bracket
Spacer angle
