4. Take one banknote and check up the bottom border of a thickness slot.
For this purpose one banknote should pass freely between top (pic. C pos. 1) and
bottom (pic. C pos. 3) feed rollers according to pic. C*
If one banknote doesn't pass between top and bottom feed rollers, make a thickness slot
wider on 2-5 degrees (1 / 10 divisions) and check up again.
5. Take two banknotes and check up the top border of a thickness slot. For this purpose
two banknotes shouldn't pass freely between top and bottom feed rollers according to
pic. C*. If two banknotes don't pass between top and bottom feed rollers make a thick-
ness slot more narrow on 2-5 degrees (1 / 10 divisions) and check up again.
6. The thickness is correct if its bottom and top borders are set according to graphs 4
and 5.
* Attention: When you insert a banknote between the top and bottom feed rollers keep
with the left hand kick roller that it didn't rotate.

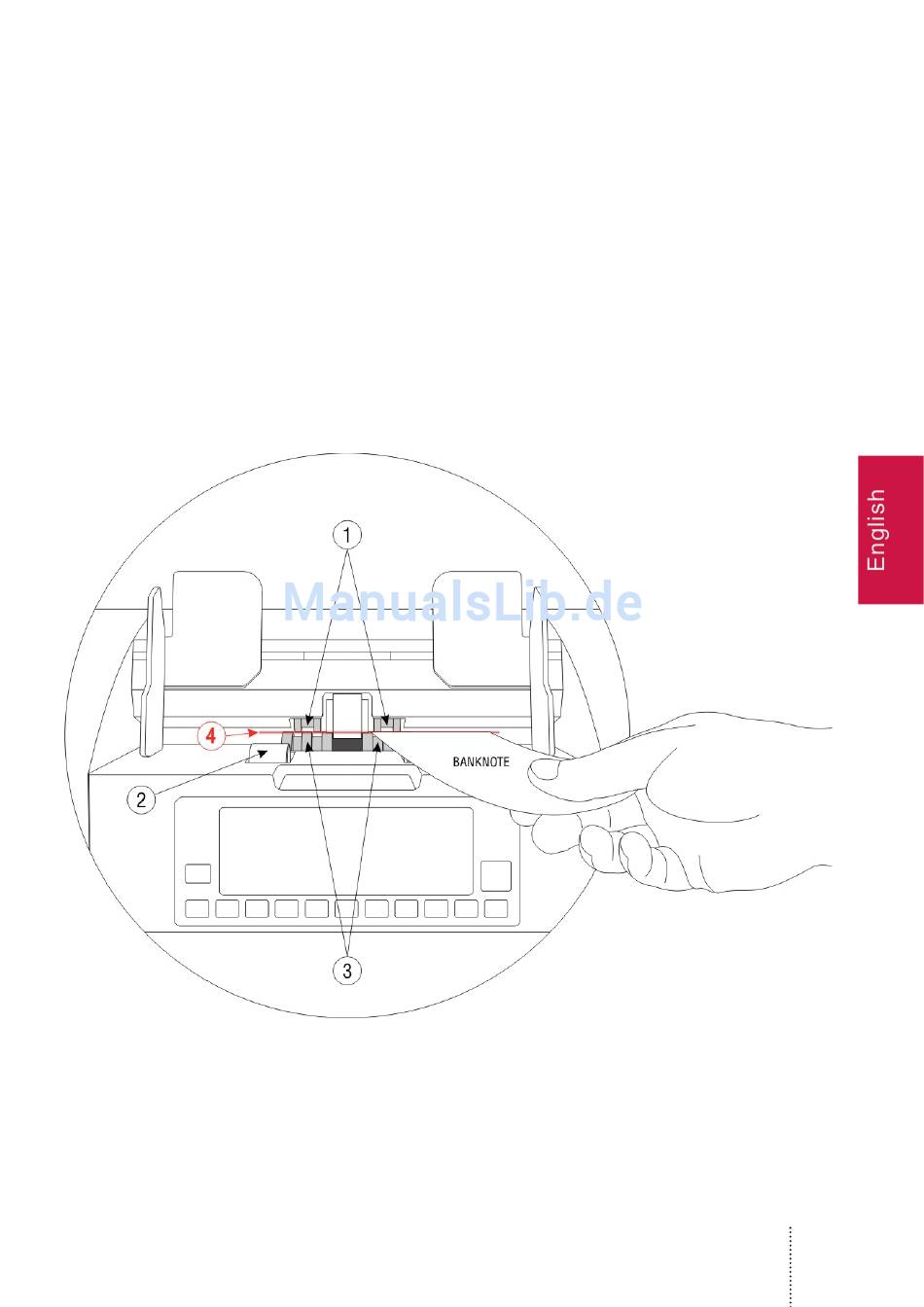

Symbols:
1 Top feed rollers
2 Kicker rollers
3 Bottom feed rollers
4 Thickness slot (between the top and bottom feed rollers)
Fig C
