Adjustment of the slot size and its correct setting

It is important to remember, for different currencies, depending on the thickness of the
banknotes, you must correctly adjust the slot (Figure C position 4) between the upper
and lower feed rollers. Adjusting the feeder slot size is possible by using the paper thick-
ness adjustment screw (Fig. 1-5). Turn the screw counterclockwise to decrease the
feeder slot size and clockwise to increase the size. Adjusting the feeder slot size should
be done smoothly, with adjustments of no more than 2-5 degrees (1/10 division).The
feeder slot should be larger for excessively worn banknotes, dirty banknotes and USD.
The feeder slot should be smaller for "new" banknotes and EURO banknotes.
- If adjusting the feeder slot size results in the sensor responding slowly, slow separa-
tion of joined banknotes, irregular stacking of banknotes, error "Tilted Check again"
and/or "Half note Check again", then the slot size should be smoothly increased.
- If adjusting the feeder slot size results in "Chain notes Check again" and/or "Double
notes Check again" error codes occurring frequently, then the slot size should be
smoothly decreased.
To check whether the setting of the feeder slot is correct, it is necessary to run the fol-
lowing steps:
1. Turn off the power.
2. Prepare two banknotes (in medium usage condition or nearly new).

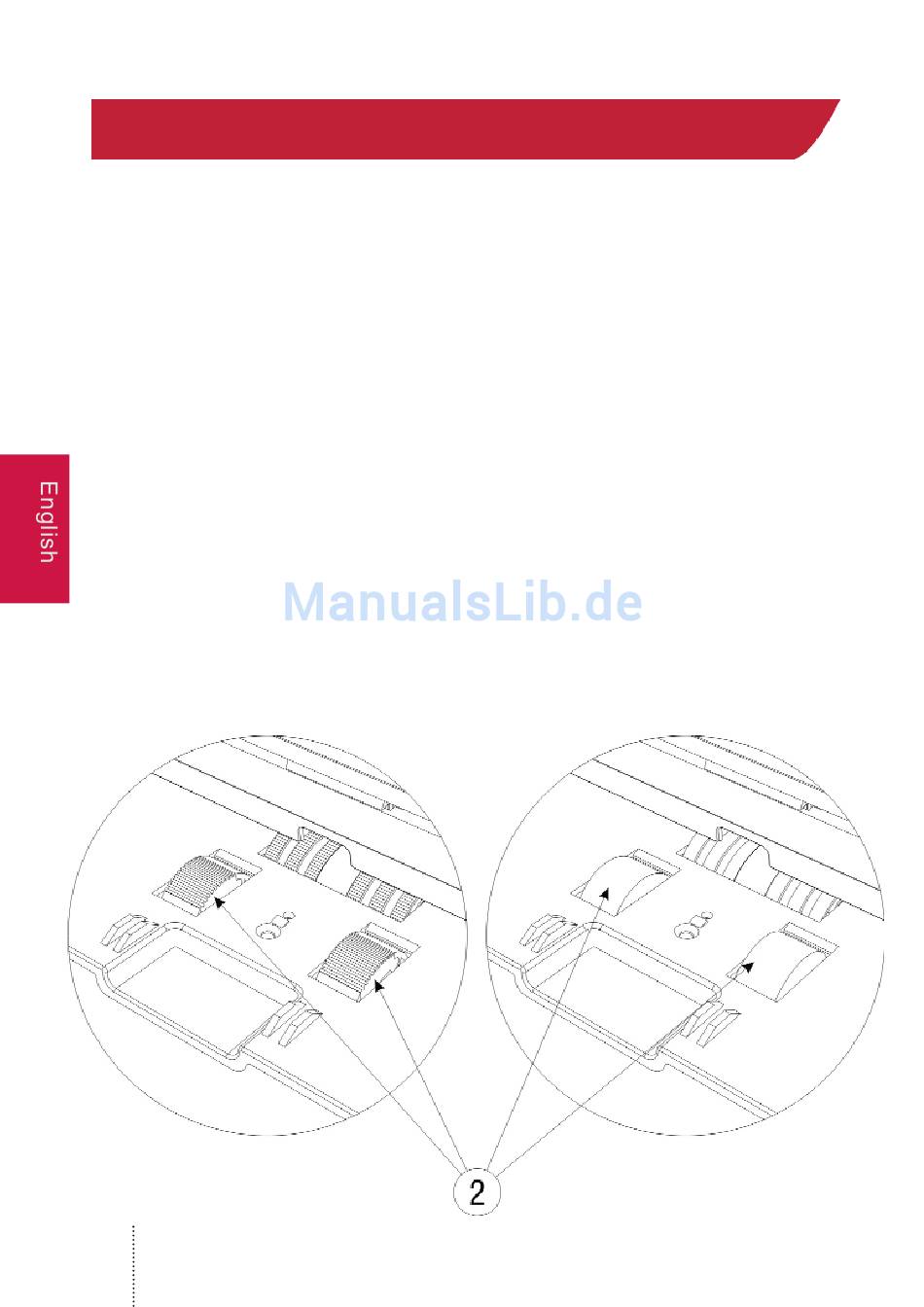

3. To properly set up the kicker rollers (Figure B, position 2) and feed rollers as shown
in Figure B (smooth side facing you, with ribbed lining out of sight), turn the kicker rollers
(Figure B, position 2) so that they will set to the position as shown in figure B.
CORRECT
INCORRECT
Fig A
Fig B
