Settings Adjustment - PRO Intellect Technology PRO MAC Gebrauchsanweisung

3. Set the face value 500 in advance and put 10 pieces of 500 EUR banknotes in the
counter. Upon termination of counting there is the sum of all face values in the right top
corner of the display, as soon as you have removed banknotes from stacker.

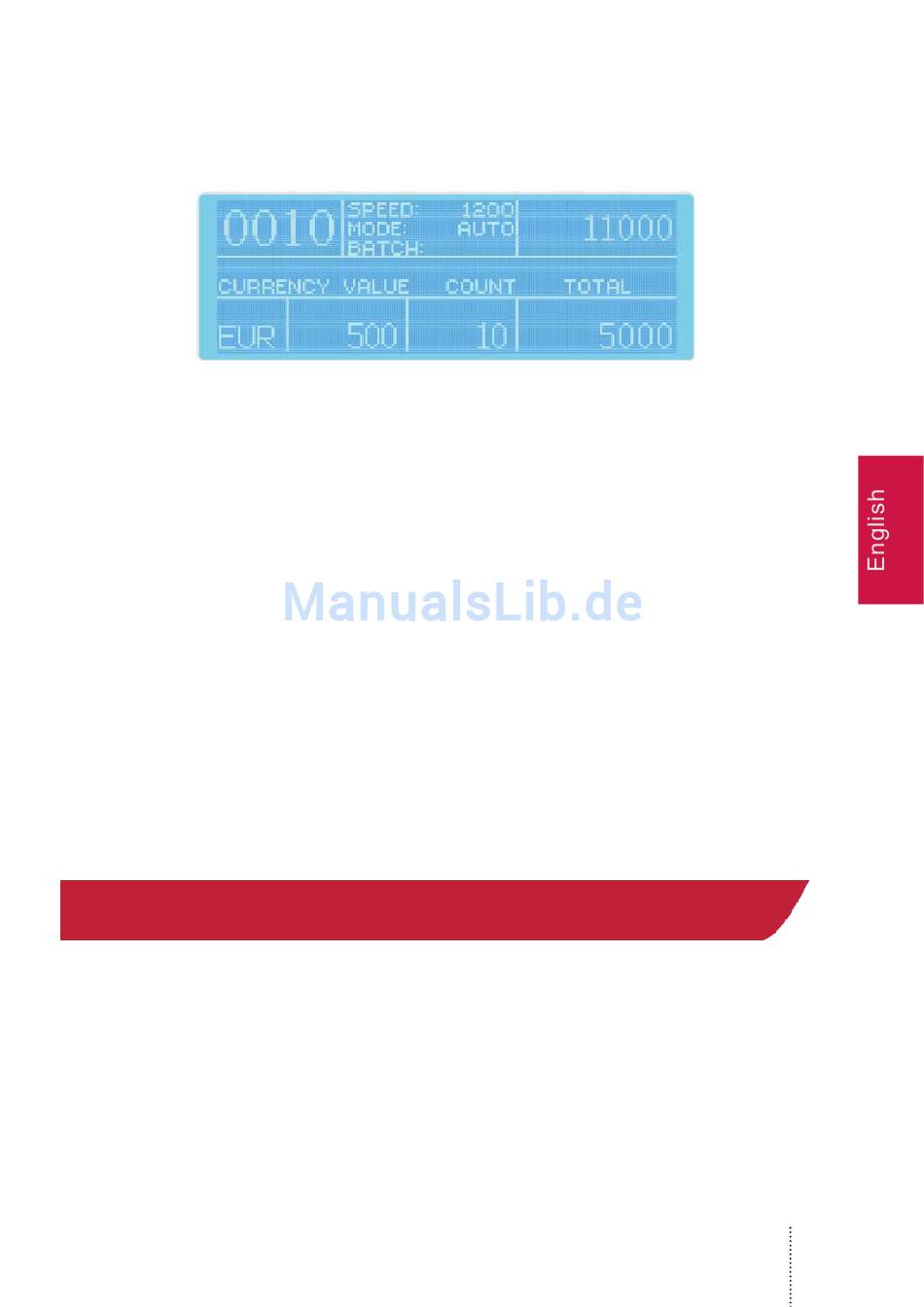

(see the picture below):
If counting is finished, then keep the "CLEAR" button for some seconds till value
becomes to "0" in the right top corner . If you press once the "CLEAR" button you
will remove counting of current face value (if there is an error message it is possi-
ble to remove results of counting only at this face value) keeping counting results
of other face values.
The note: In the left top corner the quantity of the counted banknotes is displayed.
(as by the usual counter)
7.3 Packing mode.
- By the «BATCH» button set on the batching display the necessary number of ban-
knotes that need to be counted. To change it press the button «+1».
- Repeat this operation as it is on p. 7.1 Remove the counted banknotes from the
stacker.
-As soon as there will be no banknotes in a hopper, add more banknotes, if it's nec-
essary, and continue the counting.
- If during the counting appears the error message, repeat the counting one more
time, as it's shown on p.7.1
8

Settings adjustment

There is the request to pay special attention for this section, it will help you to avoid
an counting errors during the further work with the counter.
To enter the "Settings change" mode it is necessary to dial number "107" on the
display of the "Batch" mode and press the "START" button . After that the mode
of detecting's settings will be displayed:
23
