THE FOLLOWING MUST BE PROVIDED BY THE CUSTOMER
ELECTRICAL INSTALLATION
Electrical connections may only be carried out by an officially certified electrician.
This device is of protection class 1 and must be permanently connected to a fixed
conductor. The installation regulations of the local electricity board as well as the
provisions of DIN-57100 and VDE 0100 Part 701 must be strictly adhered to.
The incoming line (PVC-sheathed cable H05VV-F3 G1.5), must be connected through an
earth leakage circuit breaker (25A 230V~ nominal tripping current = 30 mA) and fused
over all poles with an automatic circuit-breaker. It must also be possible to interrupt this
circuit with an all-pole switch with at least 3 mm contact gap and a pilot lamp. Parts
containing active parts, except parts supplied with a safety extra-low voltage of up to 12V,
must be inaccessible for persons in the bathroom. The steam generator may only be
opened by a person authorised by DUSAR. Provide equipotential bonding and connect to
the steam bath.
Caution! Observe protection zone. No separate moisture or steam producing
equipment may be used in the shower.
WATER CONNECTION
- The water connection may only be established by a certified and authorised dealer.
- water pressure max. 4 bar
- working pressure approx. 3 bar
BEFORE PUTTING THE STEAM SHOWER INTO OPERATION
1. Caution! before putting into operation check all connections and siphons for
leaks.
2. The steam shower must be permanently connected to a fixed line (see electrical
installation)
3. Move the steam cabin into the required position and connect up drain connections,
as well as water inflow hoses for the shower to the domestic water supply and
drain connections using flexible hoses [Fig. A].
4. The water inflow for hot and cold water should be connected using 2 shut-off
valves .
b. c.
5. Open the shut-off valves for hot and cold water
PUTTING THE STEAM GENERATOR INTO OPERATION
The steam generator may only be put into operation after all connections have been
established!
The following order must be adhered to:
f.
1. Turn on the master switch
2. Turn the three-way valve to the "Steam operation
Then set the thermostat to "Cold" [Fig. B].
3. Press the pushbutton L3
4. After a rinsing programme of approx. 3 minutes, the water inflow starts up
automatically through the water inflow valve V2.
5 The steam development begins after a heating-up period of approx. 5 min.
Caution! Avoid the area in the immediate vicinity of the steam outlet
nozzles; risk of scalding
6. For reasons of safety, the steam generator switches itself off after the preset period
of time, and a new rinsing programme starts. If you wish to continue your steam
bath, the pushbutton must be pressed, depending on the original setting. The
steam generator is then ready for operation again.
7. When you have finished your steam bath or shower, we also recommend that
you close the shut-off valve for cold and hot water
8. Turn off the master switch after every steam bath
IN THE EVENT OF A MALFUNCTION
- If a fault is detected, switch off the steam generator and the master switch.
Close the shut-off valve for cold and hot water, and have the fault rectified
by the after-sales service or an authorised dealer.
- Never carry out repairs to the steam generator yourself!
- Any descaling residues may be removed by turning the drainage valve V1 as shown
in [Fig. B].
P
UTTING THE STEAM GENERATOR INTO OPERATION
e.
.
[Fig. A].
" setting.
(see also Page 24).
.
e.
[Fig. A].
f.
TECHNICAL DATA
Water capacity.......................... approx. 0.6 l
Working pressure..................... 0 bar
Output...................................... 2.5 kW
Nominal voltage....................... 230 V
Frequency................................ 50 / 60 Hz
Power consumption.................. max. 11.5 A
Line protection provided............. 16 A
Steam bath temperature............. approx. 43°
Steam time.............................. approx. 50 min.
Heating-up time........................ approx. 5 min.
f. .

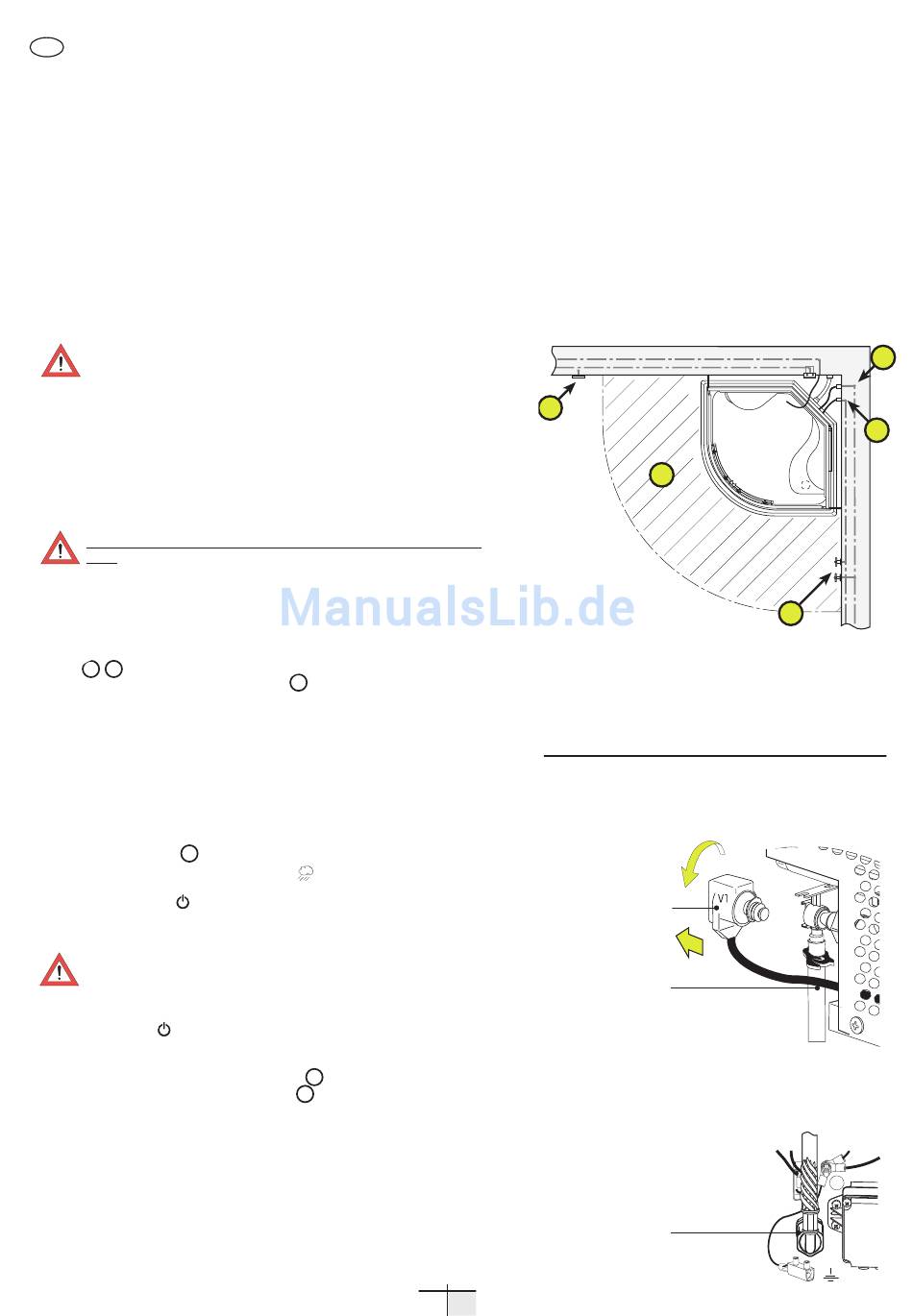

[Fig. A]
(b) Connection 1/2" hot
(c) Connection 1/2" cold
(d) Protection zone approx. 600 mm
(e) Shut-off cock min. 15 mm pipe connection
(f) Master switch with pilot lamp 2-pin
[Fig.B]
V1 drainage valve
Drainage line
V2 Water inflow valve
