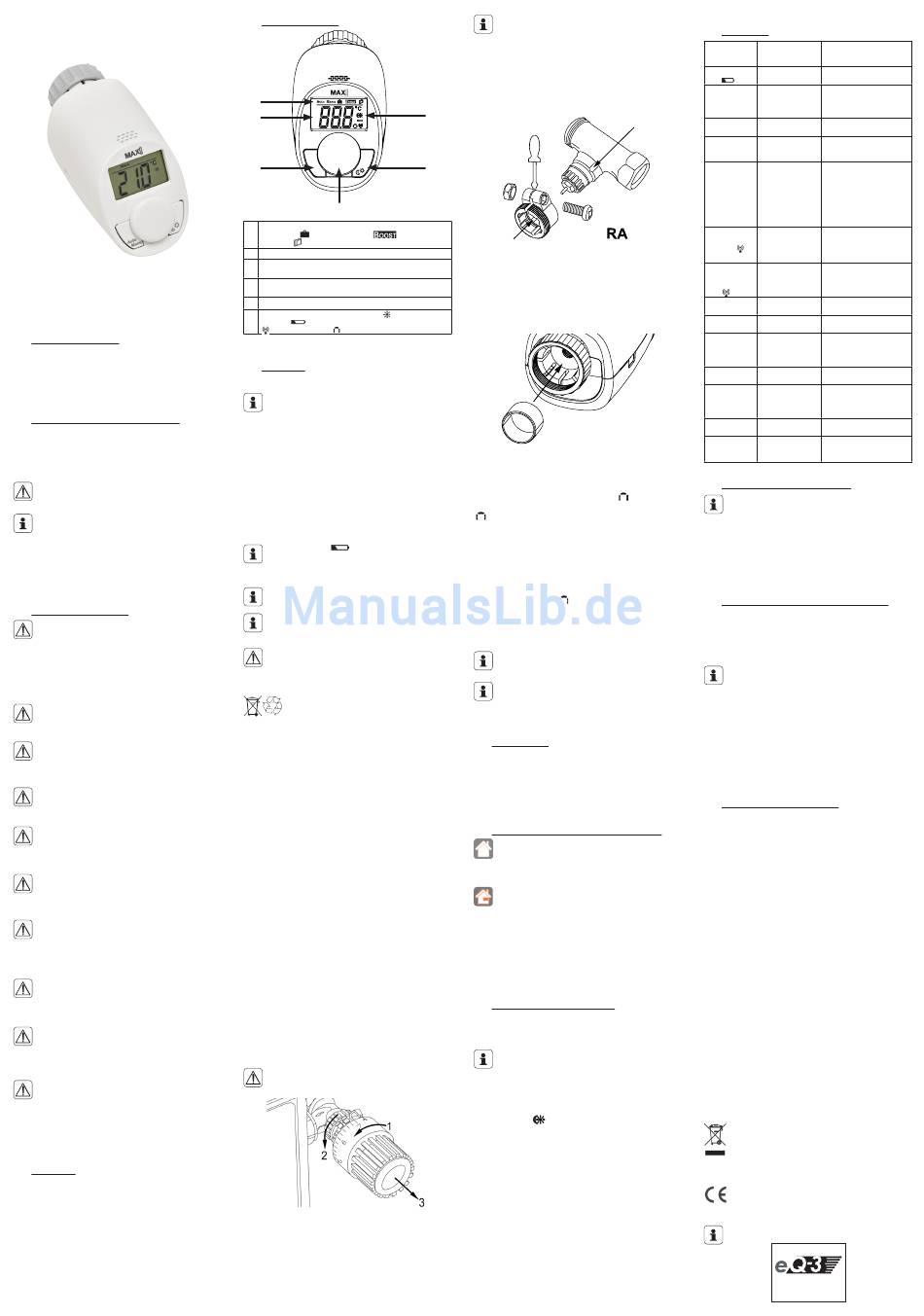

Brief instruction
MAX! Radiator Thermostat basic
1st English edition 04/2015
Documentation © 2015 eQ-3 AG, Germany
All rights reserved.
Translation from the original version in German.
BC-RT-TRX-CyN, V1.0, 141891
1 p
ackage contentS
1x MAX! Radiator Thermostat basic, 1x adapter Danfoss RA,
1x cylinder head screw M4 x 12 mm, nut M4, 1x support ring,
2x LR6/mignon/AA batteries, 3x brief instructions in Ger-
man/English, French/Dutch and Polish/Italian
2 i
nformation aBout thiS manual
Read this manual carefully before starting to use the device.
Keep the manual for later consultation. If you hand over the
device to other persons for use, please hand over this brief
instruction as well.
Symbols used:
Attention!
This indicates a hazard.
Note.
This section contains important additional infor-
mation!
A detailed operating manual with further information on
starting up the device and a comprehensive system over-
view are available for download via the MAX! Portal.
3 S
afety inStructionS
We do not assume any liability for damage to prop-
erty or personal injury caused by improper use or the
failure to observe the safety instructions. In such
cases, any claim under warranty is extinguished! For
consequential damages, we assume no liability! Es-
pecially observe the safety and handling instructions
in chapter "6.2 Installation on the radiator" and the
following.
Do not open the device. It does not contain any parts
that can be maintained by the user. In the event of an
error, have the device checked by an expert.
Do not use the device if there are signs of damage to
the housing or control elements, for example, or if it
demonstrates a malfunction. If you have any doubts,
please have the device checked by an expert.
For safety and licensing reasons (CE), unauthorized
change and/or modification of the product is not per-
mitted.
The device may only be operated indoors and must
be protected from the effects of moisture, vibrations,
solar or other methods of heat radiation, cold and
mechanical loads.
The device is not a toy; do not allow children to play
with it. Do not leave packaging material lying around,
plastic films/bags, pieces of polystyrene etc., can be
dangerous in the hands of a child.
The system is only suitable for control of heaters (ra-
diators, convection heaters, heater bars) heated by
heat carriers. Any other use, e.g. on cooling systems,
in-floor heating, etc., is not permitted and can lead
to severe damages.
If a long boost duration and a large valve opening have
been set the radiator can get very hot. After chang-
ing the factory setting check that the radiator is not
heated excessively.
Use a dry linen cloth to clean the device. If the device
is particularly dirty, you can slightly dampen the cloth
to clean it. Do not use any detergents containing sol-
vents for cleaning purposes. Make sure that no mois-
ture will ingress into the housing.
Using this device for any purpose other than that de-
scribed in this operating manual does not fall within
the scope of intended use and shall invalidate any
warranty or liability. This also applies to any conver-
sion or modification work. The device is intended for
private use only.
4 f
unction
The MAX! Radiator Thermostat basic is responsible for reg-
ulating the radiators within the MAX! system. During venti-
lation, the MAX! Radiator Thermostat automatically reduces
the temperature in a room in order to save on energy costs.
Communication between the MAX! components is bidirec-
tional. This ensures that the information sent reaches the
recipient. The configuration of the MAX! Radiator Ther-
mostat depends on the system variant used. You will find
further information in the detailed operating manual of
the MAX! Radiator Thermostat as well as in the MAX! sys-
tem overview, available for download via the MAX! Portal.
5 d
evice overvieW
A
B
C
Auto
Manu
D
A Automatic mode (Auto), manual mode (Manu), holi-
day mode ( ), boost function ( ), open window
function ( )
B Display of setpoint temperature
C Auto/Manu button, switch between automatic and
manual mode, exit the holiday mode
D Control wheel: Temperature settings, activate the
boost function, confirm, start teach-in procedure
E
Switch between reduction and comfort temperature
F Reduction/comfort temperature ( ), empty battery
symbol ( ), antenna symbol (radio synchronicity),
( ), activity symbol ( )
6 S -
tart up
6.1 i ( )
nSerting replacing BatterieS
In the initial state, the batteries are already inserted.
Simply remove the insulation strip.
To replace the batteries, please proceed as follows:
• Press the battery compartment cover on both sides with
your fingers and remove the cover by pushing it downwards.
• Insert 2 new LR6/mignon/AA (1.5 V) batteries in the battery
compartment, making sure they are the right way round.
• Reattach the battery compartment cover and latch it
into place.
After inserting batteries, the radiator thermostat has to be
mounted on the radiator (see sec. „6.2 Installation on the
radiator"). The radiator thermostat starts an adapting run
afterwards (see sec. „6.3 Adaption run").
A battery symbol ( ) on the display indicates that
the batteries need to be replaced. After removing the
empty batteries, wait approx. 1 minute before insert-
ing the new ones.
The service life of new alkaline batteries is approxi-
mately two years.
Operation with rechargeable batteries is not possi-
ble.
Never recharge standard batteries. Do not throw the
batteries into a fire. Do not expose batteries to ex-
cessive heat. Do not short-circuit batteries. Doing so
will present a risk of explosion.
Used batteries should not be disposed of with
regular domestic waste! Instead, take them to
your local battery disposal point.
6.2 i
nStallation on the radiator
The MAX! Radiator Thermostat is easy to install and can be
done without draining heating water or intervening in the
heating system. No special tools are required, nor does the
heating have to be switched off.
The union nut attached to the radiator thermostat can be
used universally and without accessories for all valves with
a thread size of M30 x 1.5 from the most popular manufac-
turers such as Heimeier, MNG, Junkers, Landis+Gyr (Du-
odyr), Honeywell-Braukmann, Oventrop, Schlösser, Comap,
Valf Sanayii, Mertik Maxitrol, Watts, Wingenroth (Wiroflex),
R.B.M, Tiemme, Jaga, Siemens or Idmar.
By means of the adapter in the delivery, the device can also
be installed on radiator valves of type Danfoss RA.
6.2.1 Removing the old dial
Rotate the thermostat dial to the maximum value (1) (an-
ti-clockwise). The thermostat dial then no longer presses
against the valve spindle, making it easier to remove.
There are different ways of fixing the position of the ther-
mostat dial:
• Union nut: Unscrew the union nut in an anticlockwise di-
rection (2). The thermostat head can then be removed (3).
• Snap-on fastenings: Thermostat dials that have been at-
tached using this method can be easily released by giving
the lock/union nut a slight turn in the anticlockwise di-
rection (2). The thermostat head can then be removed (3).
• Compression fitting: The thermostat dial is held in place
by a mounting ring which is held together with a screw.
Loosen this screw and remove the thermostat head from
the valve (3).
• Threaded connection with set screw: Loosen the set screw
and remove the thermostat head (3).
In case of visible damage of the existing radiator,
valve or heating pipes, please consult a specialist.
6.2.2 Danfoss RA adapter
The provided adapter is required for installation on Dan-
foss RA valves.
The Danfoss valve bodies have elongated notches (G) around
their circumference (see arrow), which also ensure that the
adaptor is properly seated when it snaps on.
During installation, please ensure that the pins in-
side the adapter (H) are lined up with the notches (G)
on the valve.
The RA adapter has been manufactured with pre-tension
in order to provide a better seat. Use a screwdriver during
installation if necessary, and bend it open slightly in the
vicinity of the screw. Ensure that the adapter is properly
clipped on. After clipping onto the valve body, please attach
the adapter using the provided screw and nut.
F
E
H
6.2.3 Support ring
The valves from different manufacturers may have toler-
ance fluctuations that make the radiator thermostat more
loosely seated on the valve. In this case, the provided sup-
port ring (I) should be placed into the flange before mount-
ing the radiator thermostat.
I
6.3 a
daption run
Once the batteries have been inserted, the motor reserves.
Meanwhile, "InS" and the activity symbol (
As soon as "InS" is displayed without the activity symbol
( ), the radiator thermostat can be mounted. This is fol-
lowed by an adapting run ("AdA") to adapt the thermostat
to the valve.
• Attach the radiator thermostat to the valve (see sec.
„6.2 Installation on the radiator").
• Tighten the union nut.
• Press the control wheel shortly when "InS" is displayed.
Now the radiator thermostat performs an adapting run. "AdA"
and the activity symbol ( ) are displayed; during this time,
operation is not possible. If the adapter run has been initi-
ated prior to mounting or if an error message (F1, F2, F3) is
displayed, press the control wheel; the motor reverses to
the "InS" position.
Teach-in mode can be activated even whilst "InS" is
still displayed.
If the MAX! Radiator Thermostat has not been taught-
in to a MAX! Cube or Wall Thermostat+, the device
automatically switches to manual operation (Manu).
7 t -
eaching in
In order to be able to use the MAX! Radiator Thermostat in
your installation, you must teach it in to the other MAX! de-
vices first. Further information about teaching-in the MAX!
Radiator Thermostat can be found in the detailed operating
manual available online for download via the MAX! Portal.
8 c maX!
onfiguration of the
If you use the MAX! Radiator Thermostat in the MAX!
House solution, you can individually change all set-
tings of your MAX! system (e.g. configuration of week
programs) via the MAX! software.
If you use the MAX! Radiator Thermostat in the MAX!
Room solution, you can individually change all set-
tings of your MAX! system (e.g. configuration of week
programs) via the MAX! Wall Thermostat+.
Further information about adjusting the settings of the
MAX! Radiator Thermostat can be found in the detailed
operating manual available online for download via the
MAX! Portal.
9 r
eStore factory SettingS
The factory settings of the MAX! Radiator Thermostat can
be restored manually. Restoring the factory settings de-
letes all settings and information about taught-in devices.
Before restoring the factory settings of the MAX! Ra-
diator Thermostat, first delete the device from the
local MAX! software if you use the radiator thermo-
stat in connection with a MAX! Cube.
• Remove the batteries from the MAX! Radiator Thermostat.
• Press and hold down the Auto/Manu button, the control
wheel and the button at the same time while insert-
ing the batteries.
• Once the factory settings have been restored success-
fully, "rES" is displayed.
10 f
laShing SequenceS and tranSmiSSion
Behaviour
Error code Description/
on the dis- problem
play
Battery sym- Battery voltage
bol ( ) too low
F1 Valve drive
sluggish
F2 Actuating range
G
too wide
F3 Adjustment
range too small
F4 Device already
taught-in to a
MAX! Cube or
MAX! Wall Ther-
mostat+
Slowly flash- Connection to
ing antenna taught-in MAX!
symbol ( ) components
lost
dCE + quickly Duty cycle limit
flashing an- reached
tenna sym-
bol ( )
LOC Operating lock
activated
CAL Routine descal-
ing is active
Battery sym- Battery voltage
bol + F9 too low, valve
moved to error
position
Battery sym- Battery voltage
bol + 10 much too low
Syn Attempts to
synchronize
with known
MAX! devices
trd Transceiver
module defect
tSd Temperature
sensor defect or
out of range
11 m
aintenance and cleaning
) are displayed. The product does not require any maintenance. En-
list the help of an expert to carry out any repairs.
Clean the product using a soft, lint-free cloth that is
clean and dry. You may dampen the cloth a little with
lukewarm water in order to remove more stubborn
marks. Do not use any detergents containing sol-
vents, as they could corrode the plastic housing and
label.
12 i
nformation aBout radio operation
Radio transmission is performed on a non-exclusive trans-
mission path, which means that there is a possibility of in-
terference occurring. Interference can also be caused by
switching operations, electrical motors or defective elec-
trical devices.
The range of transmission within buildings can differ
greatly from that available in the open air. Besides
the transmitting power and the reception character-
istics of the receiver, environmental factors such as
humidity in the vicinity have an important role to play,
as do on-site structural/screening conditions.
eQ-3 AG hereby declares that this device complies with
the essential requirements and other relevant regulations
of Directive 1999/5/EC. You can find the full declaration of
conformity at www.eQ-3.de.
13 t
echnical SpecificationS
Device short description:
Supply voltage:
SyStem
Current consumption:
Battery life:
Display:
Radio frequency:
Typ. open area RF range:
Receiver category:
Duty cycle:
Method of operation:
Degree of protection:
Degree of pollution:
Ambient temperature:
Dimensions (W x H x D):
Weight:
Connection:
Linear travel:
Spring force:
Subject to technical changes.
Max. number of devices to be taught-in:
MAX! House solution
• max. 50 devices in max. 10 rooms,
• max. 4 MAX! Eco Switch
• per room max. 8 MAX! Radiator Thermostats , 8 MAX! Win-
dow Sensors and 1 MAX! Wall Thermostat +
MAX! Room solution:
• max. 1 MAX! Wall Thermostat +
• max. 8 MAX! Radiator Thermostats
• max. 8 MAX! Window Sensors
Do not dispose of the device with regular domestic
waste!
Electronic equipment must be disposed of at local
collection points for waste electronic equipment in
compliance with the Waste Electrical and Electronic
Equipment Directive.
The CE sign is a free trading sign addressed exclu-
sively to the authorities and does not include any
warranty of any properties.
For technical support, please contact your retailer.
Bevollmächtigter des Herstellers:
Manufacturer's authorised representative:
eQ-3 AG
Maiburger Straße 29
26789 Leer / GERMANY
www.eQ-3.de
Solution
Replace batteries
Check the installation;
check whether the pin
on the heating valve is
stuck
Check the fastening of
the actuator
Check the heating
valve; check whether
the valve pin is stuck
Make sure the device is
no longer taught-in to
the MAX! Cube (in the
software) or the Wall
Thermostat+ and per-
form a reset. Then you
can teach-in the device
again.
Check the power sup-
ply and the batteries of
taught-in MAX! com-
ponents
The device can resume
radio communication
after a waiting time of
approx. one hour
Deactivate the operat-
ing lock
Automatic function
Replace batteries of ra-
diator thermostat
Replace batteries of ra-
diator thermostat
-
Replace device
Replace device or op-
erate device in current
temperature range
BC-RT-TRX-CyN
2x 1.5 V LR6/mignon/AA
100 mA max.
2 years (typ.)
LCD
868.3 MHz
> 100 m
SRD category 2
< 1 % per h
Type 1
IP20
2
0 to 50 °C
55 x 60 x 102 mm
160 g (not incl. batteries)
M30 x 1.5 mm
4.2 mm
80 N (typ.)
