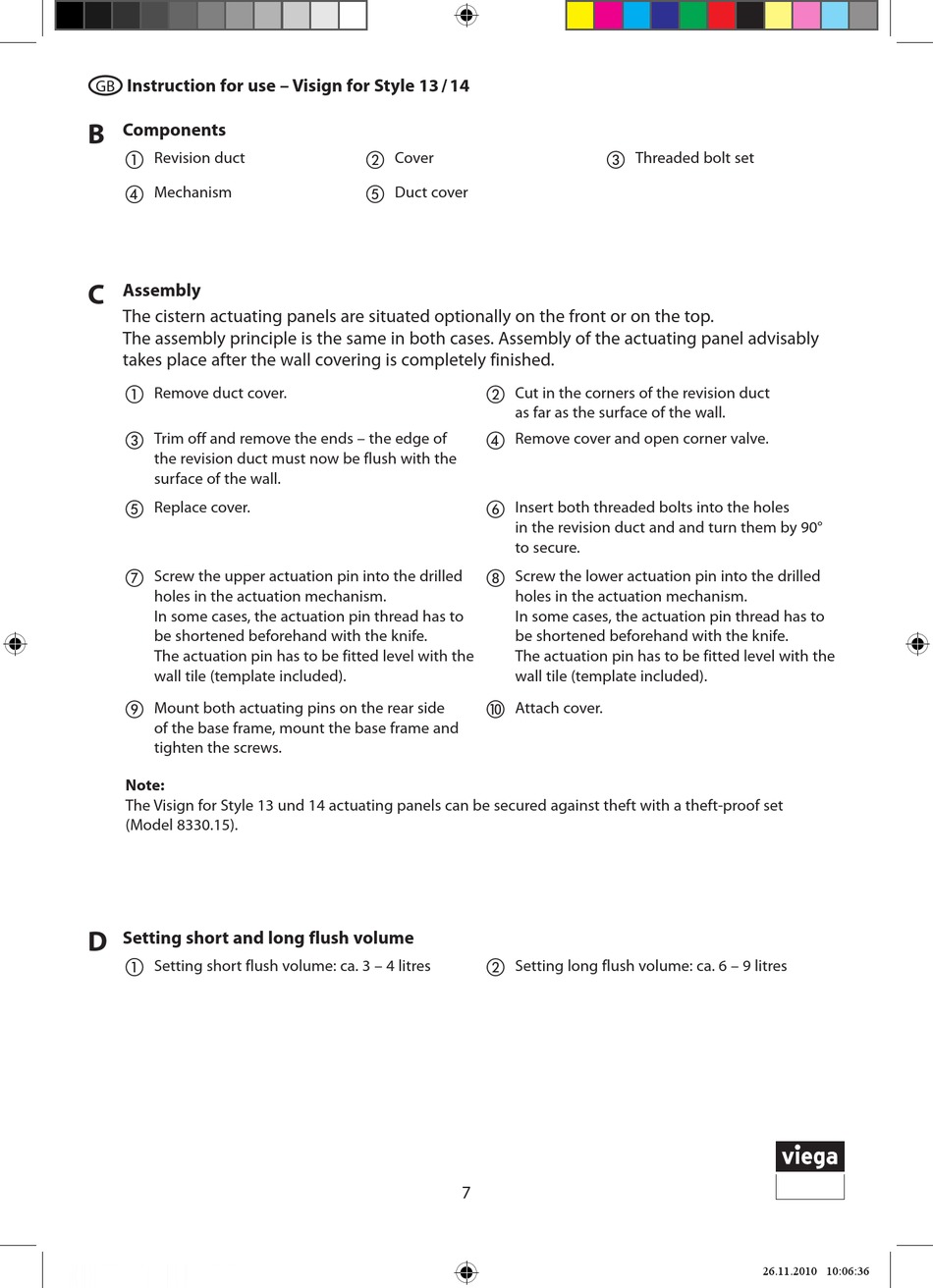

Instruction for use – Visign for Style 13 / 14
GB
B
Components
Revision duct
Mechanism
C
Assembly
The cistern actuating panels are situated optionally on the front or on the top.
The assembly principle is the same in both cases. Assembly of the actuating panel advisably
takes place after the wall covering is completely finished.
Remove duct cover.
Trim off and remove the ends – the edge of
the revision duct must now be flush with the
surface of the wall.
Replace cover.
Screw the upper actuation pin into the drilled
holes in the actuation mechanism.
In some cases, the actuation pin thread has to
be shortened beforehand with the knife.
The actuation pin has to be fitted level with the
wall tile (template included).
Mount both actuating pins on the rear side
of the base frame, mount the base frame and
tighten the screws.
Note:
The Visign for Style 13 und 14 actuating panels can be secured against theft with a theft-proof set
(Model 8330.15).
D
Setting short and long flush volume
Setting short flush volume: ca. 3 – 4 litres
521034_VisignfStyle13_14.indd 7
Cover
Duct cover
Cut in the corners of the revision duct
as far as the surface of the wall.
Remove cover and open corner valve.
Insert both threaded bolts into the holes
in the revision duct and and turn them by 90°
to secure.
Screw the lower actuation pin into the drilled
holes in the actuation mechanism.
In some cases, the actuation pin thread has to
be shortened beforehand with the knife.
The actuation pin has to be fitted level with the
wall tile (template included).
Attach cover.
Setting long flush volume: ca. 6 – 9 litres
7
Threaded bolt set
