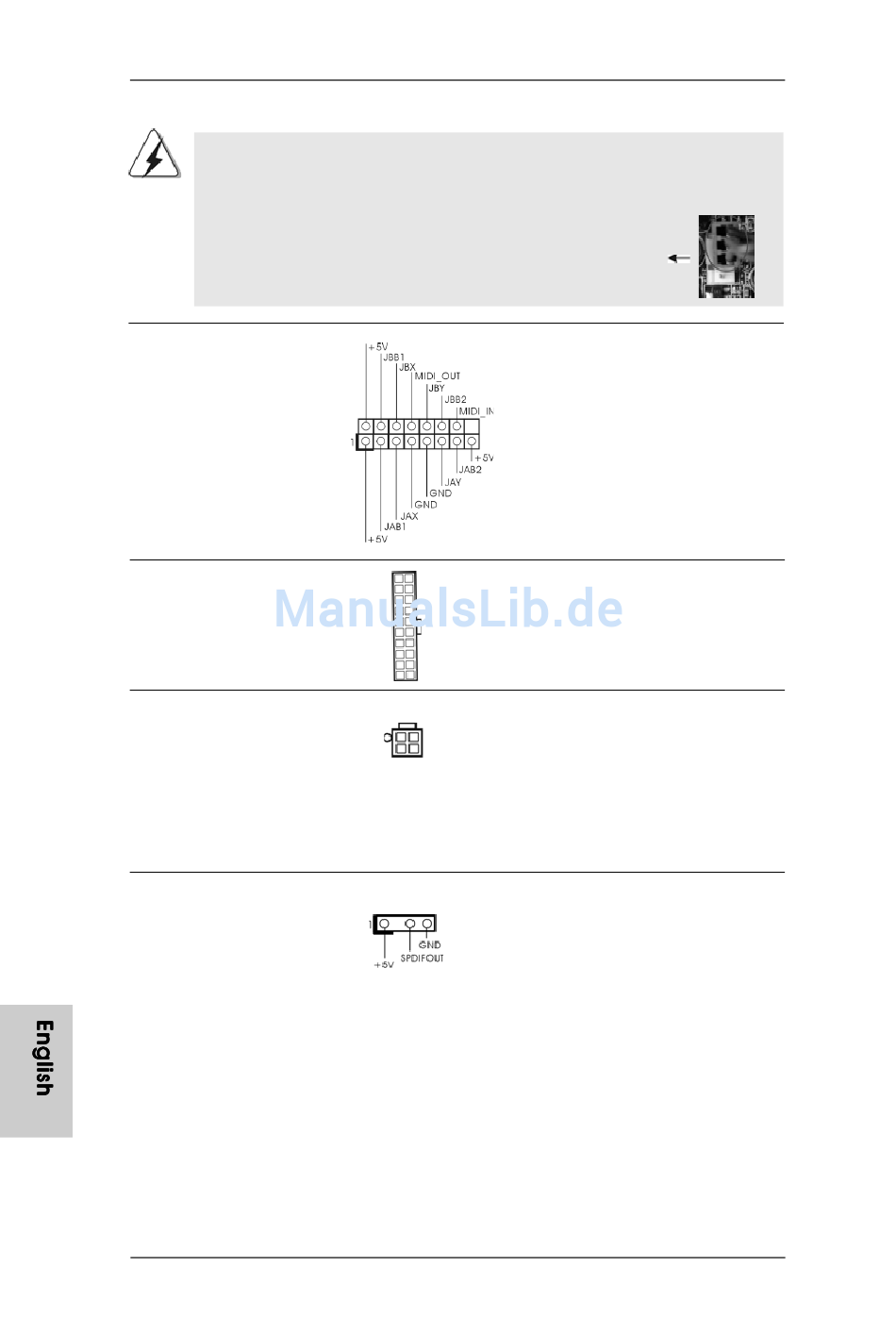

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
Game Connector
(15-pin GAME1)
(see p.2, No. 22)
ATX Power Connector
(20-pin ATXPWR1)
(see p.2, No. 29)
ATX 12V Connector
(4-pin ATX12V1)
(see p.2, No. 2)
HDMI_SPDIF Header
(3-pin HDMI_SPDIF1)
(see p.2 No. 23)
2 0 2 0 2 0 2 0 2 0
ASRock 4CoreDual-SATA2 Motherboard
Pin 1-3 Connected
3-Pin Fan Installation
Connect a Game cable to
connector if the Game port
bracket is installed.
Please connect an ATX power
supply to this connector.
Please note that it is necessary
to connect a power supply with
ATX 12V plug to this connector
so that it can provides sufficient
power. Failing to do so will cause
the failure to power up.
HDMI_SPDIF header, providing
SPDIF audio output to HDMI VGA
card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
