› Connect the output of your record player with the PHONO sockets.
› Connect the ground lead of your record player with the earth terminal GND at the back of the
amplifier.
› Should interference occur during playback, disconnect and retry.
These connection are suitabe only for connecting record players On no account
should line devives (CD players, radios etc) be connected here as this would disrupt
the phono input. Inproper use may result in damage to the loudspeaker or the am-
plifier

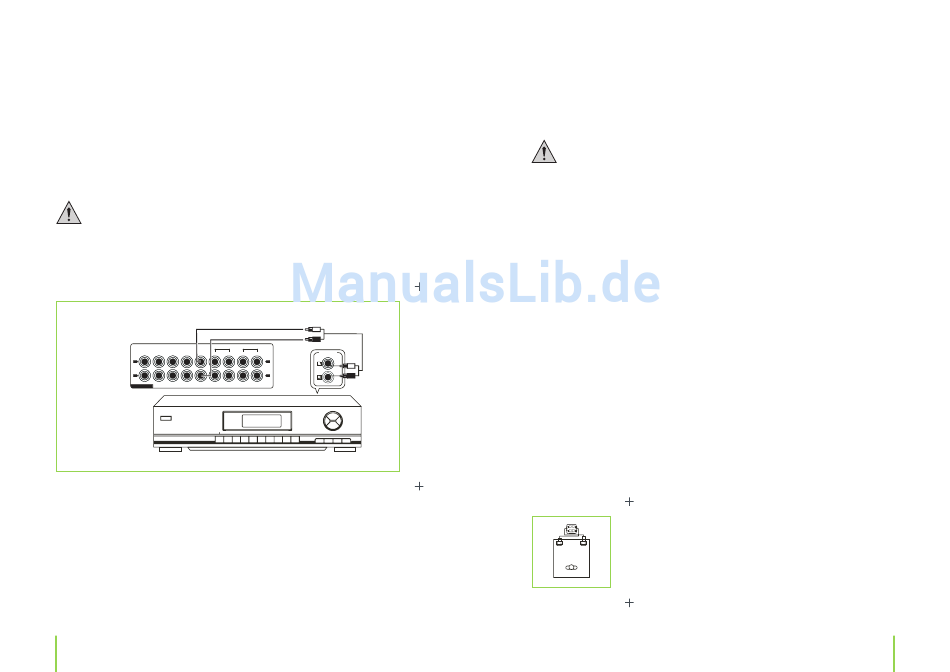

Radio
TA P E
P H O N O C D AV 1 A V 2 T U N E R P L A Y
L
R
AU D I O
› Connect the output of your radio with the TUNER sockets.
40 Chapter 4 Connection
E Q
OU T PU T
R E C P L A Y R E C
L
R

Connecting the loudspeaker outputs

The line towards the loudspeakers must be a bifilar cable. Insulate all connecting
terminals. Make sure that there are no sharp edges which could damage the cables.
Only use loudspeakers which have a sufficiently high loading capacity (see „Techni-
cal Data").
Connect the loudspeakers directly with the amplifier. Do not use headphone adap-
ters or distribution boxes. If you are unsure about anything, please contact a specia-
list.
Make sure that all loudspeakers have the correct polarity, i.e. the plus and minus
signs must match.
This amplifier has been built for a loudspeaker impedance from 6 to 8 ohm. Never
connect loudspeakers with a lower impedance. Only connect one loudspeaker to
each output.
› Connect the loudspeakers to the clamps marked with SPEAKERS (13).
› Connect the (+) pole of the left loudspeaker with the red speaker clamps marked with „LEFT+".
› Connect the (–) pole of the left loudspeaker with the black speaker clamps marked with „LEFT–".
› Connect the (+) pole of the right loudspeaker with the red speaker clamps marked with
„RIGHT+".
› Connect the (–) pole of the right loudspeaker with the black speaker clamps marked with
„RIGHT–".
R I G H T L E F T
L
_ _
SP E A K E RS 6 ~ 8
R
L
41
Chapter 4 Connection
